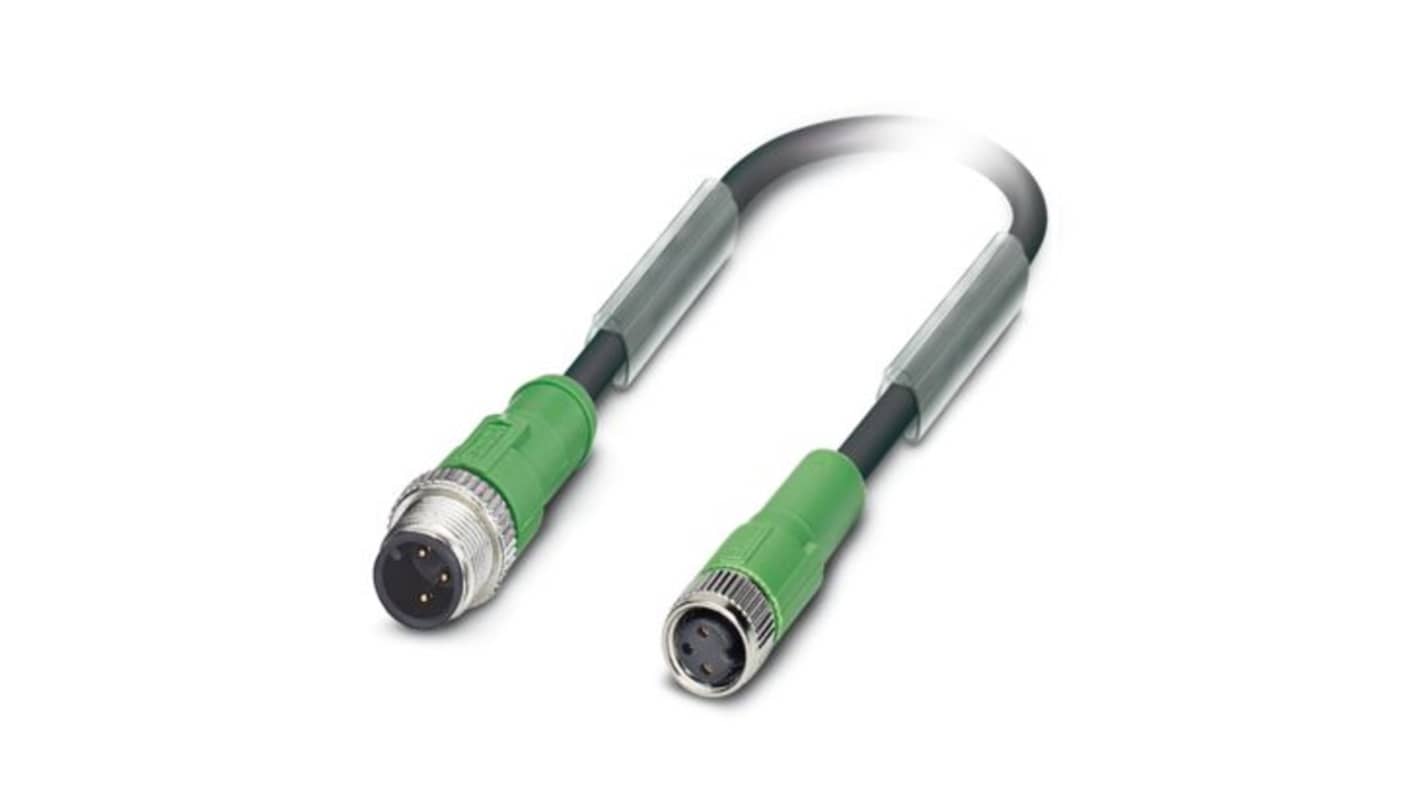

Phoenix Contact Straight Male 3 way M12 to Straight Female 3 way M8 Actuator/Sensor Cable, 1.5m
- RS Stock No.:
- 494-790
- Mfr. Part No.:
- 1415528
- Brand:
- Phoenix Contact
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 494-790
- Mfr. Part No.:
- 1415528
- Brand:
- Phoenix Contact
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | SAC | |
Number of Cores | 3 | |
Cross Sectional Area | 0.34 mm² | |
Length | 1.5m | |
Sheath Colour | Black | |
Sheath Material | Polyvinyl Chloride PVC | |
Connector 1 Number of Contacts | 3 | |
Connector 1 | M12 | |
Connector 1 Gender | Male | |
Connector 1 Orientation | Straight | |
Connector 2 Number of Contacts | 3 | |
Connector 2 Orientation | Straight | |
Connector 2 | M8 | |
Connector 2 Gender | Female | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Number of Cores 3 | ||
Cross Sectional Area 0.34 mm² | ||
Length 1.5m | ||
Sheath Colour Black | ||
Sheath Material Polyvinyl Chloride PVC | ||
Connector 1 Number of Contacts 3 | ||
Connector 1 M12 | ||
Connector 1 Gender Male | ||
Connector 1 Orientation Straight | ||
Connector 2 Number of Contacts 3 | ||
Connector 2 Orientation Straight | ||
Connector 2 M8 | ||
Connector 2 Gender Female | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Sensor And Actuator Cable is designed to meet the rigorous demands of industrial applications. Manufactured with high-quality PVC in a classic black finish (RAL 9005), this cable features a robust construction ideal for effective and reliable signal transmission. Designed for ease of use, it incorporates a straight plug connection for M12 and straight socket connection for M8, offering excellent compatibility across a range of devices.
Complies with industrial standards for safety and reliability
Environmentally friendly construction with low hazardous substance content
Effective for both flexible and fixed installation conditions
Environmentally friendly construction with low hazardous substance content
Effective for both flexible and fixed installation conditions
