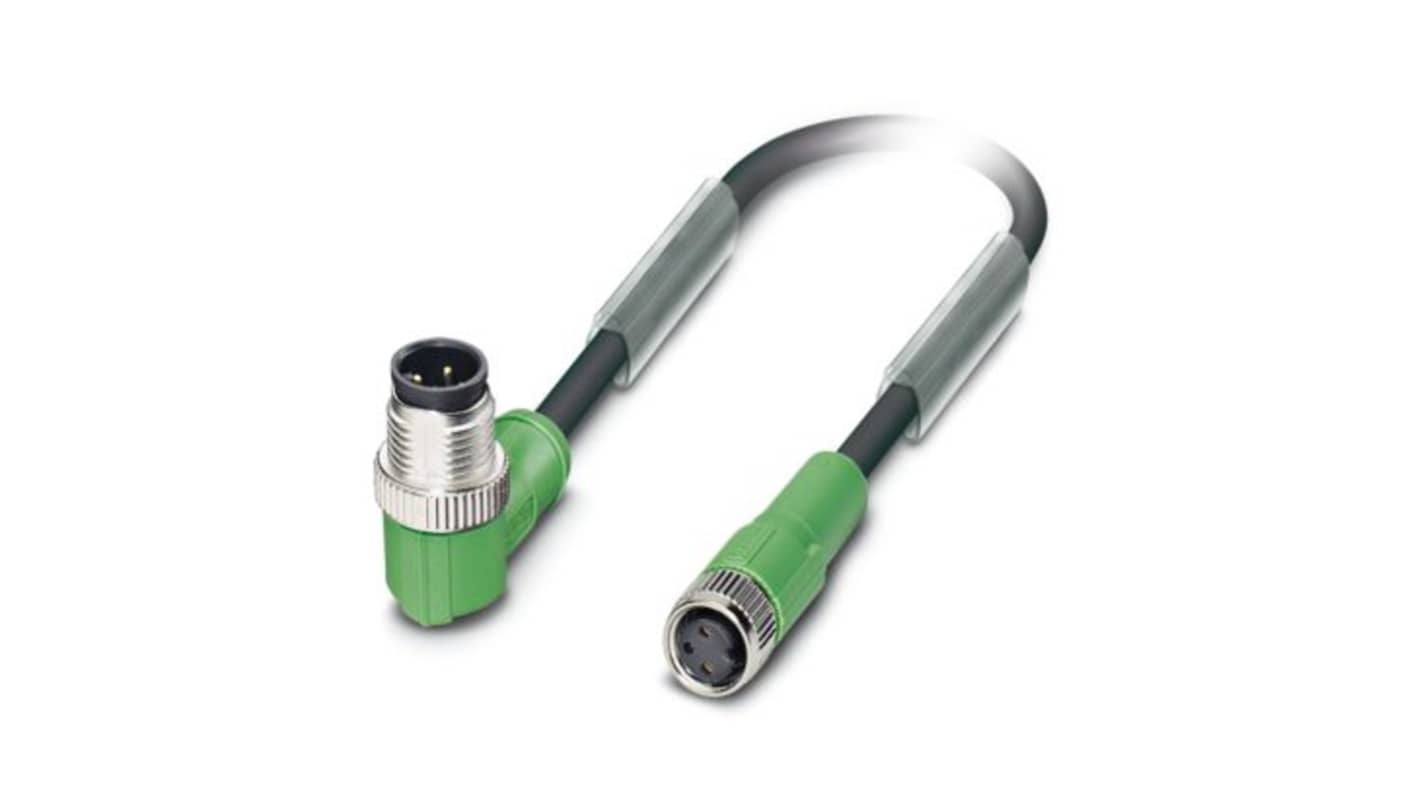

Phoenix Contact Right Angle Male 3 way M12 to Straight Female 3 way M8 Actuator/Sensor Cable, 300mm
- RS Stock No.:
- 519-127
- Mfr. Part No.:
- 1415534
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 519-127
- Mfr. Part No.:
- 1415534
- Brand:
- Phoenix Contact
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | SAC | |
Cross Sectional Area | 0.34 mm² | |
Number of Cores | 3 | |
Sheath Material | Polyvinyl Chloride PVC | |
Length | 300mm | |
Sheath Colour | Black | |
Connector 1 Number of Contacts | 3 | |
Connector 1 | M12 | |
Connector 1 Orientation | Right Angle | |
Connector 1 Gender | Male | |
Connector 2 Orientation | Straight | |
Connector 2 Number of Contacts | 3 | |
Connector 2 Gender | Female | |
Connector 2 | M8 | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 3 | ||
Sheath Material Polyvinyl Chloride PVC | ||
Length 300mm | ||
Sheath Colour Black | ||
Connector 1 Number of Contacts 3 | ||
Connector 1 M12 | ||
Connector 1 Orientation Right Angle | ||
Connector 1 Gender Male | ||
Connector 2 Orientation Straight | ||
Connector 2 Number of Contacts 3 | ||
Connector 2 Gender Female | ||
Connector 2 M8 | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Sensor And Actuator Cable is engineered to meet rigorous industrial standards, designed specifically for applications requiring reliable data transmission. Constructed from robust PVC, the cable delivers exceptional performance under varying environmental conditions, making it ideal for both static and dynamic installations. Its angled M12 plug and straight M8 socket provide versatile connectivity options, ensuring seamless integration into existing systems.
Rated for a wide operational temperature range ensuring adaptability
100% electrically tested for reliability and safety
IP67 and IP68 protection ratings provide superior ingress protection
Flame retardant materials ensure compliance with safety regulations
100% electrically tested for reliability and safety
IP67 and IP68 protection ratings provide superior ingress protection
Flame retardant materials ensure compliance with safety regulations
