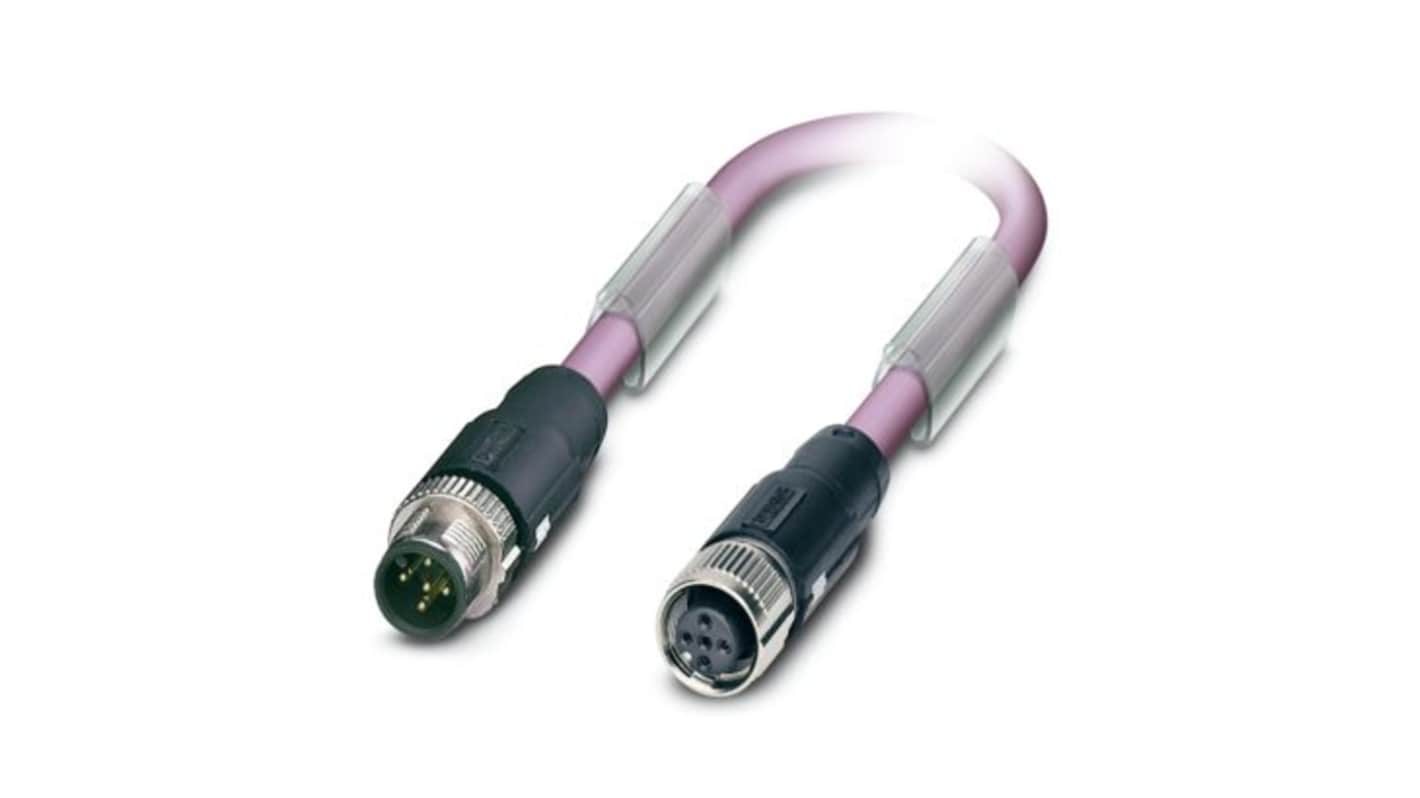

Phoenix Contact Straight Male 2 way M12 to Straight Female 2 way M12 Sensor Actuator Cable, 1m
- RS Stock No.:
- 488-120
- Mfr. Part No.:
- 1518122
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 488-120
- Mfr. Part No.:
- 1518122
- Brand:
- Phoenix Contact
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | SAC | |
Cross Sectional Area | 0.25 mm² | |
Number of Cores | 2 | |
Sheath Material | Polyurethane PUR | |
Length | 1m | |
Sheath Colour | Red lilac | |
Connector 1 | M12 | |
Connector 1 Orientation | Straight | |
Connector 1 Number of Contacts | 2 | |
Connector 1 Gender | Male | |
Connector 2 Number of Contacts | 2 | |
Connector 2 Gender | Female | |
Connector 2 Orientation | Straight | |
Connector 2 | M12 | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Cross Sectional Area 0.25 mm² | ||
Number of Cores 2 | ||
Sheath Material Polyurethane PUR | ||
Length 1m | ||
Sheath Colour Red lilac | ||
Connector 1 M12 | ||
Connector 1 Orientation Straight | ||
Connector 1 Number of Contacts 2 | ||
Connector 1 Gender Male | ||
Connector 2 Number of Contacts 2 | ||
Connector 2 Gender Female | ||
Connector 2 Orientation Straight | ||
Connector 2 M12 | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Bus System Cable is designed for seamless integration into PROFIBUS networks, delivering reliability and high speed data transmission at 12 Mbps. Built with halogen free materials and a robust design, the cable provides a shielded connection that is essential for environments with potential electromagnetic interference. Its straight M12 SPEEDCON connectors ensure quick and secure connections, while the cable's durability is enhanced by a flexible PUR outer sheath, making it suitable for various installation scenarios.
Shielded design minimises electromagnetic interference
Capable of operating across a wide temperature range
Designed for PROFIBUS applications to enhance automation processes
Lightweight design facilitates easier handling and installation
Capable of operating across a wide temperature range
Designed for PROFIBUS applications to enhance automation processes
Lightweight design facilitates easier handling and installation
