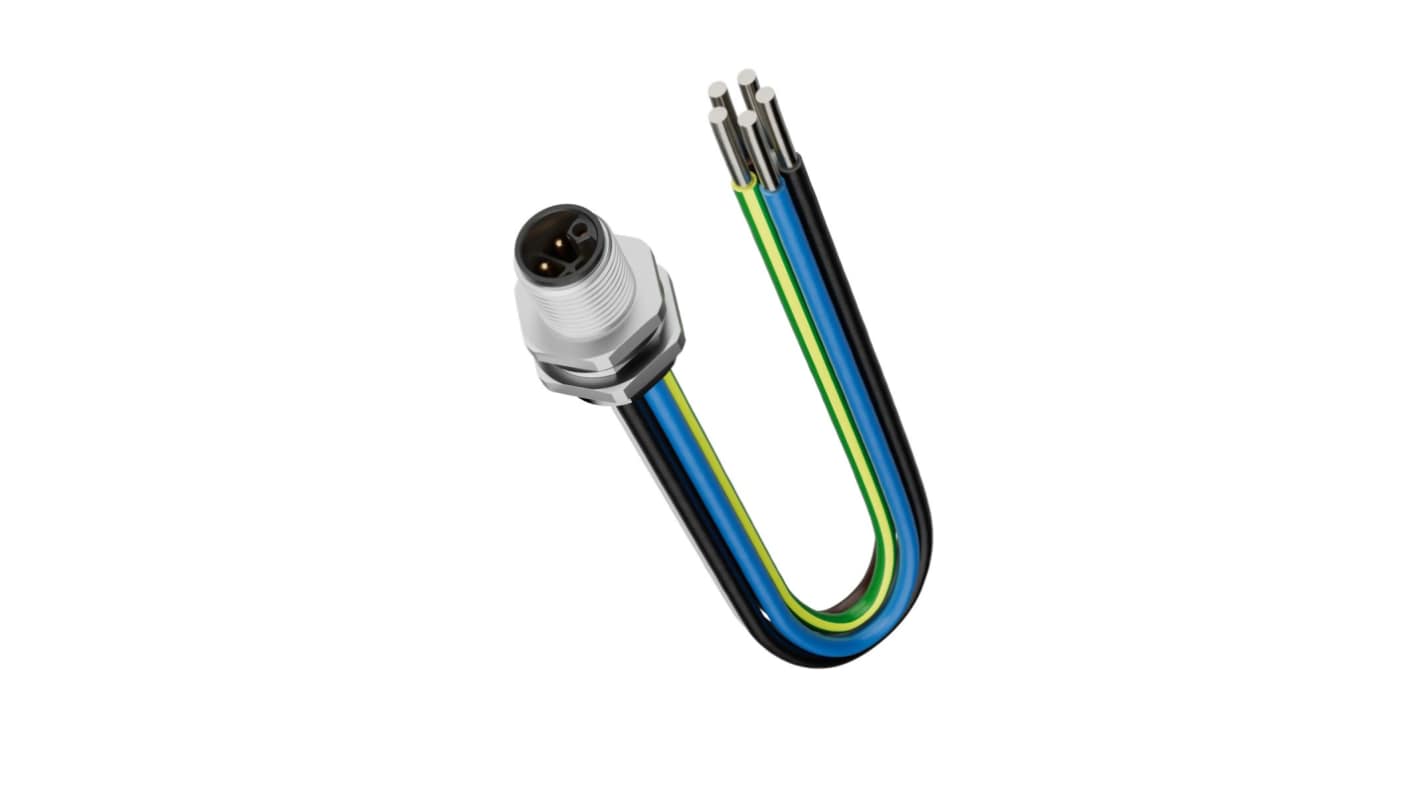

Lapp Male 5 way M12, Straight to Unterminated 5 way Unterminated Circular Connector, 0.5 m

View all Sensor & Actuator Cables
Bulk discount available
View bulk pricing options

Subtotal (1 unit)*

£15.58

(exc. VAT)

£18.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 9£15.58
10 +£14.34

*price indicative

Sponsored
Lapp Glands
Lapp Logo Alt
Shop our LAPP Glands
Ensure optimal performance and protection for your LAPP cable by pairing it with genuine LAPP cable glands. Engineered for a perfect fit, these glands provide secure strain relief, reliable sealing, and long-lasting durability—even in demanding industrial environments.
Shop here
RS Stock No.:
362-338
Mfr. Part No.:
381166913
Brand:
Lapp
Find similar products by selecting one or more attributes.
Select all

Brand

Lapp

Series

EPIC POWER M12

Product Type

Circular Connector

Cable Length

0.5m

Number of Contacts A

5

Connector Gender A

Male

Connector Type A

M12, Straight

Connector Gender B

Unterminated

Connector Type B

Unterminated

Number of Contacts B

5

Voltage

63V

IP Rating

IP67

Standards/Approvals

DIN EN 61076-2-111

Coding

L

COO (Country of Origin):
DE

Lapp EPIC POWER M12 Series Circular Connector, 63V Rated Voltage, IP67 Ingress Protection - 381166913


This circular connector delivers a robust connection for industrial power distribution where sealed, five-contact interfaces are required. It combines a male M12 straight plug with an unterminated cable tail, offering a compact, L-coded power link suitable for outdoor and harsh environments. The assembly supports low-voltage power applications and conforms to recognised connector standards for consistent interoperability.

Features and Benefits:


• Five contacts provide multi-conductor power transmission
• L-coding prevents mismating with signal connectors
• Rated to 63V for low-voltage power applications
• IP67 enclosure rating resists dust and temporary immersion
• Cable length 0.5m offers short-run connectivity
• Unterminated cable tail allows custom field wiring

Applications


• Suitable for distributed sensors requiring power supply
• Ideal for robotic end-effectors with quick disconnects
• Used with field junction boxes in machine panels
• Can be used for conveyor motor sensor power feeds
• Appropriate for outdoor control cabinet short links

What contact arrangement does it use for power distribution?


It employs a five-contact configuration that accommodates separate power lines and protective conductor arrangements within a single connector.

How does the connector prevent incorrect mating with other M12 types?


The L-coding physically aligns keyways so only compatible L-coded counterparts engage, avoiding cross-connection with A-, B- or other-coded M12 plugs.

What environmental conditions is the connector designed to withstand?


The construction achieves an IP67 protection level, protecting against ingress of dust and immersion in water to specified depths and durations.

Can the cable be terminated on-site for custom installations?


Yes, the cable is supplied unterminated to permit bespoke field termination methods such as crimping, soldering or screw-type terminations per installation requirements.
