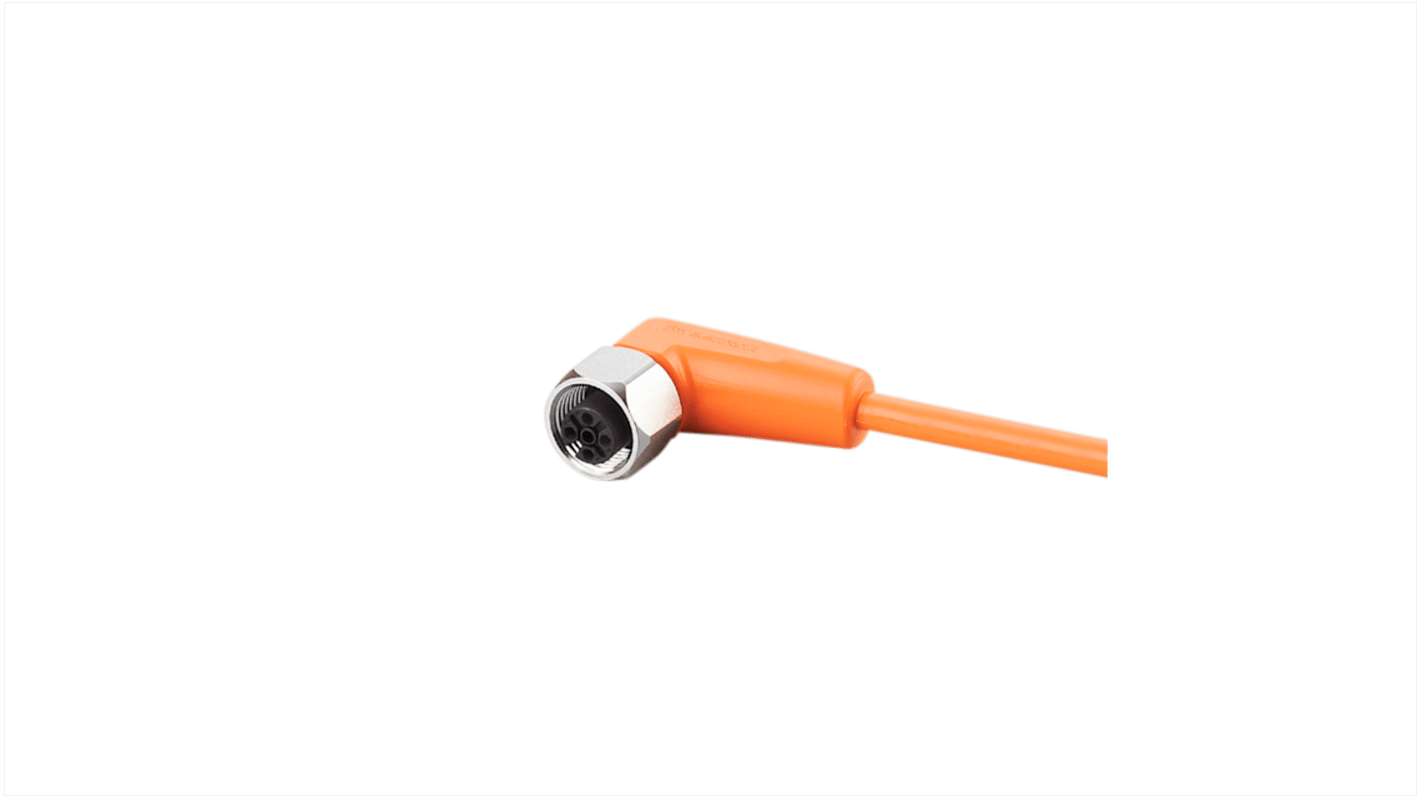

ifm electronic Right Angle Female 1 way M12 to Unterminated Sensor Actuator Cable, 5m
- RS Stock No.:
- 191-567
- Mfr. Part No.:
- EVT013
- Brand:
- ifm electronic
Subtotal (1 unit)*
£22.38
(exc. VAT)
£26.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 53 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £22.38 |
*price indicative
- RS Stock No.:
- 191-567
- Mfr. Part No.:
- EVT013
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Series | EVT | |
| Number of Cores | 5 | |
| Cross Sectional Area | 0.34 mm² | |
| Length | 5m | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Sheath Colour | Orange | |
| Connector 1 Gender | Female | |
| Connector 1 Number of Contacts | 1 | |
| Connector 1 Orientation | Right Angle | |
| Connector 1 | M12 | |
| Connector 2 | Unterminated | |
Select all | ||
|---|---|---|
Brand ifm electronic | ||
Series EVT | ||
Number of Cores 5 | ||
Cross Sectional Area 0.34 mm² | ||
Length 5m | ||
Sheath Material Polyvinyl Chloride PVC | ||
Sheath Colour Orange | ||
Connector 1 Gender Female | ||
Connector 1 Number of Contacts 1 | ||
Connector 1 Orientation Right Angle | ||
Connector 1 M12 | ||
Connector 2 Unterminated | ||
- COO (Country of Origin):
- PL
The ifm electronic connecting cable with socket is designed for optimal performance in hygienic and wet environments, particularly within the food industry. Engineered with a focus on practicality, it boasts gold-plated contacts that ensure reliable connections and longevity. The moulded body, made from durable PVC, is combined with stainless steel components for added robustness against corrosive elements. With exceptional dimensional and mechanical specifications, this product is not only designed to meet the demands of industrial applications but also surpasses expectations in terms of flexibility, featuring drag chain suitability. Its impressive temperature resistance renders it functional in a variety of settings, providing ultimate versatility for your installation needs.
For use in hygienic and wet areas in the food industry
Permanent and reliable sealing even when mounted without tools
Large operating temperature range and high protection rating
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction
Permanent and reliable sealing even when mounted without tools
Large operating temperature range and high protection rating
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction
