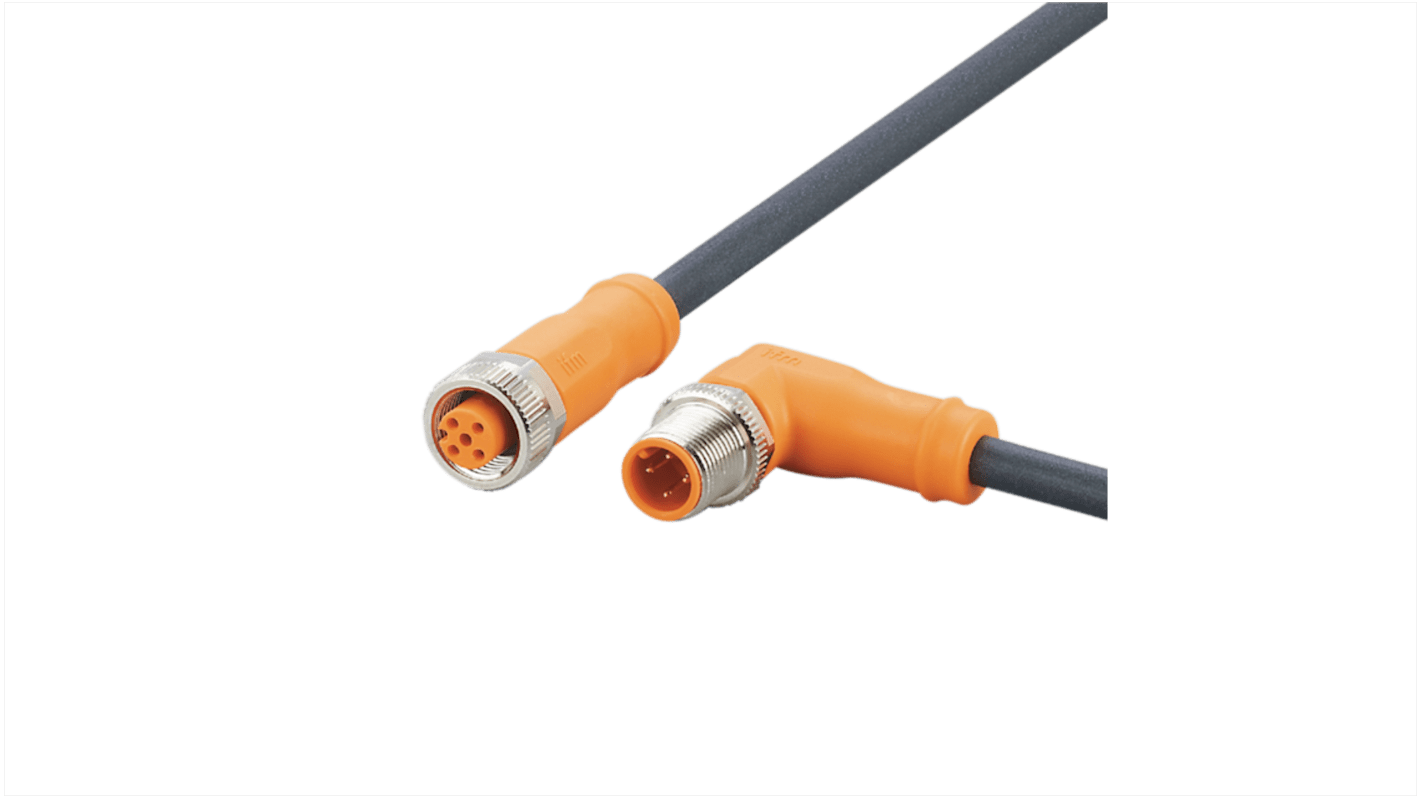

ifm electronic Right Angle Male 4 way M12 to Straight Female 5 way M12 Communication Cable, 250mm
- RS Stock No.:
- 189-638
- Mfr. Part No.:
- EVC730
- Brand:
- ifm electronic
Subtotal (1 unit)*
£21.00
(exc. VAT)
£25.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £21.00 |
*price indicative
- RS Stock No.:
- 189-638
- Mfr. Part No.:
- EVC730
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Series | EVC | |
| Cross Sectional Area | 1 mm² | |
| Number of Cores | 4 | |
| Sheath Colour | Black | |
| Length | 250mm | |
| Sheath Material | Polyurethane PUR | |
| Connector 1 Orientation | Right Angle | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 Gender | Male | |
| Connector 1 | M12 | |
| Connector 2 Gender | Female | |
| Connector 2 Orientation | Straight | |
| Connector 2 | M12 | |
| Connector 2 Number of Contacts | 5 | |
Select all | ||
|---|---|---|
Brand ifm electronic | ||
Series EVC | ||
Cross Sectional Area 1 mm² | ||
Number of Cores 4 | ||
Sheath Colour Black | ||
Length 250mm | ||
Sheath Material Polyurethane PUR | ||
Connector 1 Orientation Right Angle | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 Gender Male | ||
Connector 1 M12 | ||
Connector 2 Gender Female | ||
Connector 2 Orientation Straight | ||
Connector 2 M12 | ||
Connector 2 Number of Contacts 5 | ||
- COO (Country of Origin):
- PL
The ifm electronic compact and versatile connection cable is designed to meet the demanding specifications of modern industrial applications. With its robust construction, the product provides reliable performance in a range of environments, ensuring durability and longevity. The cable is not only free from silicone and halogen but also features gold-plated contacts for enhanced conductivity and resistance to corrosion. Its compatibility with drag chains makes it an excellent choice for dynamic applications, while its IP65/IP67/IP68/IP69K rating guarantees protection against dust and water ingress. For those requiring a trustworthy and efficient electrical connection, this connection cable is the definitive solution.
Large cable cross-section for reducing the voltage drop and transferring higher currents
Resistant to oils and coolants
Permanent and reliable sealing even when mounted without tools
Vibration and shock resistant thanks to coupling ring with locking me
Resistant to oils and coolants
Permanent and reliable sealing even when mounted without tools
Vibration and shock resistant thanks to coupling ring with locking me
