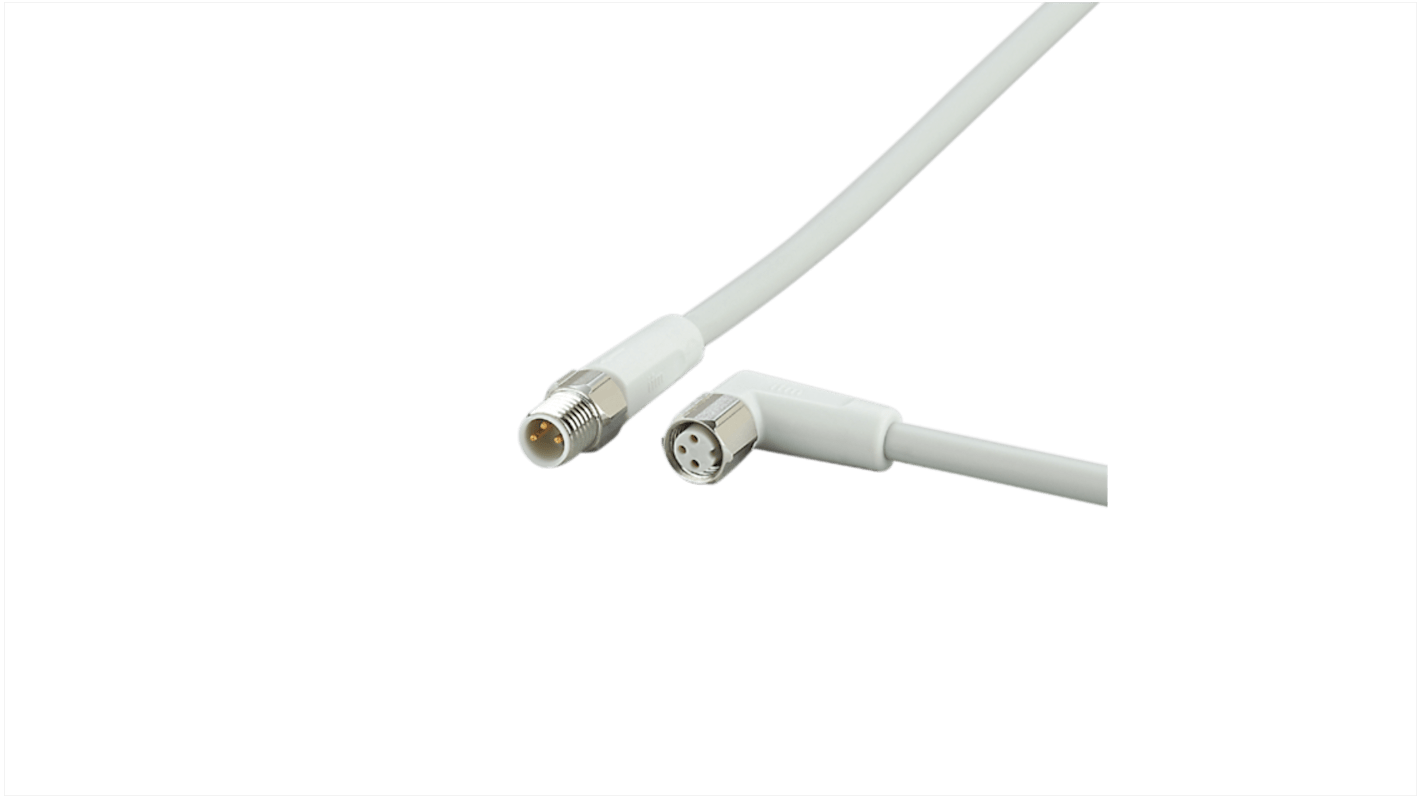

ifm electronic Straight Male 3 way M8 to Right Angle Female 3 way M8 Communication Cable, 300mm
- RS Stock No.:
- 189-157
- Mfr. Part No.:
- EVF148
- Brand:
- ifm electronic
Subtotal (1 unit)*
£29.81
(exc. VAT)
£35.77
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £29.81 |
*price indicative
- RS Stock No.:
- 189-157
- Mfr. Part No.:
- EVF148
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Series | EVF | |
| Cross Sectional Area | 0.34 mm² | |
| Number of Cores | 3 | |
| Sheath Material | Modified Polyphenylene Ether MPPE | |
| Sheath Colour | Grey | |
| Length | 300mm | |
| Connector 1 Gender | Male | |
| Connector 1 Orientation | Straight | |
| Connector 1 Number of Contacts | 3 | |
| Connector 1 | M8 | |
| Connector 2 Gender | Female | |
| Connector 2 Orientation | Right Angle | |
| Connector 2 Number of Contacts | 3 | |
| Connector 2 | M8 | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Series EVF | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 3 | ||
Sheath Material Modified Polyphenylene Ether MPPE | ||
Sheath Colour Grey | ||
Length 300mm | ||
Connector 1 Gender Male | ||
Connector 1 Orientation Straight | ||
Connector 1 Number of Contacts 3 | ||
Connector 1 M8 | ||
Connector 2 Gender Female | ||
Connector 2 Orientation Right Angle | ||
Connector 2 Number of Contacts 3 | ||
Connector 2 M8 | ||
- COO (Country of Origin):
- PL
The ifm electronic robust and versatile Connection cable addressed for hygienic and wet areas in the food industry is designed with innovative features to meet the requirements of challenging environments. Crafted with a focus on durability and reliability, the product boasts silicone-free and halogen-free materials, making it an ideal choice for sensitive applications. The connector is engineered for optimal performance, providing gold-plated contacts for enhanced conductivity and resilience. With an extensive range of approvals and a protection class that ensures safety, this solution stands out as a dependable option for industrial applications. Not to mention, its suitability for drag chains and impressive bending cycles allow for flexible use in varied operational settings, combining functionality with advanced engineering.
For use in hygienic and wet areas in the food industry
Permanent and reliable sealing even when mounted without tools
Large operating temperature range and high protection rating
Vibration and shock resistant thanks to coupling ring with locking mechan
Permanent and reliable sealing even when mounted without tools
Large operating temperature range and high protection rating
Vibration and shock resistant thanks to coupling ring with locking mechan
