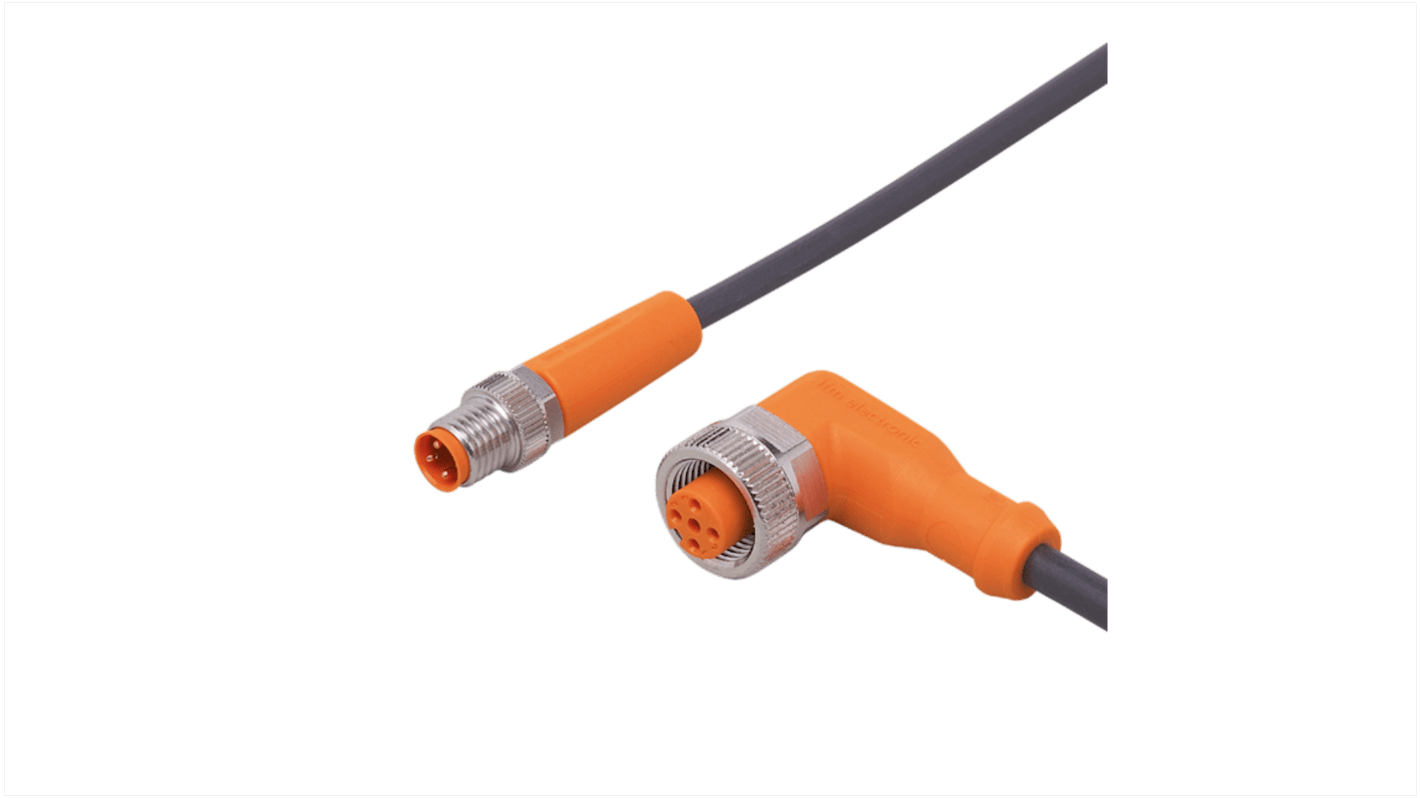

ifm electronic Straight Male 4 way M8 to Right Angle Female 5 way M12 Communication Cable, 300mm
- RS Stock No.:
- 186-395
- Mfr. Part No.:
- EVC379
- Brand:
- ifm electronic
Subtotal (1 unit)*
£19.73
(exc. VAT)
£23.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 16 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £19.73 |
*price indicative
- RS Stock No.:
- 186-395
- Mfr. Part No.:
- EVC379
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Series | EVC | |
| Cross Sectional Area | 0.34 mm² | |
| Number of Cores | 3 | |
| Length | 300mm | |
| Sheath Colour | Black | |
| Sheath Material | Polyurethane PUR | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 | M8 | |
| Connector 1 Orientation | Straight | |
| Connector 1 Gender | Male | |
| Connector 2 Number of Contacts | 5 | |
| Connector 2 Orientation | Right Angle | |
| Connector 2 Gender | Female | |
| Connector 2 | M12 | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Series EVC | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 3 | ||
Length 300mm | ||
Sheath Colour Black | ||
Sheath Material Polyurethane PUR | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 M8 | ||
Connector 1 Orientation Straight | ||
Connector 1 Gender Male | ||
Connector 2 Number of Contacts 5 | ||
Connector 2 Orientation Right Angle | ||
Connector 2 Gender Female | ||
Connector 2 M12 | ||
- COO (Country of Origin):
- PL
The ifm electronic Connection Cable is designed to meet the demanding needs of industrial applications. Crafted with special attention to reliability and durability, it features a robust construction that ensures excellent performance under challenging conditions. With a temperature range of -25…90 °C, this cable is suitable for various environments, guaranteeing seamless operation even in extreme settings. The cable is free from silicone and halogen, making it an environmentally conscious choice without compromising on quality.
Resistant to oils and coolants
Permanent and reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mec
Permanent and reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mec
