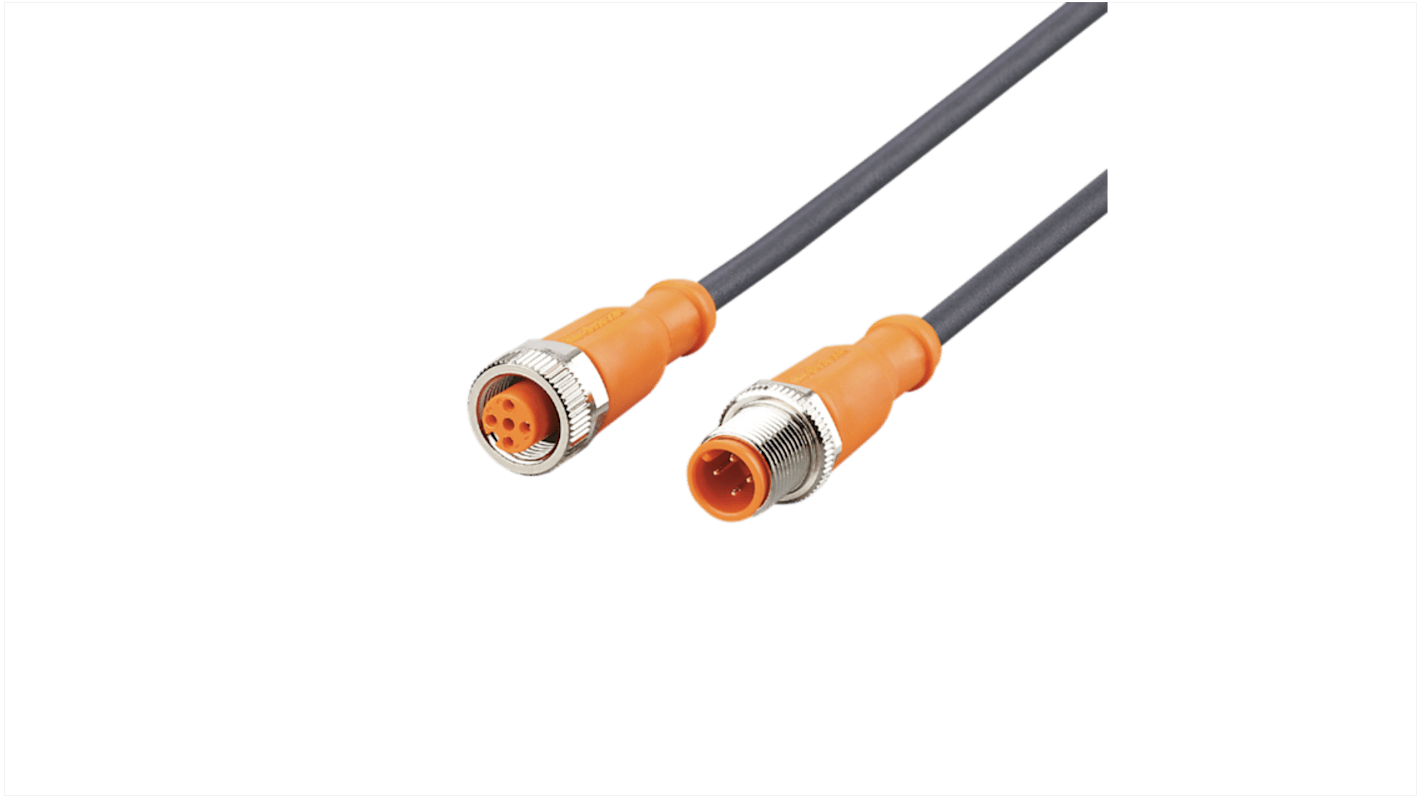

ifm electronic Straight Male 1 way M12 to Straight Female 1 way M12 Actuator/Sensor Cable, 800mm
- RS Stock No.:
- 186-372
- Mfr. Part No.:
- EVC113
- Brand:
- ifm electronic
Subtotal (1 unit)*
£20.79
(exc. VAT)
£24.95
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship from another location
- Plus 999,999,987 unit(s) shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £20.79 |
*price indicative
- RS Stock No.:
- 186-372
- Mfr. Part No.:
- EVC113
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ifm electronic | |
Series | EVC | |
Number of Cores | 4 | |
Cross Sectional Area | 0.34 mm² | |
Length | 800mm | |
Sheath Material | Polyurethane PUR | |
Sheath Colour | Black | |
Connector 1 Number of Contacts | 1 | |
Connector 1 Orientation | Straight | |
Connector 1 Gender | Male | |
Connector 1 | M12 | |
Connector 2 Orientation | Straight | |
Connector 2 Gender | Female | |
Connector 2 Number of Contacts | 1 | |
Connector 2 | M12 | |
Select all | ||
---|---|---|
Brand ifm electronic | ||
Series EVC | ||
Number of Cores 4 | ||
Cross Sectional Area 0.34 mm² | ||
Length 800mm | ||
Sheath Material Polyurethane PUR | ||
Sheath Colour Black | ||
Connector 1 Number of Contacts 1 | ||
Connector 1 Orientation Straight | ||
Connector 1 Gender Male | ||
Connector 1 M12 | ||
Connector 2 Orientation Straight | ||
Connector 2 Gender Female | ||
Connector 2 Number of Contacts 1 | ||
Connector 2 M12 | ||
- COO (Country of Origin):
- PL
The ifm electronic Connection Cable is specifically designed to meet the rigorous demands of modern industrial applications. With its robust construction and high quality materials, it ensures reliable performance in a variety of settings, especially where flexibility and durability are paramount. The cable is halogen free and comes equipped with gold plated contacts for enhanced conductivity and longevity. Ideal for dynamic environments, it boasts drag chain suitability, making it a top choice for machinery that requires frequent movement.
Resistant to oils and coolants
Permanent and reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mec
Permanent and reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mec
