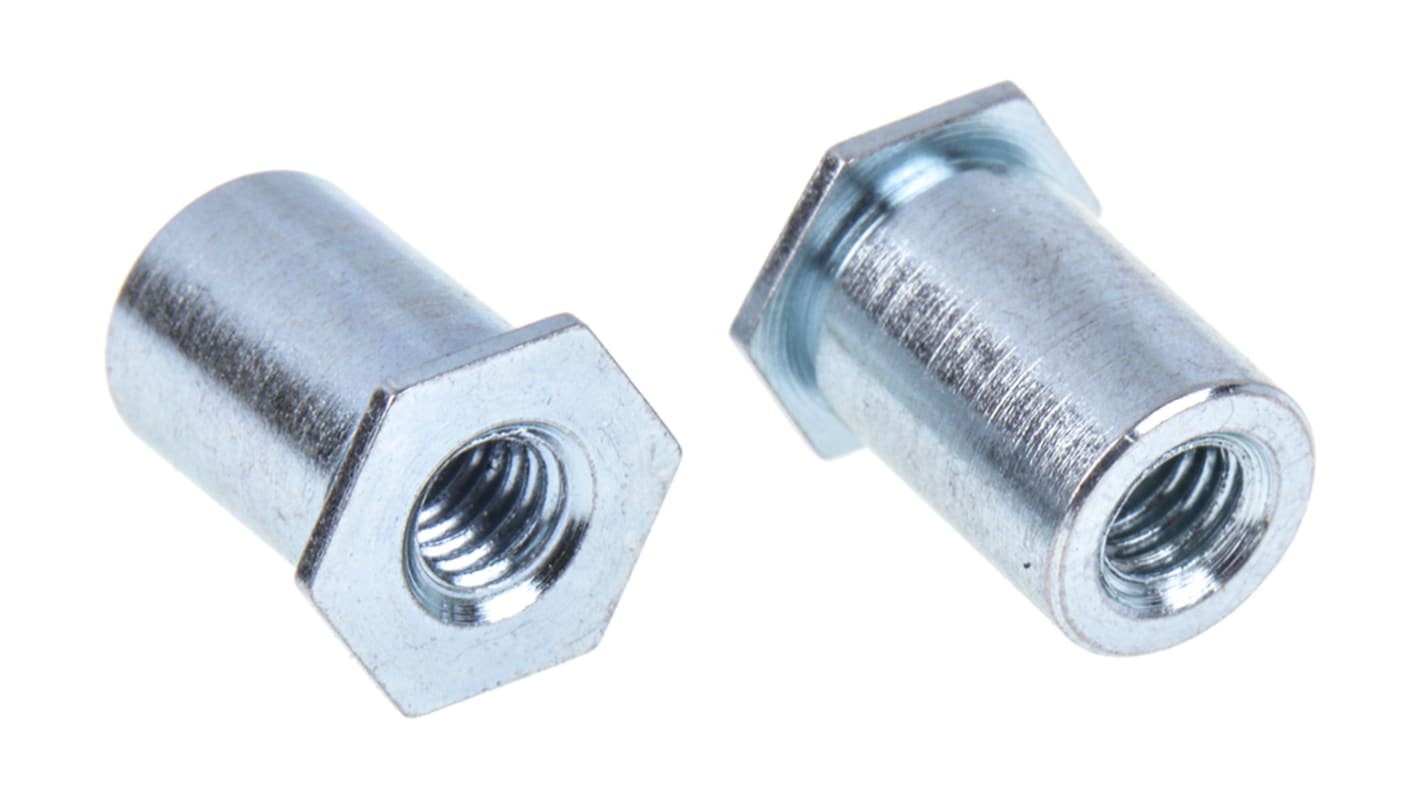

RS PRO Stainless Steel Passivated Zinc Plated Self-Clinching Standoff
- RS Stock No.:
- 827-530
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 50 units)*
£17.89
(exc. VAT)
£21.47
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 35 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 - 4 | £17.89 | £0.358 |
| 5 - 9 | £16.44 | £0.329 |
| 10 - 39 | £15.74 | £0.315 |
| 40 + | £14.30 | £0.286 |
*price indicative
- RS Stock No.:
- 827-530
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Size | M3 | |
| Product Type | Self-Clinching Standoff | |
| Fixing Hole Diameter | 5.4mm | |
| Outside Diameter | 5.4mm | |
| Material | Stainless Steel | |
| Finish | Passivated Zinc Plated | |
| Maximum Thickness of Material | 1mm | |
| Minimum Thickness of Material | 1mm | |
| Head Width | 8mm | |
| Standards/Approvals | RoHS | |
| Depth | 8mm | |
| Thread Size | M3 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Size M3 | ||
Product Type Self-Clinching Standoff | ||
Fixing Hole Diameter 5.4mm | ||
Outside Diameter 5.4mm | ||
Material Stainless Steel | ||
Finish Passivated Zinc Plated | ||
Maximum Thickness of Material 1mm | ||
Minimum Thickness of Material 1mm | ||
Head Width 8mm | ||
Standards/Approvals RoHS | ||
Depth 8mm | ||
Thread Size M3 | ||
Self-clinching Stand-offs
Threaded self-clinching stand-offs available in either through-hole or blind-hole versions.
Case-hardened, zinc plated mild steel, to BS3382
Stand-off remains in place after installation fastener has been removed
Note
10 & 12 mm long through-hole types are counterbored 4.8 deep at non-clinched end. Hex dimension 6.4 mm and 4.0 mm Ø for M3 sizes, Hex dimension 7.9 mm and 4.8 mm Ø for M4 sizes.
