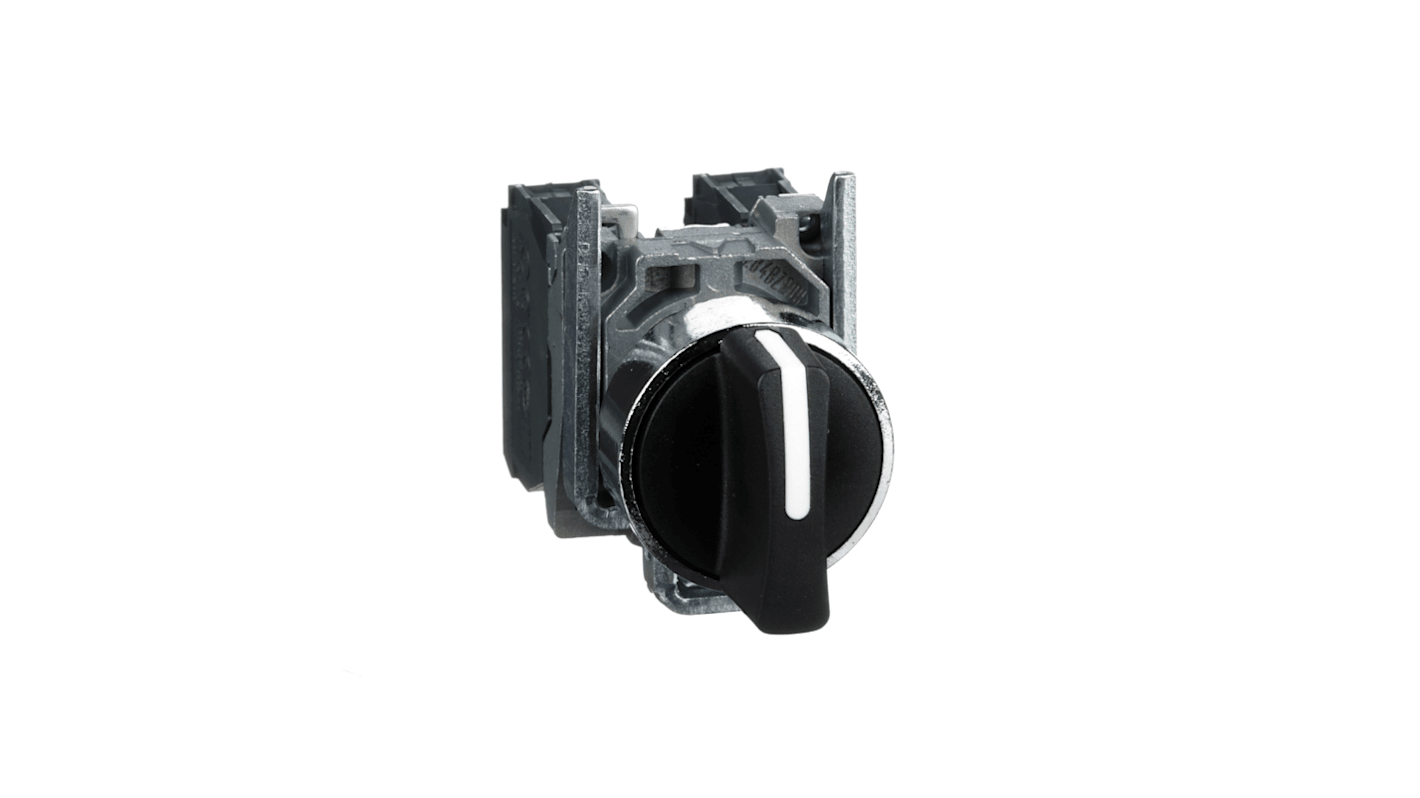

Schneider Electric Harmony XB4 Series Selector Switch, NO, Panel, 2 NO, IP67, IP69, IP69K, 250 V dc 240 V ac

RS Stock No.:: 330-8694
Distrelec Article No.:: 135-12-354
Mfr. Part No.:: XB4BD33
Brand:: Schneider Electric

Schneider Electric Harmony XB4 Series Selector Switch, NO, Panel, 2 NO, IP67, IP69, IP69K, 250 V dc 240 V ac

Subtotal (1 unit)*

£24.93

(exc. VAT)

£29.92

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 457 unit(s) shipping from 15 June 2026
Plus 135 unit(s) shipping from 15 June 2026
Plus 424 unit(s) shipping from 18 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£24.93

*price indicative

Our Better World range features products that make it easy for you to make a greener product choice you can trust.

Click here to find out more.

RS Stock No.:: 330-8694
Distrelec Article No.:: 135-12-354
Mfr. Part No.:: XB4BD33
Brand:: Schneider Electric

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Actuator Colour	Black
	Product Type	Selector Switch
	Switch Operation	NO
	Illuminated	No
	Series	Harmony XB4
	Mount Type	Panel
	Contact Configuration	2 NO
	Terminal Type	Screw
	IP Rating	IP67, IP69, IP69K
	Minimum Operating Temperature	-40°C
	Contact AC Voltage	240V ac
	Contact DC Voltage	250V dc
	Actuator Style	Knob
	Maximum Operating Temperature	70°C
	Height	47mm
	Switch Contact Current	3A
	Width	30mm
	Standards/Approvals	IEC 60947-5-1, UL, RoHS, LROS, JIS C8201-5-1, IEC 60947-5-5, IEC 60947-5-4, IEC 60947-1, DNV, CSA, BV
	Length	68mm
	Better World Product	Yes
	Better World Claim	Repairable by the End User

	Select all
	Brand Schneider Electric
	Actuator Colour Black
	Product Type Selector Switch
	Switch Operation NO
	Illuminated No
	Series Harmony XB4
	Mount Type Panel
	Contact Configuration 2 NO
	Terminal Type Screw
	IP Rating IP67, IP69, IP69K
	Minimum Operating Temperature -40°C
	Contact AC Voltage 240V ac
	Contact DC Voltage 250V dc
	Actuator Style Knob
	Maximum Operating Temperature 70°C
	Height 47mm
	Switch Contact Current 3A
	Width 30mm
	Standards/Approvals IEC 60947-5-1, UL, RoHS, LROS, JIS C8201-5-1, IEC 60947-5-5, IEC 60947-5-4, IEC 60947-1, DNV, CSA, BV
	Length 68mm
	Better World Product Yes
	Better World Claim Repairable by the End User

RoHS Status: Exempt

COO (Country of Origin):: FR

Schneider Electric Harmony XB4 Series Selector Switch, 3 Positions, 10A Maximum Current - XB4BD33

This selector switch is a sophisticated industrial control device categorised under the Harmony XB4 range. Designed to offer a precise and reliable method of operation, it features a stay-put knob actuator and accommodates three distinct positions, enabling versatile functionality. With a mounting diameter of 22.5mm and a robust construction from chromium plated metal, this switch is tailored for demanding environments, boasting an IP67 rating for superior protection against dust and water ingress.

Features & Benefits

• Three-position functionality enhances operational control

• IP67 rating provides high resistance to moisture and dust

• Robust chromium plated metal bezel ensures durability

• Stay-put actuation delivers reliable performance under stress

• Configured with 2NO contacts for effective switching

• Designed for simple installation with screw terminals

Applications

• Utilised in automation control panels for machinery

• Ideal for switchgear requiring manual operation

• Suited for equipment used in environments exposed to water

• Commonly employed in industrial settings for operator control

How can this switch maintain functionality in harsh conditions?

The IP67 and IP69K ratings prevent water and dust ingress, ensuring uninterrupted operation in challenging environments. Its robust construction can withstand pressure from high-pressure washers, making it ideal for outdoor installations and cleaning processes.

What is the maximum current this device can handle?

It can carry a maximum current of 10A, allowing it to manage significant loads effectively in various applications, making it suitable for industrial environments where high performance is required.

How easy is it to connect this switch to existing systems?

The switch features screw clamp terminals compatible with various cable sizes, facilitating easy integration into existing electrical systems while ensuring reliable connections. This design supports simplified installation processes for users.

Approvals

UL; CSA
