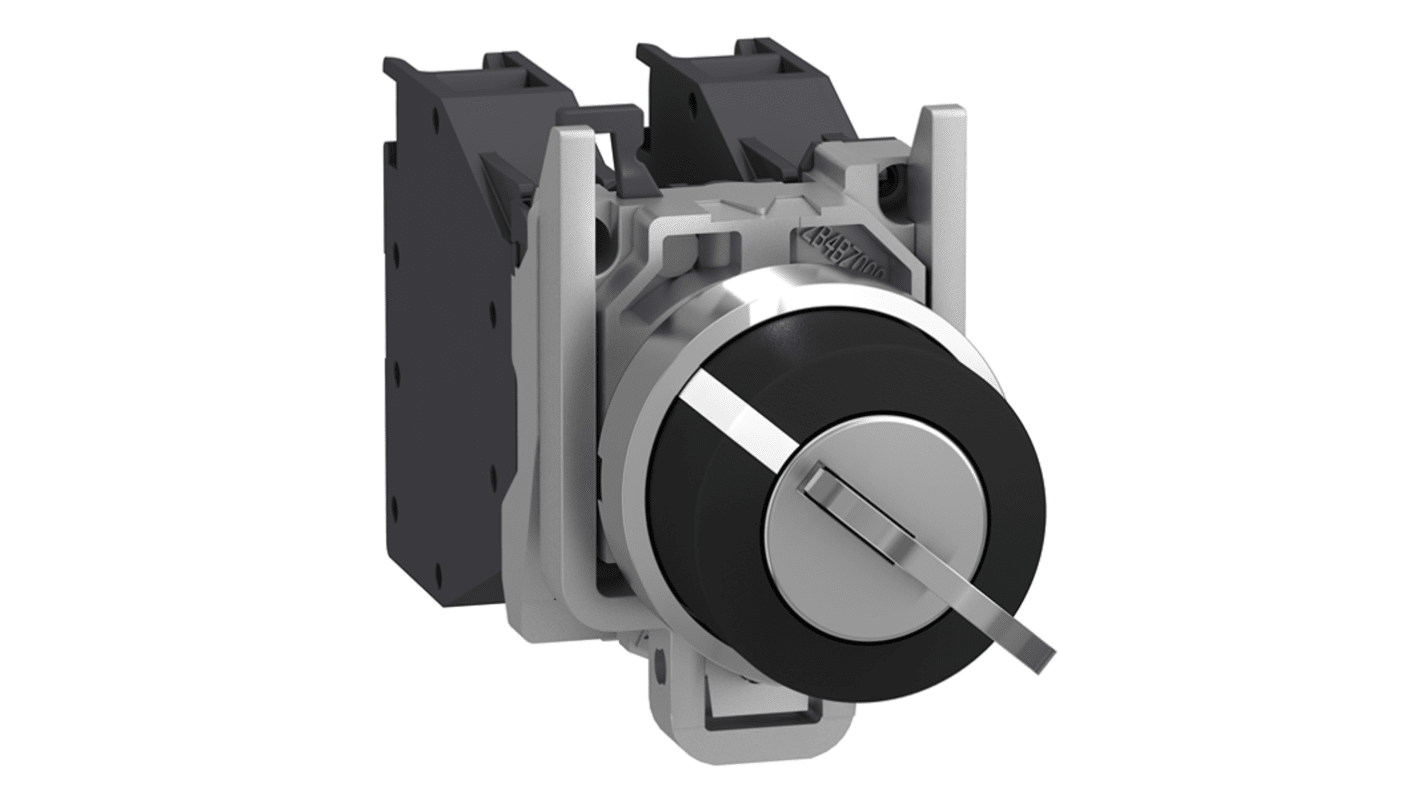

Schneider Electric Spring Return Selector Switch Complete - (SPST) 22 mm Cutout Diameter 2 Positions
- RS Stock No.:
- 428-974
- Mfr. Part No.:
- XB4BG61GEX
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£211.83
(exc. VAT)
£254.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £211.83 |
*price indicative
- RS Stock No.:
- 428-974
- Mfr. Part No.:
- XB4BG61GEX
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Selector Switch Complete | |
| Number of Positions | 2 | |
| Actuator Type | Spring Return | |
| Contact Configuration | SPST | |
| IP Rating | IP66 | |
| Angle of Throw | 90 ° | |
| Series | Harmony XB4 | |
| Cutout Diameter | 22mm | |
| Terminal Type | Screw Clamp | |
| Illuminated | No | |
| Standards/Approvals | INERIS 04ATEX9004U, IP66, IEC 60079-31:2009, CSA C22.2 Nr. 213, IEC 60079-7:2009, UL 60079-0, REACH, UL 60079-31, IEC 60079-0:2009, RoHS, UL 60079-1, IEC 60947-5-1, EN/IEC 60079-1:2009, ANSI/ISA 12.12.01 | |
| Switch Operation | Spring Return | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Selector Switch Complete | ||
Number of Positions 2 | ||
Actuator Type Spring Return | ||
Contact Configuration SPST | ||
IP Rating IP66 | ||
Angle of Throw 90 ° | ||
Series Harmony XB4 | ||
Cutout Diameter 22mm | ||
Terminal Type Screw Clamp | ||
Illuminated No | ||
Standards/Approvals INERIS 04ATEX9004U, IP66, IEC 60079-31:2009, CSA C22.2 Nr. 213, IEC 60079-7:2009, UL 60079-0, REACH, UL 60079-31, IEC 60079-0:2009, RoHS, UL 60079-1, IEC 60947-5-1, EN/IEC 60079-1:2009, ANSI/ISA 12.12.01 | ||
Switch Operation Spring Return | ||
- COO (Country of Origin):
- FR
The Schneider Electric Harmony XB4 selector switch is built for reliable operation in challenging environments, with an ambient air temperature range for storage from -40°C to 70°C. It offers an IP66 protection rating, conforming to IEC 60529, ensuring resistance to dust and water ingress.
EU RoHS Directive
Mercury free
