EAO 2 Position Selector Switch Head

View all Selector Switch Heads
Bulk discount available

Subtotal (1 unit)*

£27.46

(exc. VAT)

£32.95

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 15 unit(s) ready to ship
  • Plus 7 unit(s) ready to ship from another location
  • Plus 30 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 24£27.46
25 - 99£26.09
100 - 249£24.05
250 - 499£21.42
500 +£18.01

*price indicative

RS Stock No.:
331-4942
Mfr. Part No.:
61-4210.0, 61-9028.0
Brand:
EAO
Find similar products by selecting one or more attributes.
Select all

Brand

EAO

Number of Positions

2

IP Rating

IP65 (Front); IP40 (Rear)

COO (Country of Origin):
CH

EAO Key & Selector Switches & Flush Mount Bezel Set, Series 61


The EAO Series 61 is a high quality, modular switch range that includes pushbuttons, indicators, selector switches, keylock switches and Emergency-stop. Available in raised or flush mount.

Flush mount Keylock switches and Selector switch
Keylock switches are supplied with three assorted front bezels which require the flush mount bezel set, stock no.( 331-4964) for mounting
Flush mounts into 24 x 24 mm square, 25 mm round and 24 x 30mm rectangular cut-outs
Selector switch supplied with flush mount lever
Momentary or maintained action
IP65 protection
Switch rating 5A @ 250 Vac
Self cleaning snap action switching element
For Contact Blocks - see stk nos. 219-5447,219-5453 or 219-5469

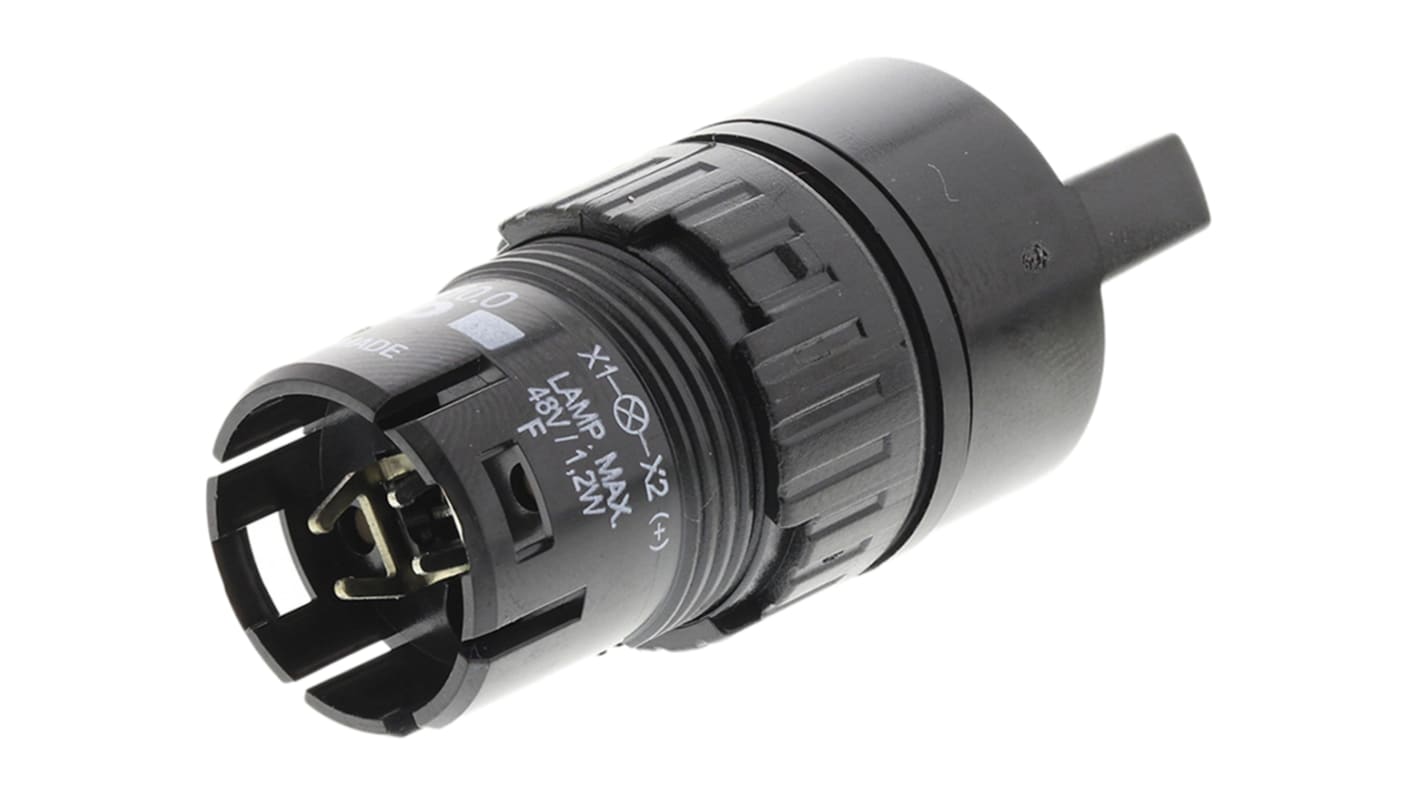

EAO Selector Switch Head, 90° Switching Angle, 16mm Cutout Diameter - 61 Series - 61-4210.0, 61-9028.0


Use this selector switch head from EAO to turn your HMI equipment on or off. Its plastic housing is resistant to impact and wear for use in demanding environments. The gold-plated contacts are highly conductive and resistant to corrosion, helping to ensure a reliable electrical connection. Thanks to its voltage rating of 250V AC/DC, this switch is suitable for use in low-voltage applications.

Features & Benefits


• IP65 rating means it's dust-tight and protected against low-pressure water jets
• Broad operating temperature range of -25°C to +55°C for use in demanding environments
• Small cutout diameter of 16mm means it will take up minimal space on a control panel

Applications


• Transportation industry
• Industrial panel building
• Heavy-duty and special vehicles

How many switching positions does this unit have?


This rotary switch head has two positions. Its short lever makes it easy to operate by simply turning it by 90°.

Is this a maintained or a momentary switch?


This is a maintained switch, so it stays in one position until you manually change it. This makes it suitable for controlling long-term processes.
