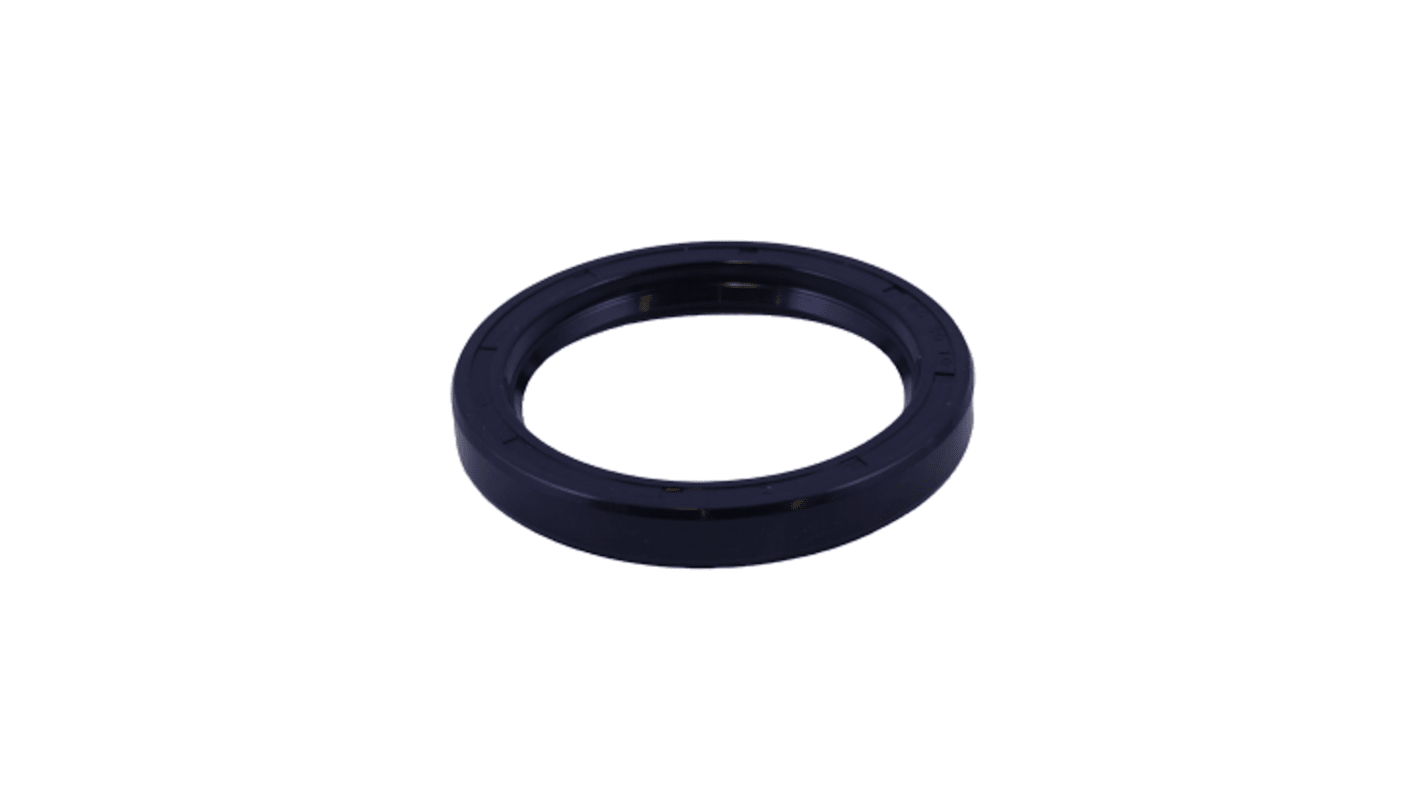

RS PRO Nitrile Rubber Seal, 70mm ID, 85mm OD, 7mm
- RS Stock No.:
- 226-3888
- Brand:
- RS PRO
9 In stock - FREE next working day delivery available
Price 1 Bag of 5
£20.85
(exc. VAT)
£25.02
(inc. VAT)
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £20.85 | £4.17 |
*price indicative
- RS Stock No.:
- 226-3888
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
Product Details
The RS Pro Oil Seal nitrile material is the most cost effective and commonly available. It is commonly used in driveshafts, crankshafts and hydraulic cylinders where a rotating shaft is lubricated by oil or grease. The NBR is good for applications where the oil seal requires resistance to lubrication oils, hydraulic fluids and grease. The nitrile oil seals are not suitable for use with brake oil, phosphoric ester and ester base.
Color black
Operating temperature range between -20°C to 90°C
Hardness 70 ±5 shore A
Tensile strength 18.9 MPa
Elongation 438%
Specific gravity 3 1.25 ± 0.03g/cm
Tear resistance 58N/mm
Operating temperature range between -20°C to 90°C
Hardness 70 ±5 shore A
Tensile strength 18.9 MPa
Elongation 438%
Specific gravity 3 1.25 ± 0.03g/cm
Tear resistance 58N/mm
Specifications
Attribute | Value |
|---|---|
| Inside Diameter | 70mm |
| Outside Diameter | 85mm |
| Seal Type | Rotary Shaft Seal |
| Thickness | 7mm |
| Seal Material | Nitrile Rubber |
