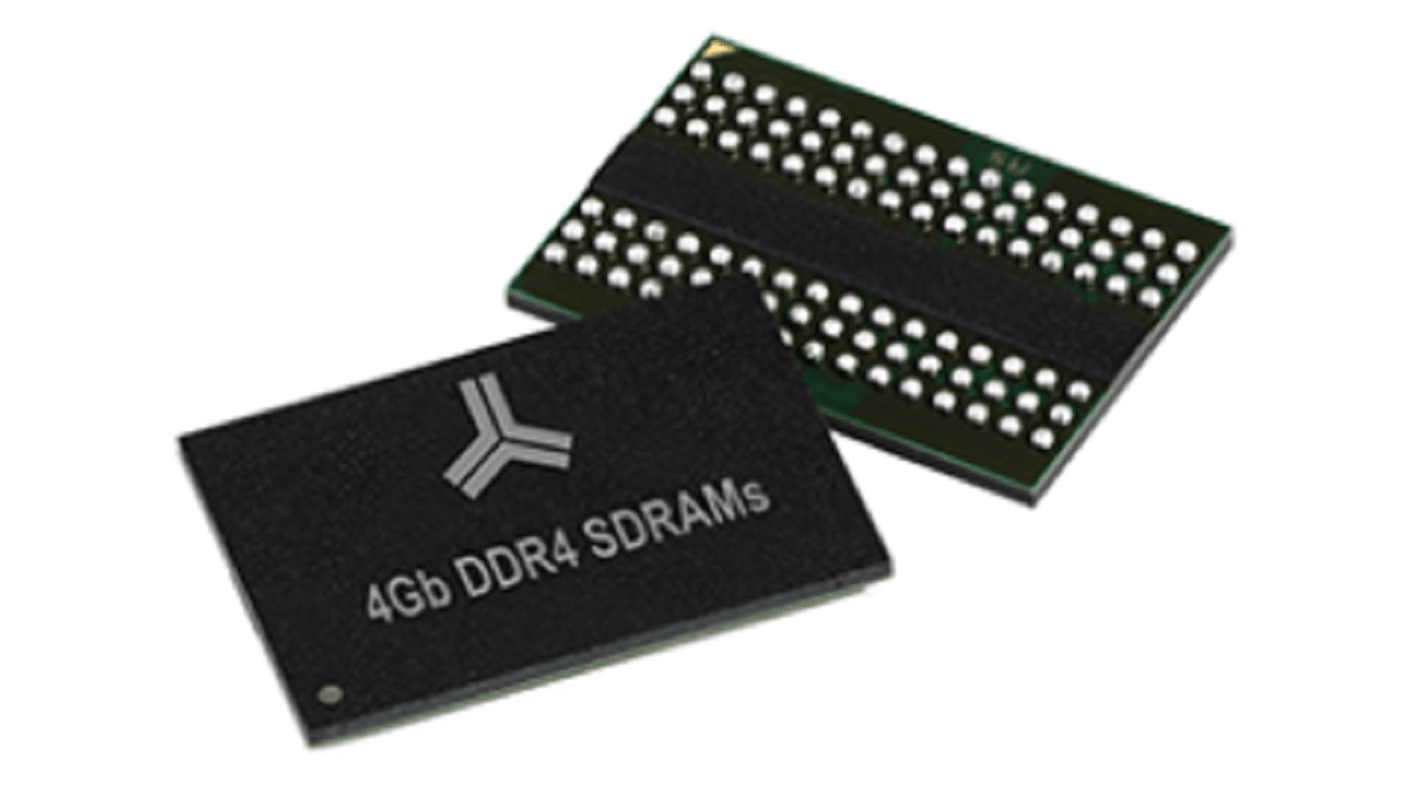

Alliance Memory SDRAM 4 GB Surface, 96-Pin 16 bit FBGA-96 Ball

View all SDRAM
Bulk discount available

Subtotal (1 tray of 209 units)*

£3,299.901

(exc. VAT)

£3,959.923

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
In Stock
  • 209 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
209 - 209£15.789£3,299.90
418 - 836£15.385£3,215.47
1045 +£15.00£3,135.00

*price indicative

RS Stock No.:
259-2125
Mfr. Part No.:
AS4C256M16D4-83BCN
Brand:
Alliance Memory
Find similar products by selecting one or more attributes.
Select all

Brand

Alliance Memory

Memory Size

4GB

Product Type

SDRAM

Organisation

256M x 16

Data Bus Width

16bit

Number of Bits per Word

16

Maximum Clock Frequency

1200MHz

Maximum Random Access Time

18ns

Mount Type

Surface

Package Type

FBGA-96 Ball

Pin Count

96

Minimum Operating Temperature

0°C

Maximum Operating Temperature

95°C

Standards/Approvals

RoHS

Series

AS4C256M16D4

Width

1.2 mm

Height

7.5mm

Length

13.5mm

Supply Current

142mA

Automotive Standard

No

Maximum Supply Voltage

1.26V

Minimum Supply Voltage

1.14V

The Alliance Memory synchronous DRAM with DDR4 memory class. It is JEDEC standard compliant and low-power auto self refresh (LPASR).

Density: 4Gb

Organization: 256M x 16

Package: 96-ball FBGA

Speed: 1200MHz

Temp. range (°C): -40 to +95

Bidirectional differential data strobe, DQS &DQS#

8 internal banks: 2 groups of 4 banks each

8n-bit pre-fetch architecture

Target Applications:


Portable electronics, such as smartphones and tablets

5G designs, computing applications, surveillance systems, smart meters, human-machine interfaces (HMI), digital signal controllers, and PNDs
