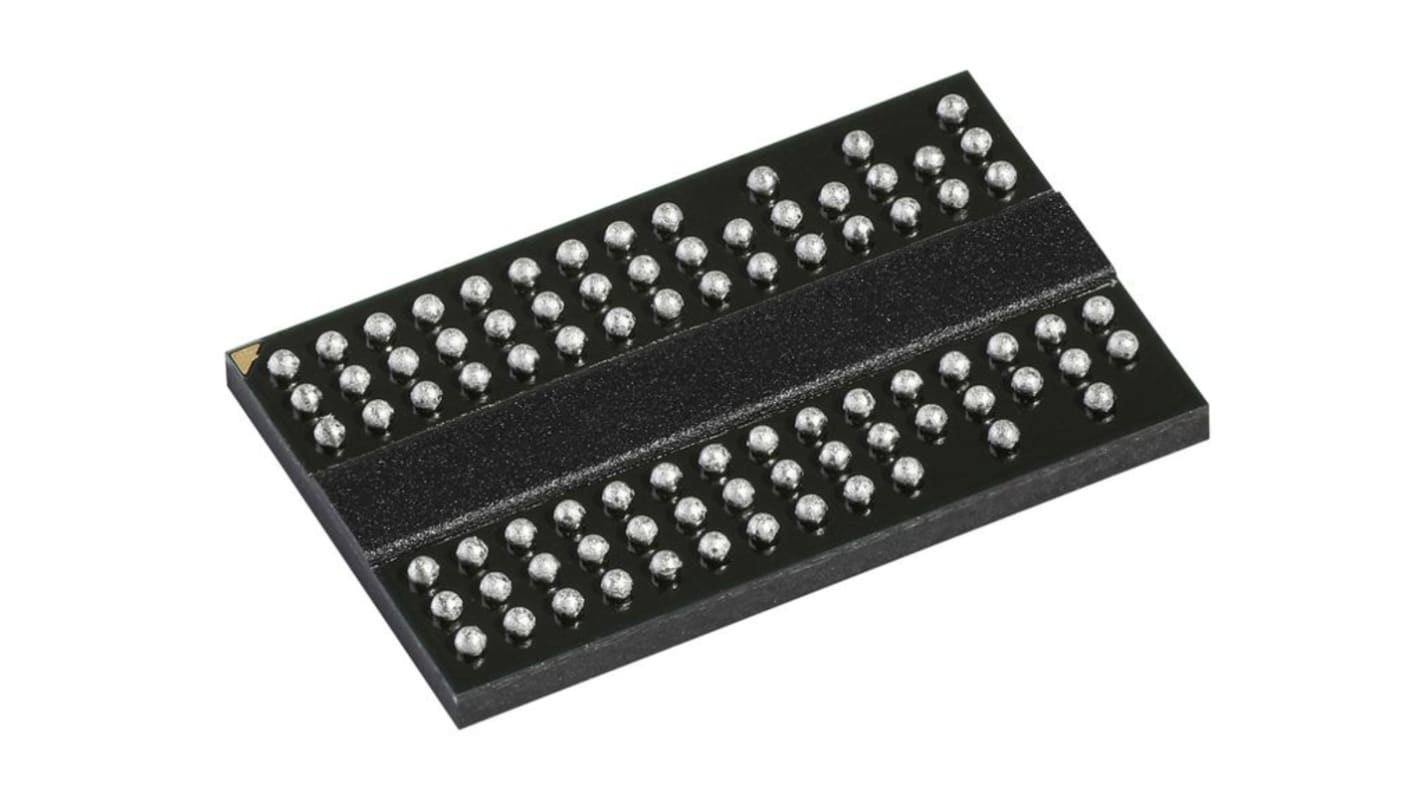

Alliance Memory AS4C32M16D3L-12BIN, SDRAM 512Mbit Surface Mount, 800MHz, 1.283 V to 1.45 V, 96-Pin FBGA

View all SDRAM

Subtotal (1 tray of 190 units)*

£440.61

(exc. VAT)

£528.77

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
190 +£2.319£440.61

*price indicative

RS Stock No.:
230-8423
Mfr. Part No.:
AS4C32M16D3L-12BIN
Brand:
Alliance Memory
Find similar products by selecting one or more attributes.
Select all

Brand

Alliance Memory

Memory Size

512Mbit

Organisation

32M x 16

SDRAM Class

DDR3L

Data Rate

800MHz

Data Bus Width

16bit

Address Bus Width

12bit

Number of Bits per Word

16bit

Maximum Random Access Time

20ns

Number of Words

32 M

Mounting Type

Surface Mount

Package Type

FBGA

Pin Count

96

Dimensions

8 x 13 x 1.0mm

Height

1.0mm

Length

8mm

Width

13mm

Minimum Operating Supply Voltage

1.283 V

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+95 °C

Maximum Operating Supply Voltage

1.45 V

The Alliance Memory 512Mb Double-Data-Rate-3L (DDR3L) DRAMs is double data rate architecture to achieve high-speed operation. It is internally configured as an eight bank DRAM.

8 internal banks for concurrent operation
8n-bit prefetch architecture
Pipelined internal architecture
Precharge & active power down
Programmable Mode & Extended Mode registers
