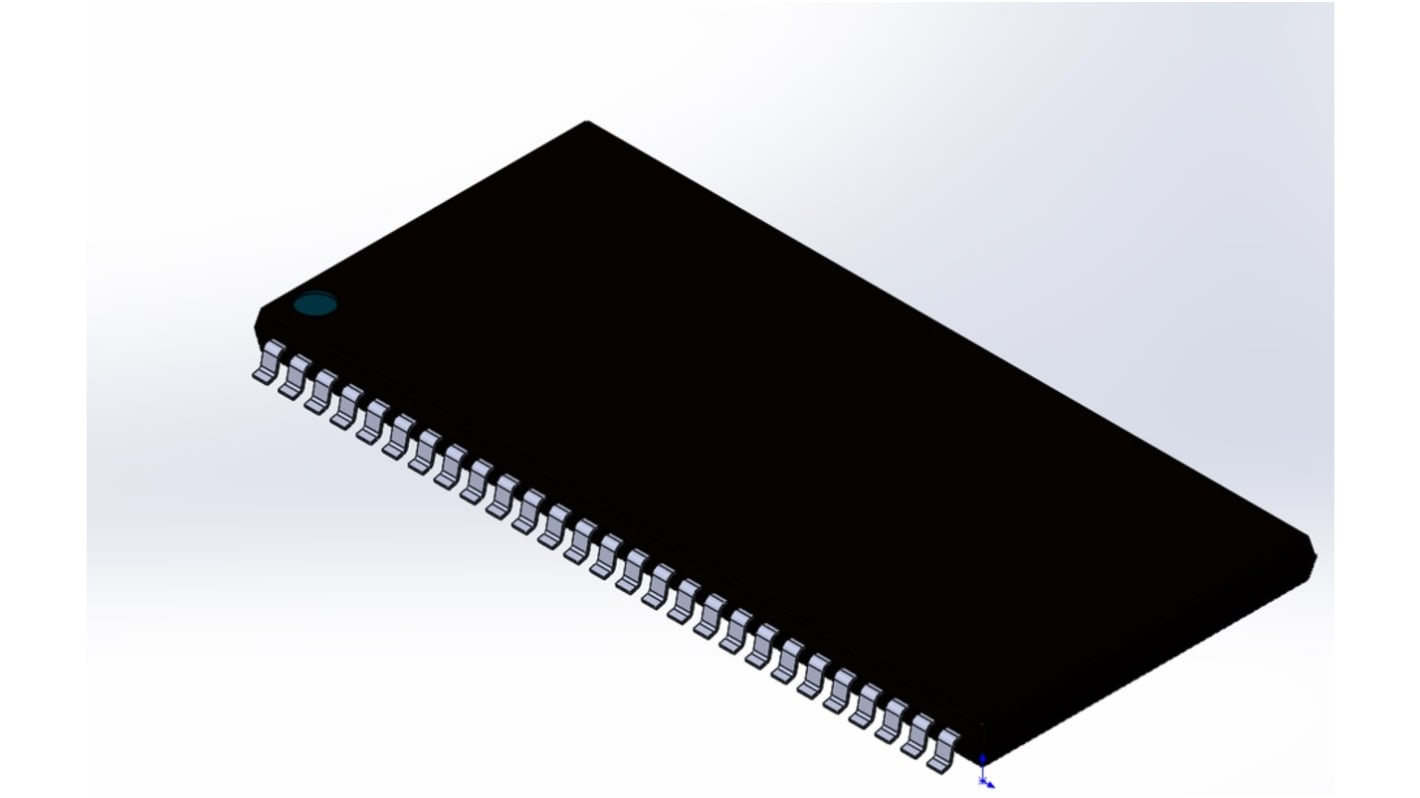

Alliance Memory AS4C16M16SA-6TCN, SDRAM 256Mbit Surface Mount, 166MHz, 3 V to 3.6 V, 54-Pin TSOP
- RS Stock No.:
- 230-8414
- Mfr. Part No.:
- AS4C16M16SA-6TCN
- Brand:
- Alliance Memory
84 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 2)
£3.28
(exc. VAT)
£3.94
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 8 | £3.28 | £6.56 |
| 10 - 18 | £2.975 | £5.95 |
| 20 - 48 | £2.915 | £5.83 |
| 50 - 98 | £2.89 | £5.78 |
| 100 + | £2.60 | £5.20 |
| *price indicative | ||
- RS Stock No.:
- 230-8414
- Mfr. Part No.:
- AS4C16M16SA-6TCN
- Brand:
- Alliance Memory
Technical Reference
Legislation and Compliance
Product Details
The Alliance Memory 256Mb SDRAM is a high-speed CMOS synchronous DRAM containing 256 Mbits. It is internally configured as 4 Banks of 4M word x 16 DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK). Read and write accesses to the SDRAM are burst oriented
accesses start at a selected location and continue for a programmed number of locations in a programmed sequence. Accesses begin with the registration of a BankActivate command which is then followed by a Read or Write command.
Fast access time from clock: 5/5.4 ns
Fast clock rate: 166/143 MHz
Fully synchronous operation
Internal pipelined architecture
4M word x 16-bit x 4-bank
Fast clock rate: 166/143 MHz
Fully synchronous operation
Internal pipelined architecture
4M word x 16-bit x 4-bank
Specifications
Attribute | Value |
|---|---|
| Memory Size | 256Mbit |
| SDRAM Class | DDR |
| Organisation | 16M x 16 |
| Data Rate | 166MHz |
| Data Bus Width | 16bit |
| Address Bus Width | 13bit |
| Number of Bits per Word | 16bit |
| Maximum Random Access Time | 5ns |
| Number of Words | 16 M |
| Mounting Type | Surface Mount |
| Package Type | TSOP |
| Pin Count | 54 |
| Dimensions | 22.35 x 10.29 x 1.2mm |
| Height | 1.2mm |
| Length | 22.35mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | 0 °C |
| Minimum Operating Supply Voltage | 3 V |
| Width | 10.29mm |
