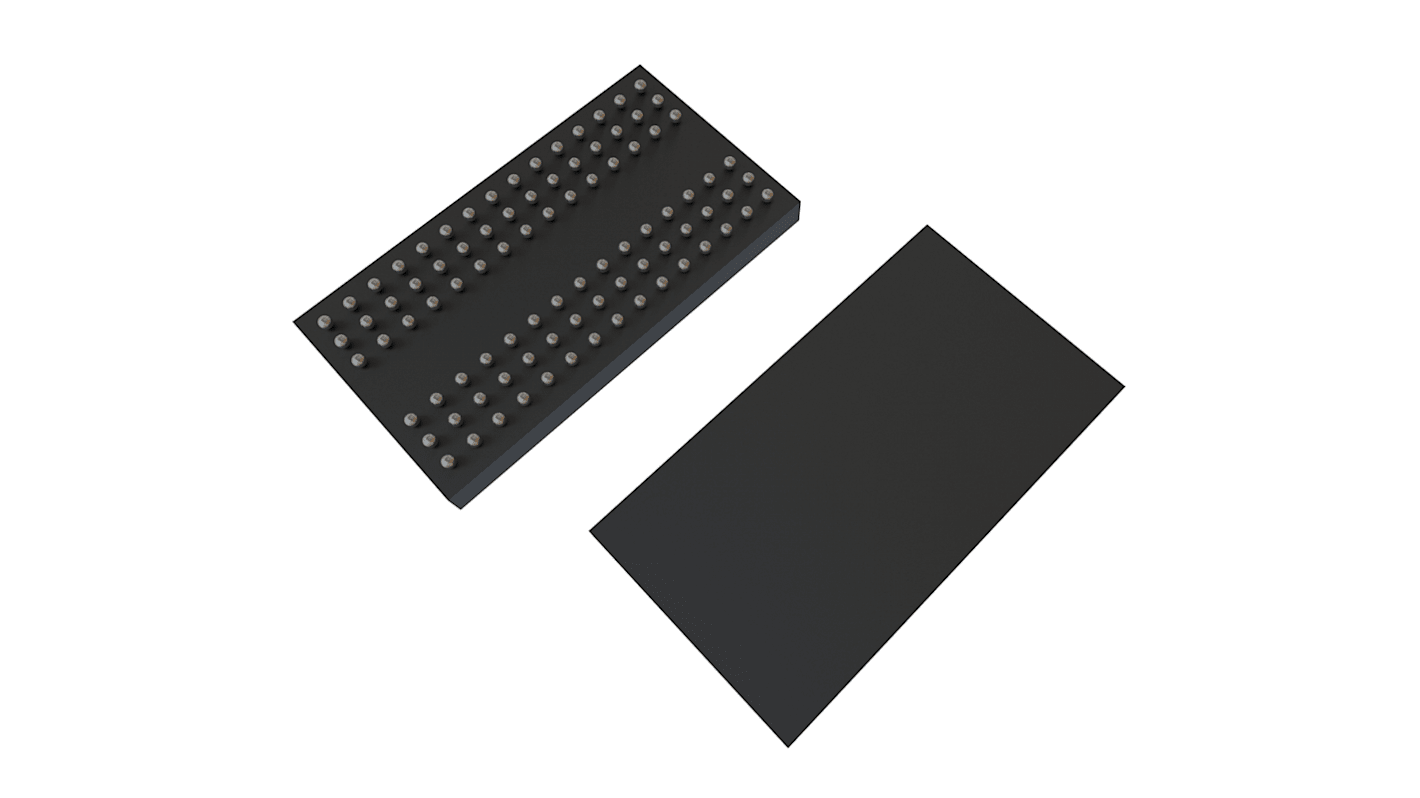

Winbond W9712G6KB25I, SDRAM 128Mbit Surface Mount, 200MHz, 1.7 V to 1.9 V, 84-Pin TFBGA
- RS Stock No.:
- 188-2580
- Mfr. Part No.:
- W9712G6KB25I
- Brand:
- Winbond
View all SDRAM
Available to back order for despatch 15/01/2024
Price Each (In a Tray of 209)
£1.579
(exc. VAT)
£1.895
(inc. VAT)
Units | Per unit | Per Tray* |
209 + | £1.579 | £330.011 |
*price indicative |
- RS Stock No.:
- 188-2580
- Mfr. Part No.:
- W9712G6KB25I
- Brand:
- Winbond
Technical Reference
Legislation and Compliance
Product Details
The W9712G6KB is a 128M bits DDR2 SDRAM and speed involving -25, 25I and -3.
Double Data Rate architecture: two data transfers per clock cycle
CAS Latency: 3, 4, 5 and 6
Burst Length: 4 and 8
Bi-directional, differential data strobes (DQS and /DQS ) are transmitted / received with data
Edge-aligned with Read data and center-aligned with Write data
DLL aligns DQ and DQS transitions with clock
Differential clock inputs (CLK and /CLK)
Data masks (DM) for write data
Commands entered on each positive CLK edge, data and data mask are referenced to both edges of /DQS
Posted /CAS programmable additive latency supported to make command and data bus efficiency
Read Latency = Additive Latency plus CAS Latency (RL = AL + CL)
Off-Chip-Driver impedance adjustment (OCD) and On-Die-Termination (ODT) for better signal quality
Auto-precharge operation for read and write bursts
Auto Refresh and Self Refresh modes
Precharged Power Down and Active Power Down
Write Data Mask
Write Latency = Read Latency - 1 (WL = RL - 1)
Interface: SSTL_18
CAS Latency: 3, 4, 5 and 6
Burst Length: 4 and 8
Bi-directional, differential data strobes (DQS and /DQS ) are transmitted / received with data
Edge-aligned with Read data and center-aligned with Write data
DLL aligns DQ and DQS transitions with clock
Differential clock inputs (CLK and /CLK)
Data masks (DM) for write data
Commands entered on each positive CLK edge, data and data mask are referenced to both edges of /DQS
Posted /CAS programmable additive latency supported to make command and data bus efficiency
Read Latency = Additive Latency plus CAS Latency (RL = AL + CL)
Off-Chip-Driver impedance adjustment (OCD) and On-Die-Termination (ODT) for better signal quality
Auto-precharge operation for read and write bursts
Auto Refresh and Self Refresh modes
Precharged Power Down and Active Power Down
Write Data Mask
Write Latency = Read Latency - 1 (WL = RL - 1)
Interface: SSTL_18
Specifications
Attribute | Value |
Memory Size | 128Mbit |
Organisation | 16M x 8 bit |
SDRAM Class | DDR2 |
Data Rate | 200MHz |
Data Bus Width | 16bit |
Address Bus Width | 15bit |
Number of Bits per Word | 8bit |
Maximum Random Access Time | 0.4ns |
Number of Words | 16M |
Mounting Type | Surface Mount |
Package Type | TFBGA |
Pin Count | 84 |
Dimensions | 12.6 x 8.1 x 0.8mm |
Height | 0.8mm |
Length | 12.6mm |
Width | 8.1mm |
Maximum Operating Supply Voltage | 1.9 V |
Minimum Operating Temperature | -40 °C |
Minimum Operating Supply Voltage | 1.7 V |
Maximum Operating Temperature | +95 °C |
