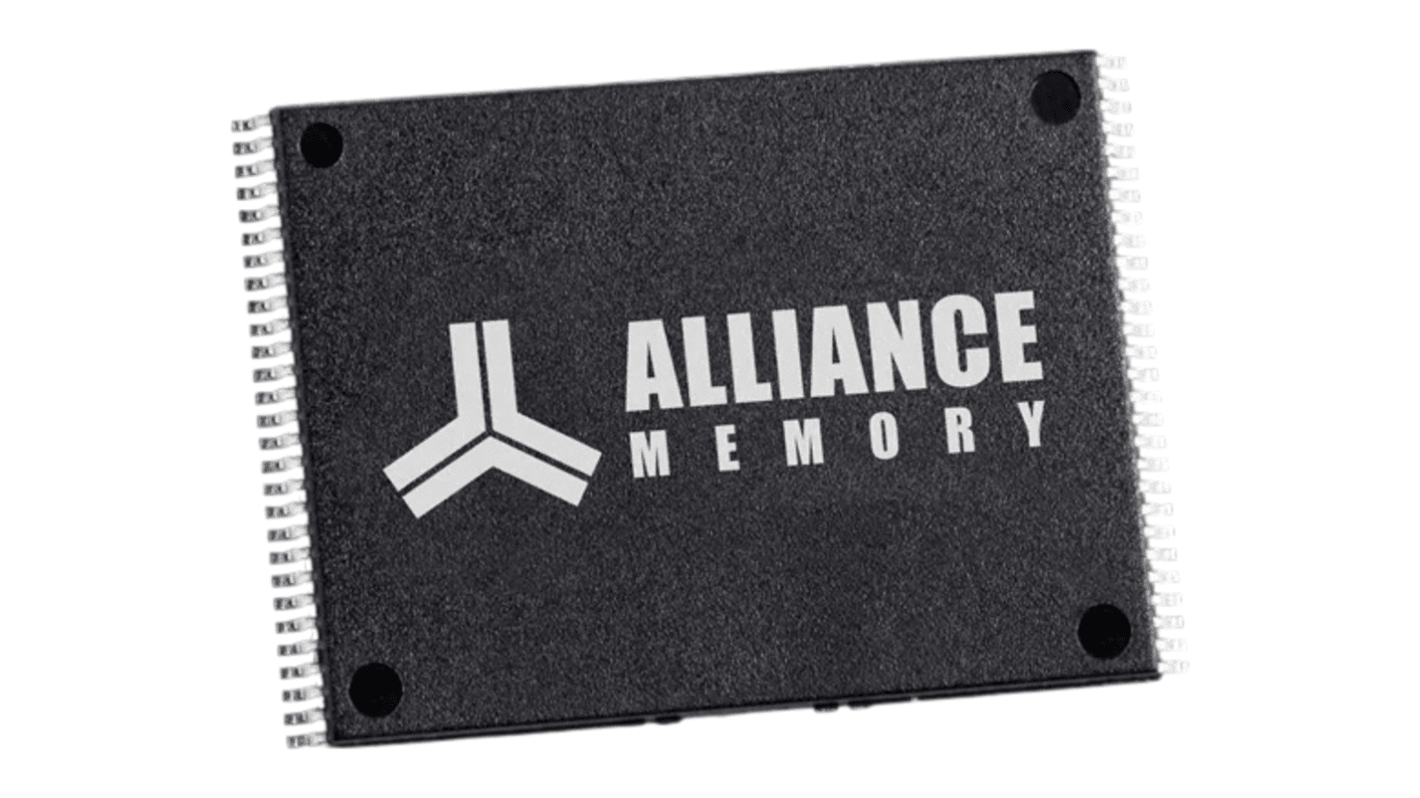

Alliance Memory AS4C128M16D3LC-12BIN, SDRAM 2GByte Through Hole, 800MHz, 96-Pin 96-ball FBGA
- RS Stock No.:
- 665-406
- Mfr. Part No.:
- AS4C128M16D3LC-12BIN
- Brand:
- Alliance Memory
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 665-406
- Mfr. Part No.:
- AS4C128M16D3LC-12BIN
- Brand:
- Alliance Memory
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Alliance Memory | |
Memory Size | 2GByte | |
Organisation | 128M x 16 | |
SDRAM Class | DDR3 | |
Data Rate | 800MHz | |
Data Bus Width | 16bit | |
Mounting Type | Through Hole | |
Package Type | 96-ball FBGA | |
Pin Count | 96 | |
Select all | ||
---|---|---|
Brand Alliance Memory | ||
Memory Size 2GByte | ||
Organisation 128M x 16 | ||
SDRAM Class DDR3 | ||
Data Rate 800MHz | ||
Data Bus Width 16bit | ||
Mounting Type Through Hole | ||
Package Type 96-ball FBGA | ||
Pin Count 96 | ||
- COO (Country of Origin):
- TW
The Alliance Memory Synchronous DRAM is based on a double data rate architecture for high-speed operation and is internally organized as eight banks. The 2Gb chip is structured as 16Mbit x 16 I/Os across 8 banks. It achieves transfer rates up to 1600 Mb/sec per pin, suitable for general applications. The design complies with DDR3L standards, with all control and address inputs synchronized to a pair of external differential clocks.
Fully synchronous operation
8 internal banks for concurrent operation
Pipelined internal architecture
8 internal banks for concurrent operation
Pipelined internal architecture
