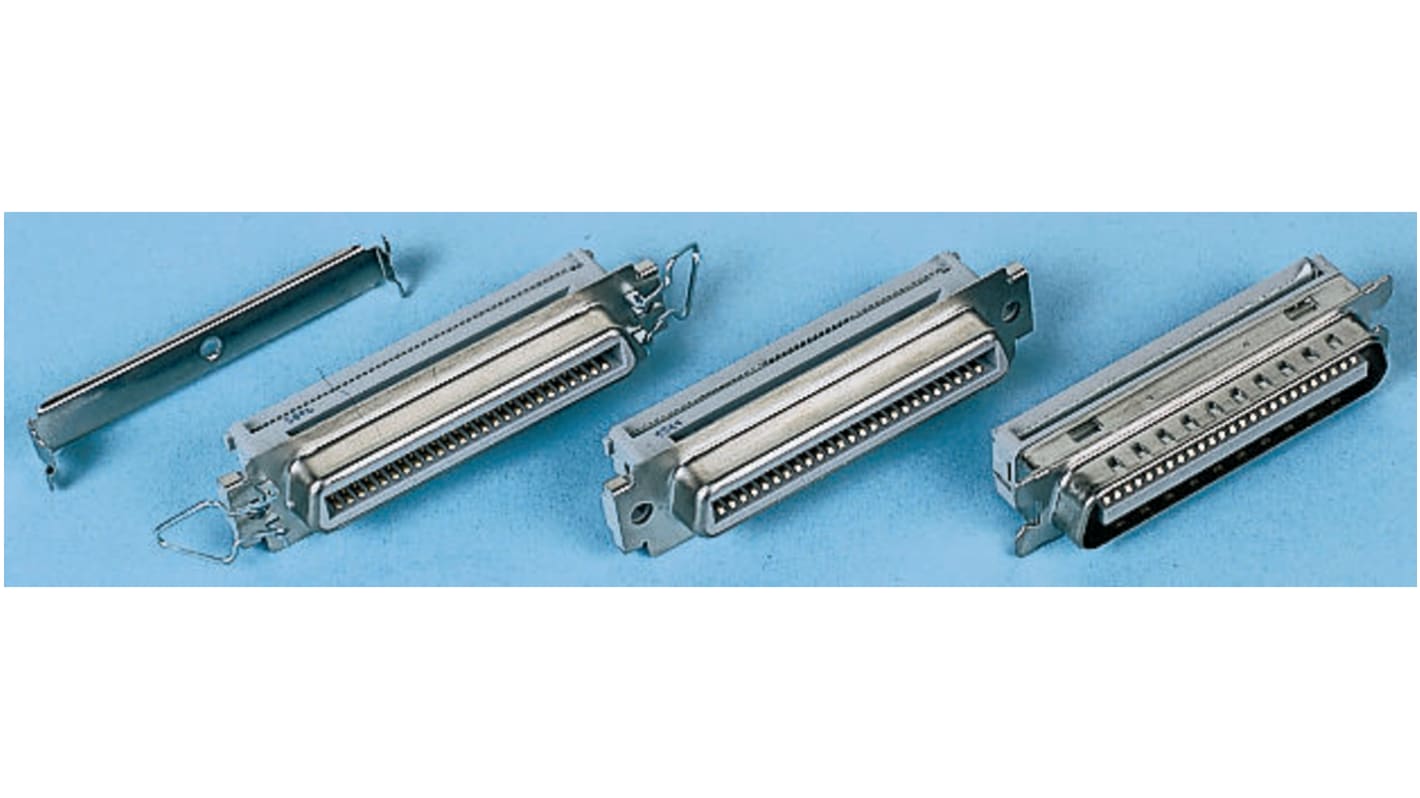

3M, 3549 Female 24 Pin Right Angle Cable Mount SCSI Connector 2.16mm Pitch, IDT
- RS Stock No.:
- 323-8135
- Mfr. Part No.:
- 3549-2002
- Brand:
- 3M
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 323-8135
- Mfr. Part No.:
- 3549-2002
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | 3M | |
Gender | Female | |
Number of Contacts | 24 | |
Body Orientation | Right Angle | |
Mounting Type | Cable Mount | |
Contact Material | Copper Alloy | |
Contact Plating | Gold over Nickel | |
Housing Material | Steel | |
Pitch | 2.16mm | |
Current Rating | 1A | |
Voltage Rating | 1 kV | |
Termination Method | IDT | |
Series | 3549 | |
Length | 55.1mm | |
Minimum Operating Temperature | -55°C | |
Width | 20.8mm | |
Depth | 20.57mm | |
Maximum Operating Temperature | +105°C | |
Select all | ||
---|---|---|
Brand 3M | ||
Gender Female | ||
Number of Contacts 24 | ||
Body Orientation Right Angle | ||
Mounting Type Cable Mount | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
Housing Material Steel | ||
Pitch 2.16mm | ||
Current Rating 1A | ||
Voltage Rating 1 kV | ||
Termination Method IDT | ||
Series 3549 | ||
Length 55.1mm | ||
Minimum Operating Temperature -55°C | ||
Width 20.8mm | ||
Depth 20.57mm | ||
Maximum Operating Temperature +105°C | ||
Metal Delta Ribbon Connectors
Metallic front face for excellent protection from EMI/ESD
1.27mm pitch at rear level to receive strip cable
Body is shiny nickel steel-coated
Insert threading 4.40 UNC
Temperature range -58°C to +105°C
1.27mm pitch at rear level to receive strip cable
Body is shiny nickel steel-coated
Insert threading 4.40 UNC
Temperature range -58°C to +105°C
3M SCSI Connector, 1A Current Rating, IDT Termination - 3549-2002
Get your devices talking among themselves with this SCSI connector from 3M. It links up accessories like SATA disk drives to your computer in a jiffy. As the unit is rear-mounting, you can ground the connection directly to your cabinet. This minimises the risk of shocks and electrical fires. Thanks to the sturdy contact design, you can insert and withdraw cabling without risking damage, making this a versatile option for use around the office.
• Copper contact is highly conductive for fast data transmission
• Gold plating provides additional protection against corrosion for long-lasting use
• Wide operating temperature range between -55°C and +105°C for use in demanding settings
• Gold plating provides additional protection against corrosion for long-lasting use
• Wide operating temperature range between -55°C and +105°C for use in demanding settings
Applications
• Office electronics
• Data centres
• IT networks
• Data centres
• IT networks
What's the IDT termination method?
Integrated termination technology (IDT) is a high-speed communication system that keeps signals intact to make every transmission crystal-clear.
Standards
MIL-G-45204
Mini Delta Ribbon (MDR)
Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications
Finger releasable latching backshells for cable mounting applications
A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.
