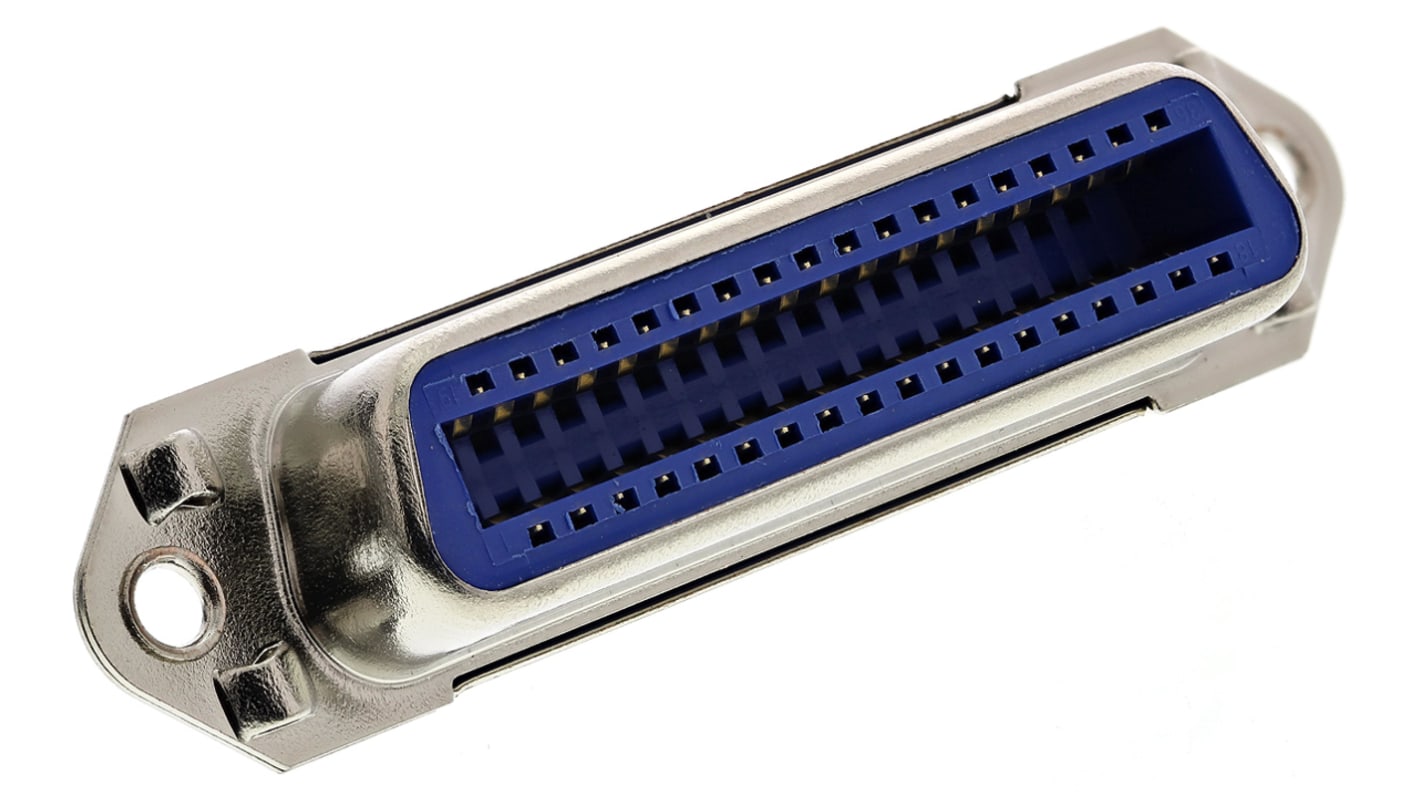

RS PRO 36 Pin Straight Through Hole SCSI Connector 2.16mm Pitch, Solder
- RS Stock No.:
- 239-1128
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£2.31
(exc. VAT)
£2.77
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 154 unit(s) ready to ship
- Plus 71 unit(s) ready to ship from another location
- Plus 300 unit(s) shipping from 26 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £2.31 |
| 15 - 49 | £2.19 |
| 50 - 99 | £2.09 |
| 100 - 249 | £1.91 |
| 250 + | £1.87 |
*price indicative
- RS Stock No.:
- 239-1128
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Contacts | 36 | |
| Body Orientation | Straight | |
| Mounting Type | Through Hole | |
| Contact Material | Brass | |
| Pitch | 2.16mm | |
| Current Rating | 12A | |
| Termination Method | Solder | |
| Series | Centronics | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Contacts 36 | ||
Body Orientation Straight | ||
Mounting Type Through Hole | ||
Contact Material Brass | ||
Pitch 2.16mm | ||
Current Rating 12A | ||
Termination Method Solder | ||
Series Centronics | ||
- COO (Country of Origin):
- TW
RS PRO 2.16 mm Pitch 36 Way Straight PCB Socket, Through Hole, Solder Termination
You can use this RS PRO straight printed circuit board (PCB) socket to connect two PCBs without the need for cabling or soldering. This type of socket allows you to easily connect and disconnect your PCBs, giving you more flexibility and simplifying the assembly process.
The connector socket features gold-plated ribbon contacts to ensure durability and a reliable connection. The contacts contain thermoplastic insulation that complies with Underwriters Laboratories UL94V-0 standard, which is the highest level of flame retardancy for plastics. The product is fitted with spring clips so you can assemble it easier. It also has metal covers to provide extra shielding and keep the connector protected from wear and tear.
This product is rigorously tested against electrostatic discharge (ESD) criteria. It complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, so you can be certain the risk of ESD is reduced.
The connector socket features gold-plated ribbon contacts to ensure durability and a reliable connection. The contacts contain thermoplastic insulation that complies with Underwriters Laboratories UL94V-0 standard, which is the highest level of flame retardancy for plastics. The product is fitted with spring clips so you can assemble it easier. It also has metal covers to provide extra shielding and keep the connector protected from wear and tear.
This product is rigorously tested against electrostatic discharge (ESD) criteria. It complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, so you can be certain the risk of ESD is reduced.
Features and Benefits
• Straight body orientation
• Brass contact material
• Current rating of 12 A
• Through-hole mounting type
• 36 contacts
• Pitch of 2.16 mm
• Centronics series
• Solder termination method
• Brass contact material
• Current rating of 12 A
• Through-hole mounting type
• 36 contacts
• Pitch of 2.16 mm
• Centronics series
• Solder termination method
