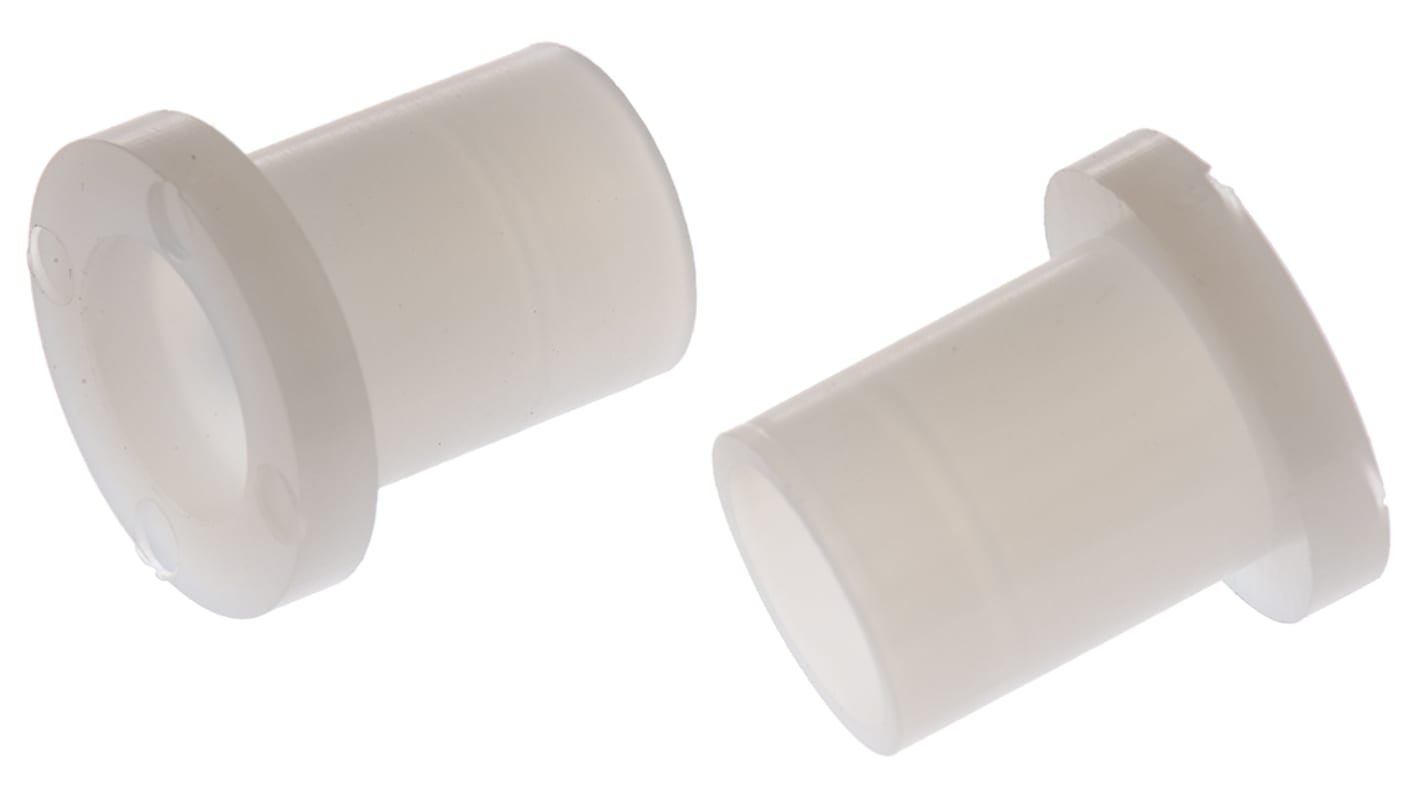

RS PRO Nylon Screw Insulator, M8, 12mm
- RS Stock No.:
- 178-894
- Brand:
- RS PRO
View all Screw Insulators
Discontinued product
- RS Stock No.:
- 178-894
- Brand:
- RS PRO
- COO (Country of Origin):
- US
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Nylon Screw Insulators
Although primarily intended for the isolation of metal screws, these insulating spacers are also suitable for use as lightly loaded bearings.
Note
Dimensions refering to the line drawing:
Dimension A is Flange Diameter
Dimension B is Flanges
Dimension C is Body Diameter
Dimension D is Hole Diameter
Dimension A is Flange Diameter
Dimension B is Flanges
Dimension C is Body Diameter
Dimension D is Hole Diameter
Plain Spacers & Screw Insulators
Plain Spacers - PVC, Nylon & Nickel Plated Brass
Screw Insulators
Specifications
| Attribute | Value |
| For Screw Size | M8 |
| Inside Diameter | 8.1mm |
| Body Outside Diameter | 10mm |
| Body Length | 12mm |
| Flange Diameter | 14.2mm |
| Flange Thickness | 2.5 mm |
| Material | Nylon |
