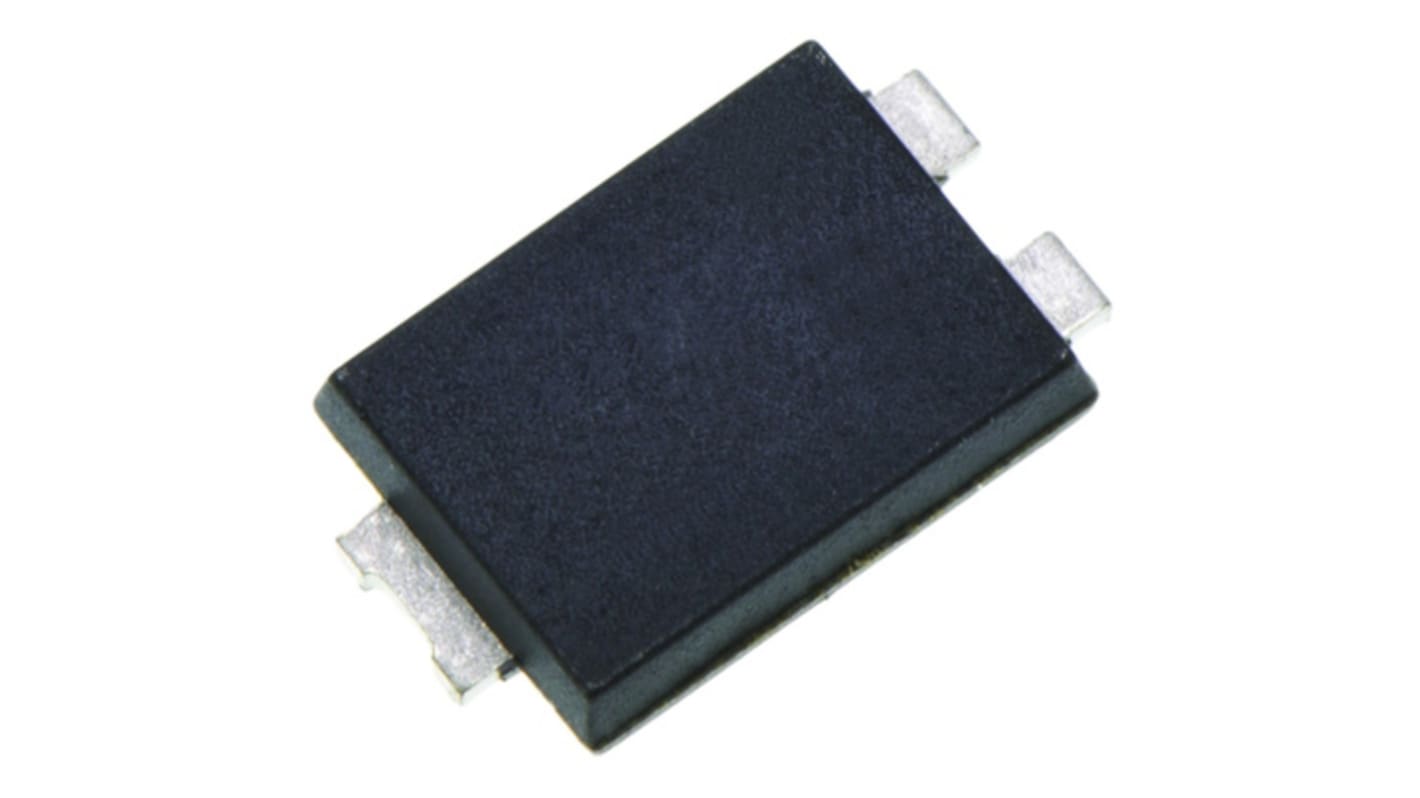

DiodesZetex 60 V 20 A Diode Barrier 3-Pin PowerDI5 SBRT20U60SP5-7
- RS Stock No.:
- 921-1246
- Mfr. Part No.:
- SBRT20U60SP5-7
- Brand:
- DiodesZetex
Bulk discount available
Subtotal (1 pack of 10 units)*
£5.82
(exc. VAT)
£6.98
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 60 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.582 | £5.82 |
| 50 - 90 | £0.48 | £4.80 |
| 100 - 490 | £0.417 | £4.17 |
| 500 - 990 | £0.371 | £3.71 |
| 1000 + | £0.332 | £3.32 |
*price indicative
- RS Stock No.:
- 921-1246
- Mfr. Part No.:
- SBRT20U60SP5-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Mount Type | Surface | |
| Product Type | Diode | |
| Package Type | PowerDI5 | |
| Maximum Continuous Forward Current If | 20A | |
| Peak Reverse Repetitive Voltage Vrrm | 60V | |
| Series | 20A TrenchSBR | |
| Diode Configuration | Single | |
| Rectifier Type | Barrier | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Forward Voltage Vf | 530mV | |
| Peak Reverse Current Ir | 80mA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 320A | |
| Maximum Operating Temperature | 150°C | |
| Length | 5.45mm | |
| Height | 1.1mm | |
| Standards/Approvals | FBI | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Mount Type Surface | ||
Product Type Diode | ||
Package Type PowerDI5 | ||
Maximum Continuous Forward Current If 20A | ||
Peak Reverse Repetitive Voltage Vrrm 60V | ||
Series 20A TrenchSBR | ||
Diode Configuration Single | ||
Rectifier Type Barrier | ||
Pin Count 3 | ||
Minimum Operating Temperature -55°C | ||
Maximum Forward Voltage Vf 530mV | ||
Peak Reverse Current Ir 80mA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 320A | ||
Maximum Operating Temperature 150°C | ||
Length 5.45mm | ||
Height 1.1mm | ||
Standards/Approvals FBI | ||
Automotive Standard AEC-Q101 | ||
High Performance Rectifiers, SBRT (Super Barrier Rectifier Trench), Diodes Inc
Diodes and Rectifiers, Diodes Inc
