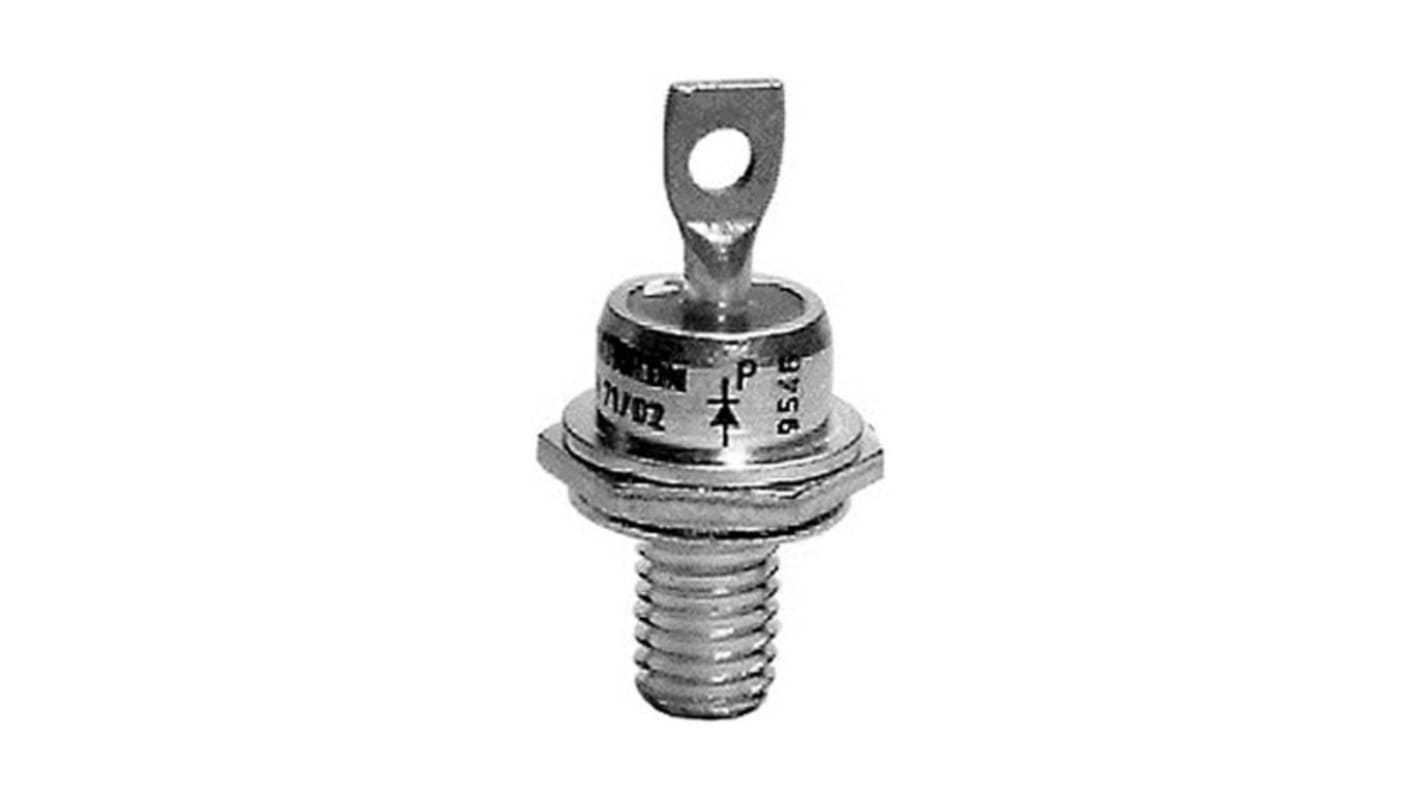

Semikron 1600V 95A, Rectifier Diode, 2-Pin E 11 SKN 71/16
- RS Stock No.:
- 905-6015
- Mfr. Part No.:
- SKN 71/16
- Brand:
- Semikron
103 In stock - FREE next working day delivery available
1 available from Europe for delivery within 1 working day(s).
Added
Price Each
£11.74
(exc. VAT)
£14.09
(inc. VAT)
| Units | Per unit |
| 1 - 11 | £11.74 |
| 12 - 23 | £10.32 |
| 24 - 35 | £10.04 |
| 36 - 71 | £9.80 |
| 72 + | £9.53 |
- RS Stock No.:
- 905-6015
- Mfr. Part No.:
- SKN 71/16
- Brand:
- Semikron
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- BR
Product Details
Stud Mounting Rectifier Diodes
High current rectifier diodes from Semikron housed in standard stud-mounting cases. Due to the excellent thermal coupling between the device and heatsink stud mounting offers high reliability at high operating currents. With voltage ratings of up to 1700 V these diodes are suitable for most high power rectification applications. Both Stud Anode and Stud Cathode diode configurations are available.
High voltage and current ratings
Robust high-reliability hermetically sealed case
Low thermal resistance between device and heatsink
SKN types have the Anode connected to the stud body
SKR types have the Cathode connected to the stud body
Robust high-reliability hermetically sealed case
Low thermal resistance between device and heatsink
SKN types have the Anode connected to the stud body
SKR types have the Cathode connected to the stud body
Supplied with
Mounting hardware
Diodes and Rectifiers, Semikron
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Thread Mount |
| Package Type | E 11 |
| Maximum Continuous Forward Current | 95A |
| Peak Reverse Repetitive Voltage | 1600V |
| Diode Configuration | Stud Anode |
| Rectifier Type | High Voltage |
| Diode Type | Rectifier |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.5V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Diameter | 17mm |
| Peak Non-Repetitive Forward Surge Current | 1.2kA |
- RS Stock No.:
- 905-6015
- Mfr. Part No.:
- SKN 71/16
- Brand:
- Semikron
