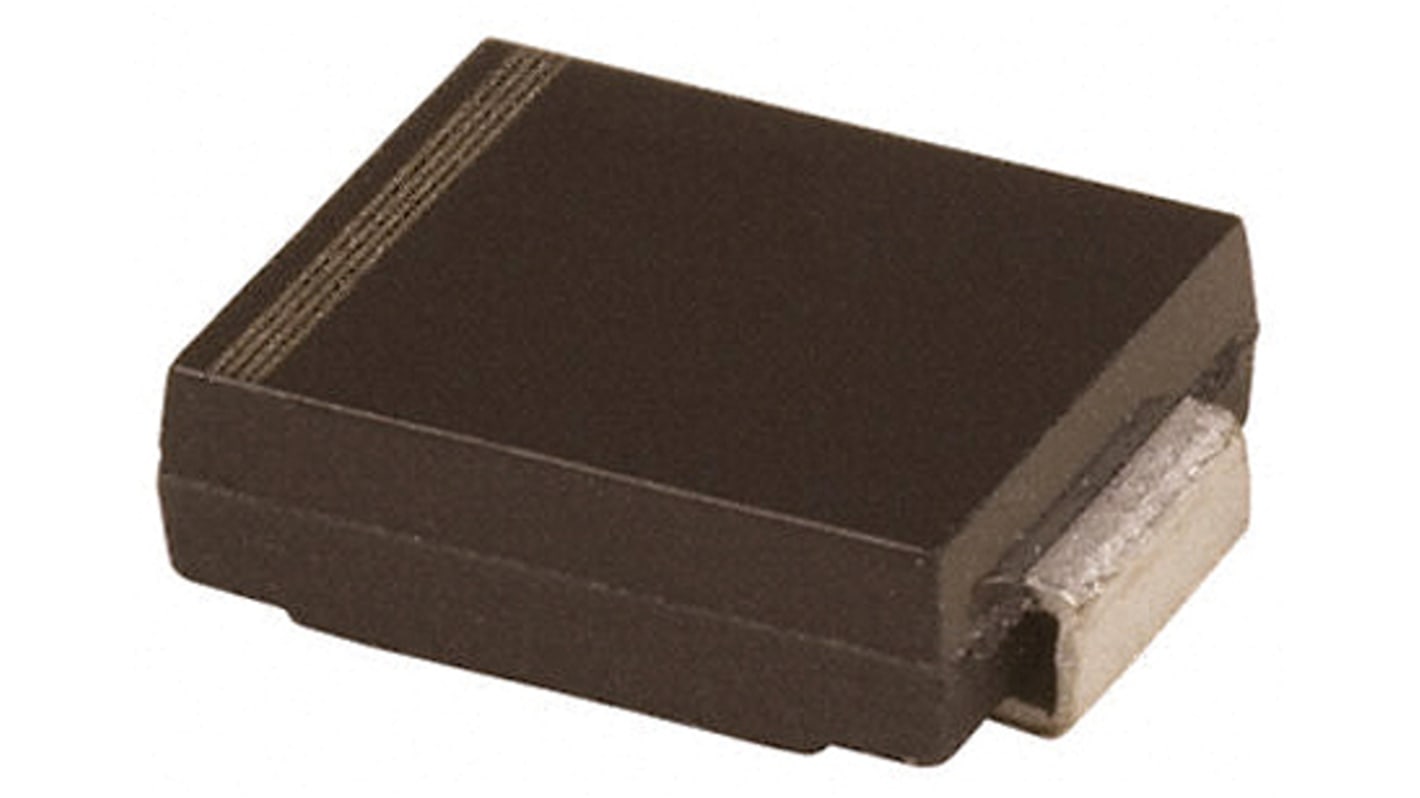

HY Electronic Corp 1000V 3A, Silicon Junction Diode, 2-Pin DO-214AB UF3M

View this category
Discontinued
RS Stock No.:
903-3456
Mfr. Part No.:
UF3M
Brand:
HY Electronic Corp
Find similar products by selecting one or more attributes.
Select all

Brand

HY Electronic Corp

Mounting Type

Surface Mount

Package Type

DO-214AB (SMC)

Maximum Continuous Forward Current

3A

Peak Reverse Repetitive Voltage

1000V

Diode Configuration

Single

Rectifier Type

Fast Recovery

Diode Type

Silicon Junction

Pin Count

2

Maximum Forward Voltage Drop

1.7V

Number of Elements per Chip

1

Diode Technology

Silicon Junction

Peak Reverse Recovery Time

75ns

Peak Non-Repetitive Forward Surge Current

100A

COO (Country of Origin):
CN

Ultrafast Recovery Rectifier- Surface Mount, HY Electronic (Cayman) Limited


HY Electronics (Cayman) ltd present the ultrafast UF1X, UF2X and UF3X Series surface mount rectifiers. This series of glass passivated rectifiers range from 50 to 1000 volts with a forward current of 1 Amp to 3 Amps. They have a cathode polarity and are very efficient with their ultra-fast switching capability.

UF1X Series - 50 to 1000 Volts, 1A (SMA)
UF2x Series - 50 to 1000 Volts, 2A (SMB)
UF3X Series - 50 to 1000 Volts, 3A (SMC)

· Low reverse leakage current
· Low forward voltage drop
· Plastic material carries UL recognition 94V-0
· Diffused junction


Diodes and Rectifiers, HY Electronic (Cayman) Limited
