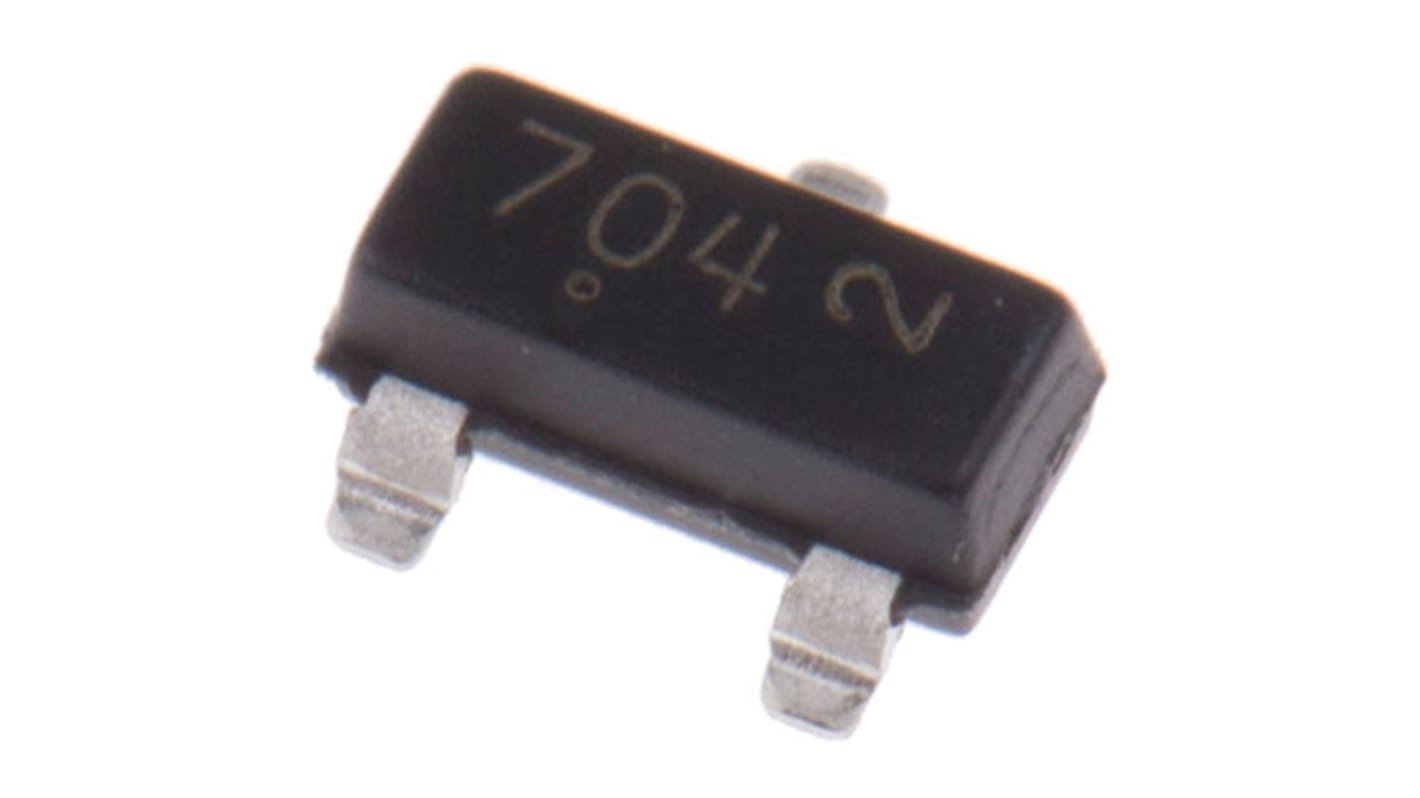

Vishay Dual Switching Diode, Common Cathode, 3-Pin SOT-23 BAT54C-E3-18
- RS Stock No.:
- 902-6657
- Mfr. Part No.:
- BAT54C-E3-18
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 500 units)*
£15.50
(exc. VAT)
£18.50
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 500 - 500 | £0.031 | £15.50 |
| 1000 - 1500 | £0.027 | £13.50 |
| 2000 - 3500 | £0.024 | £12.00 |
| 4000 - 5500 | £0.022 | £11.00 |
| 6000 + | £0.022 | £11.00 |
*price indicative
- RS Stock No.:
- 902-6657
- Mfr. Part No.:
- BAT54C-E3-18
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Diode Configuration | Common Cathode | |
| Mounting Type | Surface Mount | |
| Number of Elements per Chip | 2 | |
| Package Type | SOT-23 | |
| Diode Technology | Schottky | |
| Pin Count | 3 | |
| Maximum Forward Voltage Drop | 800mV | |
| Minimum Operating Temperature | -55 °C | |
| Maximum Operating Temperature | +125 °C | |
| Length | 3.1mm | |
| Width | 1.43mm | |
| Height | 1.05mm | |
| Dimensions | 3.1 x 1.43 x 1.05mm | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Diode Configuration Common Cathode | ||
Mounting Type Surface Mount | ||
Number of Elements per Chip 2 | ||
Package Type SOT-23 | ||
Diode Technology Schottky | ||
Pin Count 3 | ||
Maximum Forward Voltage Drop 800mV | ||
Minimum Operating Temperature -55 °C | ||
Maximum Operating Temperature +125 °C | ||
Length 3.1mm | ||
Width 1.43mm | ||
Height 1.05mm | ||
Dimensions 3.1 x 1.43 x 1.05mm | ||
- COO (Country of Origin):
- CN
Small Signal Schottky Diodes, Vishay Semiconductor
Schottky Rectifiers are semiconductor diodes that exhibit very low forward voltage drop with a very fast switching action. The reverse recovery times of Schottky diodes are extremely quick. Schottky diodes are suitable for applications requiring fast switching and low power loss.
