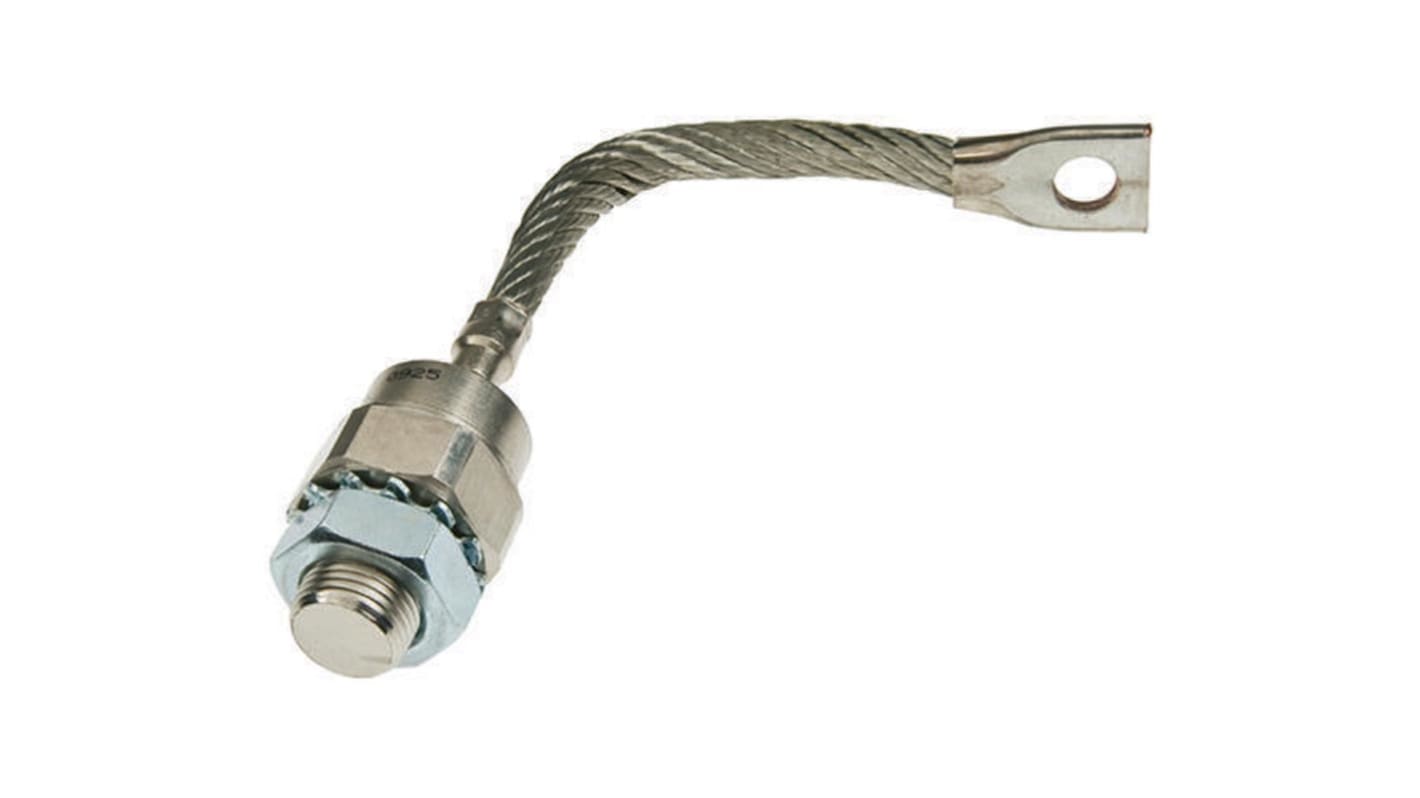

Vishay 1000V 150A, Rectifier Diode, 2-Pin DO-205AA VS-150U100D
- RS Stock No.:
- 873-2301
- Mfr. Part No.:
- VS-150U100D
- Brand:
- Vishay
Available to back order for despatch 29/08/2024
Added
Price Each
£25.80
(exc. VAT)
£30.96
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £25.80 |
| 5 - 9 | £24.54 |
| 10 - 24 | £23.89 |
| 25 - 49 | £23.28 |
| 50 + | £22.70 |
- RS Stock No.:
- 873-2301
- Mfr. Part No.:
- VS-150U100D
- Brand:
- Vishay
Technical Reference
- Standard Recovery Diodes -Stud Version - 150 A Datasheet
- ESD Control Selection Guide V1
- Application Note- Design Guidelines for Schottky Rectifiers
- Application Note- Fundamentals of Rectifiers
- Application Note- Rectifiers for Power Factor Correction
- Application Note- Physical Explanation
- Diodes Group Body Marking
- Application Note- High Speed Data Line Protection
- Packaging Information
- Pad Layouts/Soldering Process
- Application Note- Power Factor Correction with Ultrafast Diodes
- Application Note- SUPERECTIFIER® Design Brings New Level of Reliability to Surface Mount Components
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details
Standard Recovery Rectifiers, over 40A
Versatile and high-efficiency Standard Recovery Power Diodes in industry-standard package styles.
Diodes and Rectifiers, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Thread Mount |
| Package Type | DO-205AA |
| Maximum Continuous Forward Current | 150A |
| Peak Reverse Repetitive Voltage | 1000V |
| Diode Configuration | Stud Cathode |
| Rectifier Type | Recovery Rectifier |
| Diode Type | Rectifier |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.47V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Non-Repetitive Forward Surge Current | 3.1kA |
