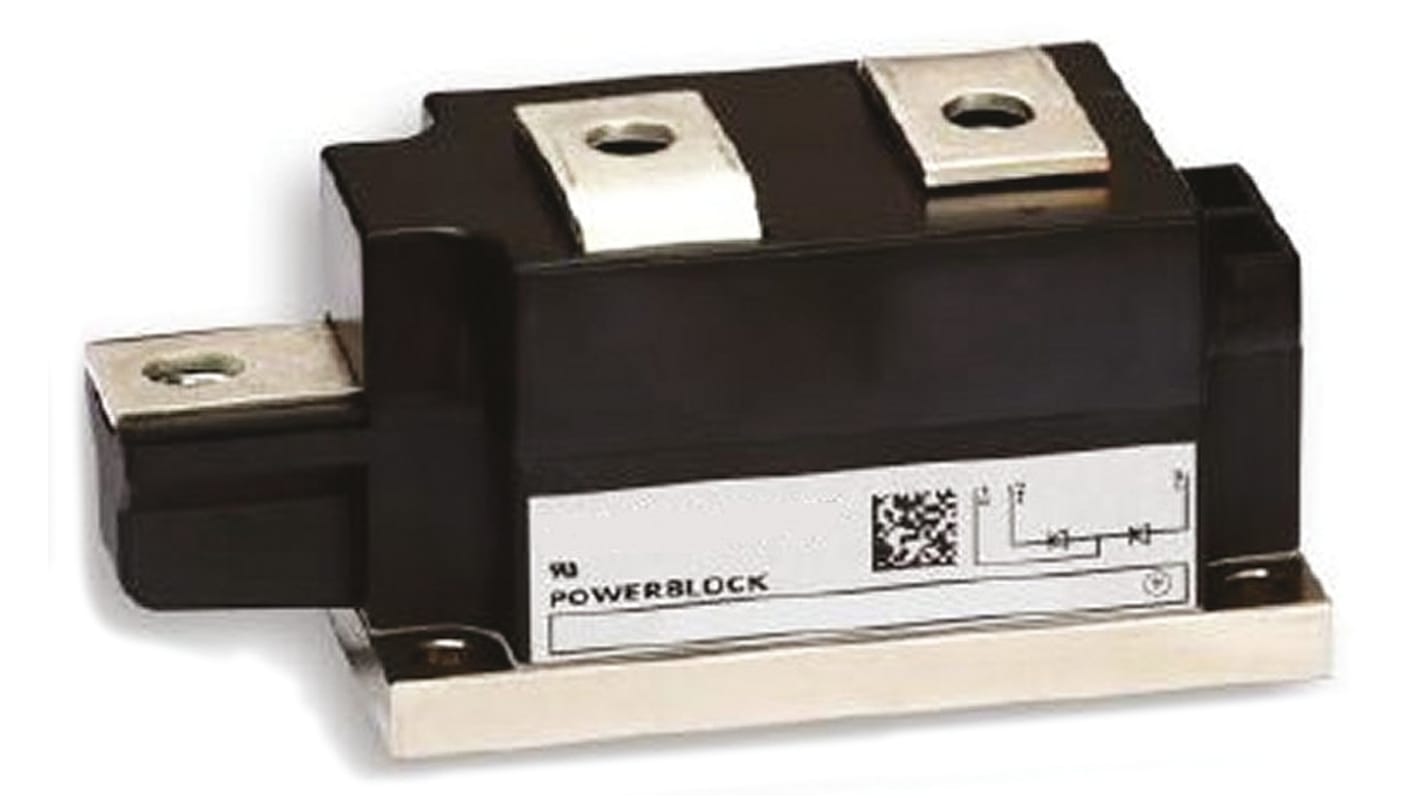

Infineon 1200V 350A, Dual Rectifier Diode, 3-Pin DD350N12KHPSA1
- RS Stock No.:
- 839-1089
- Mfr. Part No.:
- DD350N12KHPSA1
- Brand:
- Infineon
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£116.73
(exc. VAT)
£140.08
(inc. VAT)
- RS Stock No.:
- 839-1089
- Mfr. Part No.:
- DD350N12KHPSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Mounting Type | Panel Mount | |
| Maximum Continuous Forward Current | 350A | |
| Peak Reverse Repetitive Voltage | 1200V | |
| Diode Configuration | Series | |
| Rectifier Type | General Purpose | |
| Diode Type | Rectifier | |
| Pin Count | 3 | |
| Maximum Forward Voltage Drop | 1.28V | |
| Number of Elements per Chip | 2 | |
| Diode Technology | Silicon Junction | |
| Peak Non-Repetitive Forward Surge Current | 13kA | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Mounting Type Panel Mount | ||
Maximum Continuous Forward Current 350A | ||
Peak Reverse Repetitive Voltage 1200V | ||
Diode Configuration Series | ||
Rectifier Type General Purpose | ||
Diode Type Rectifier | ||
Pin Count 3 | ||
Maximum Forward Voltage Drop 1.28V | ||
Number of Elements per Chip 2 | ||
Diode Technology Silicon Junction | ||
Peak Non-Repetitive Forward Surge Current 13kA | ||
Rectifier Diode Module, DD Series, Infineon
The Infineon PowerBLOCK Dual Diodes (DD Series) Rectifier Diode modules have configurations such as Fast diode, and Rectifier diodes. The pressure contact technology rectifier diode module ranges from 20mm up to 60mm, with voltage ranges up to 1800V and 600A current. The PowerBLOCK Rectifier diode has an electrical insulated base which consists of an isolated copper base plate. They can be used in power controllers, soft starter and drive applications.
PowerBLOCK Housing
Easy mounting
Pressure Contact technology
Fail safe / Short on fail - preventing arcing on fail
Easy mounting
Pressure Contact technology
Fail safe / Short on fail - preventing arcing on fail
Diodes and Rectifiers, Infineon
