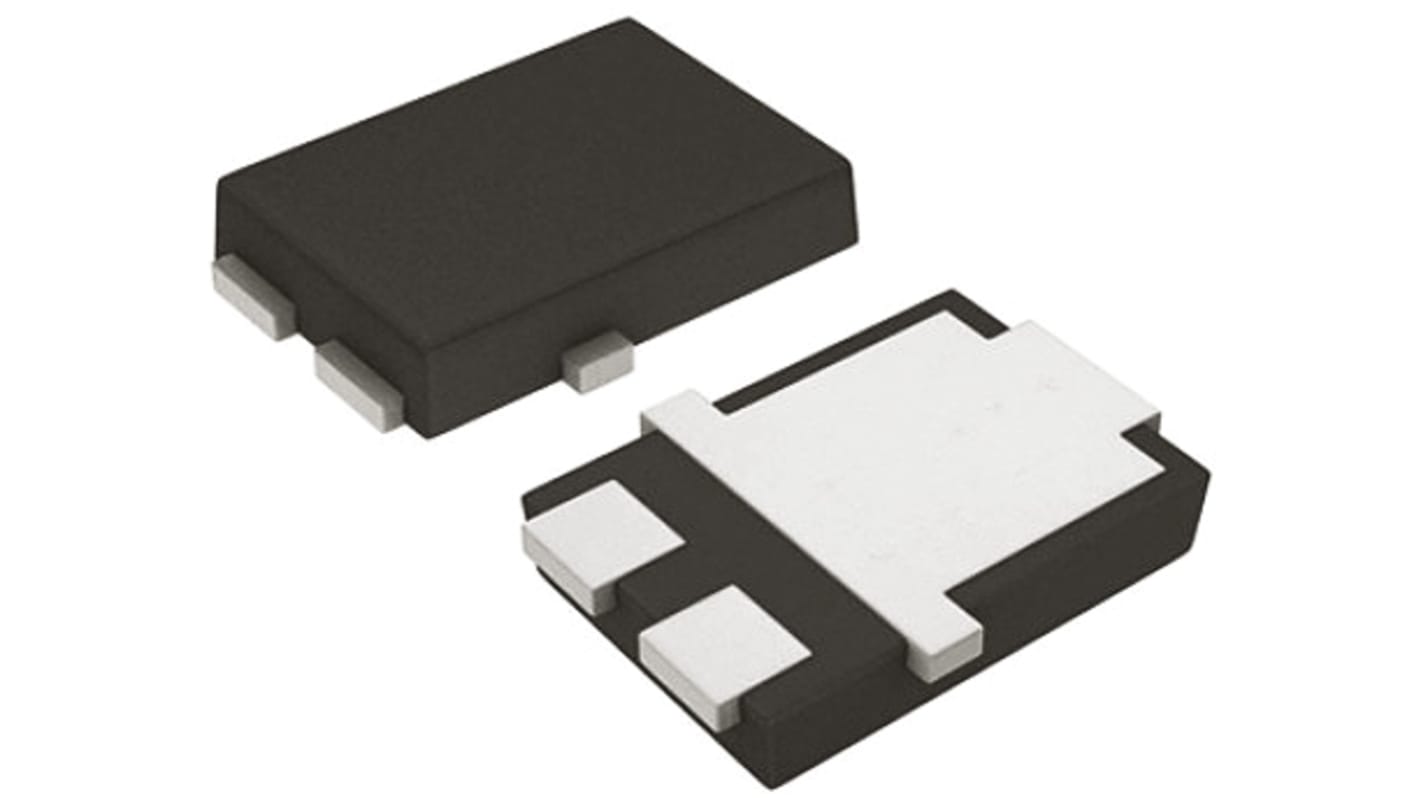

Vishay 45 V 10 A Diode Schottky 3-Pin TO-277 V10PL45-M3/86A

View this category
Bulk discount available

Subtotal (1 tape of 20 units)*

£9.94

(exc. VAT)

£11.92

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 2,460 unit(s), ready to ship
Units
Per unit
Per Tape*
20 - 80£0.497£9.94
100 - 180£0.387£7.74
200 - 480£0.323£6.46
500 - 980£0.248£4.96
1000 +£0.181£3.62

*price indicative

Packaging Options:
RS Stock No.:
818-4294
Mfr. Part No.:
V10PL45-M3/86A
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Mount Type

Surface

Product Type

Diode

Package Type

TO-277

Maximum Continuous Forward Current If

10A

Peak Reverse Repetitive Voltage Vrrm

45V

Diode Configuration

Single

Series

V10

Rectifier Type

Schottky

Pin Count

3

Maximum Forward Voltage Vf

520mV

Minimum Operating Temperature

-40°C

Peak Reverse Current Ir

75mA

Peak Non-Repetitive Forward Surge Current Ifsm

200A

Maximum Operating Temperature

150°C

Standards/Approvals

No

Height

1.2mm

Width

4.75 mm

Length

6.15mm

Automotive Standard

No

COO (Country of Origin):
CN

TMBS - Trench MOS Barrier Schottky Rectifiers, Up to 20A, Vishay Semiconductor


The Trench MOS Barrier Schottky (TMBS) Rectifier Series by Vishay contain a patented trench structure. TMBS rectifiers offer several advantages over planar Schottky rectifiers. At operating voltages of 45V and above planar Schottky rectifiers can lose their advantage of fast switching speeds and low forward drop to a significant degree. The patented TMBS structure addresses these issues by diminishing minority carrier injections to the drift region, therefore minimising stored charges and improving switching speeds.

Features


Patented Trench Structure

Improved efficiency in AC/DC Switched mode-power supplies and DC/DC converters

High power density and low forward voltage

Schottky Rectifiers, Vishay Semiconductor
