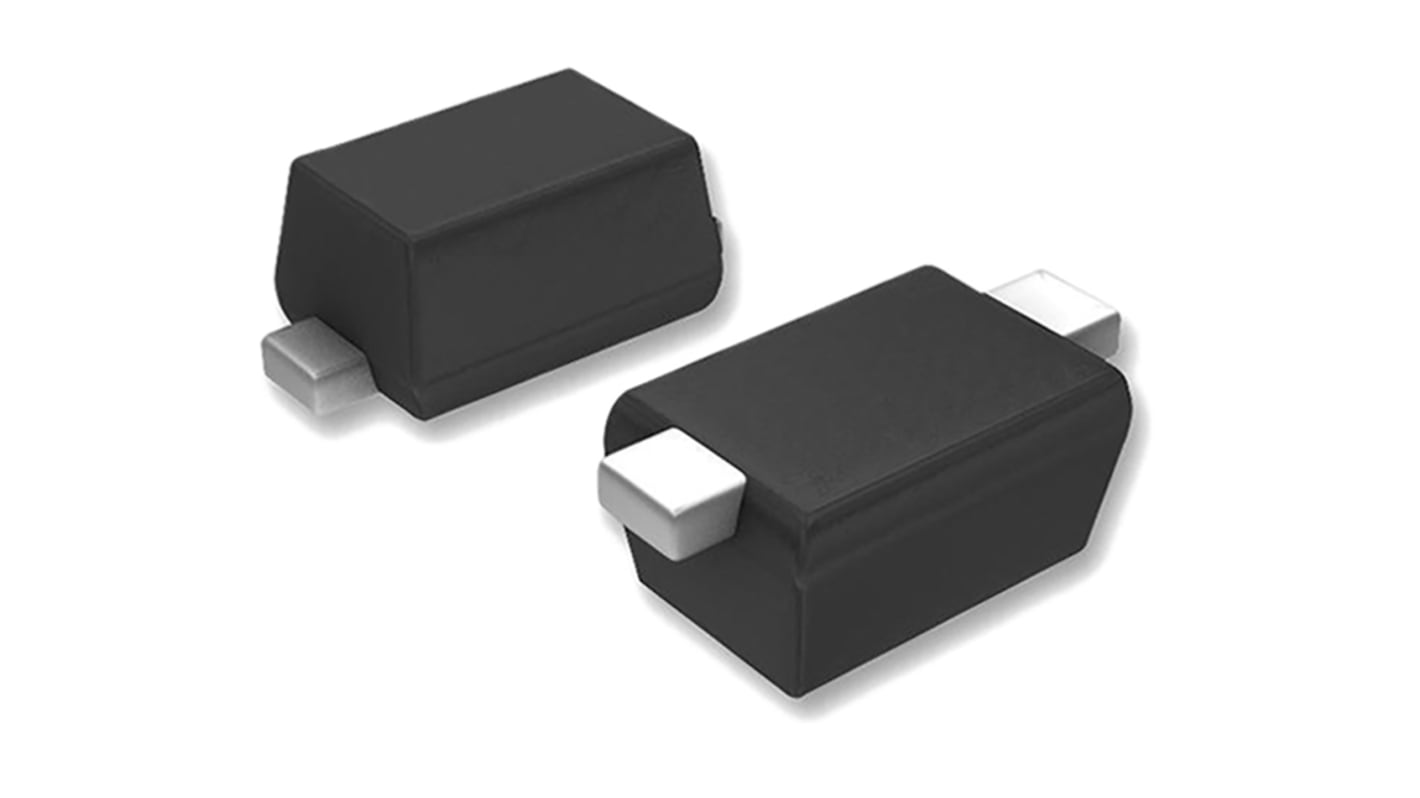

DiodesZetex 40 V 650 mA Diode Low Leakage 2-Pin SOD-523 ZLLS350TA
- RS Stock No.:
- 751-5209
- Mfr. Part No.:
- ZLLS350TA
- Brand:
- DiodesZetex
Subtotal (1 pack of 25 units)*
£5.35
(exc. VAT)
£6.425
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 225 unit(s) ready to ship
- Plus 350 unit(s) ready to ship from another location
- Plus 15,425 unit(s) shipping from 04 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 + | £0.214 | £5.35 |
*price indicative
- RS Stock No.:
- 751-5209
- Mfr. Part No.:
- ZLLS350TA
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | SOD-523 | |
| Maximum Continuous Forward Current If | 650mA | |
| Peak Reverse Repetitive Voltage Vrrm | 40V | |
| Series | ZLLS350 | |
| Diode Configuration | Single | |
| Rectifier Type | Low Leakage | |
| Pin Count | 2 | |
| Maximum Forward Voltage Vf | 1V | |
| Minimum Operating Temperature | -55°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 6A | |
| Peak Reverse Current Ir | 4μA | |
| Maximum Operating Temperature | 150°C | |
| Peak Reverse Recovery Time trr | 1ns | |
| Width | 0.9 mm | |
| Height | 0.65mm | |
| Length | 1.3mm | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Diode | ||
Mount Type Surface | ||
Package Type SOD-523 | ||
Maximum Continuous Forward Current If 650mA | ||
Peak Reverse Repetitive Voltage Vrrm 40V | ||
Series ZLLS350 | ||
Diode Configuration Single | ||
Rectifier Type Low Leakage | ||
Pin Count 2 | ||
Maximum Forward Voltage Vf 1V | ||
Minimum Operating Temperature -55°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 6A | ||
Peak Reverse Current Ir 4μA | ||
Maximum Operating Temperature 150°C | ||
Peak Reverse Recovery Time trr 1ns | ||
Width 0.9 mm | ||
Height 0.65mm | ||
Length 1.3mm | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- CN
Schottky Barrier Diodes, 300mA to 1A, Diodes Inc
Super Barrier Rectifiers (SBR) diodes are the next generation of rectifiers. The two Terminal device has a lower forward voltage (VF) than comparable Schottky diodes. While possessing the thermal stability and high reliability characteristics of PN epitaxial diodes.
Diodes and Rectifiers, Diodes Inc
