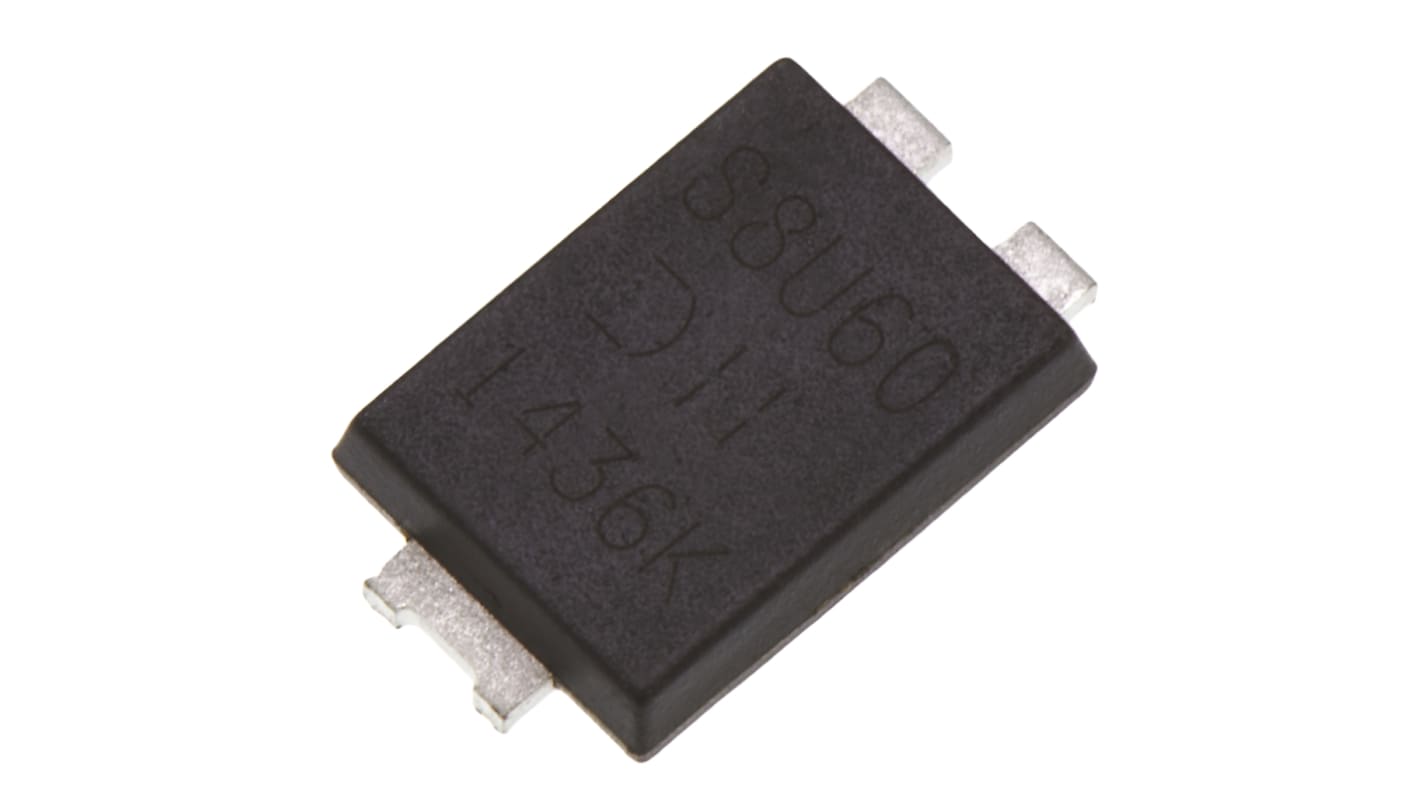

DiodesZetex 60 V 8 A Diode Barrier 3-Pin PowerDI5 SBR8U60P5-13
- RS Stock No.:
- 751-4913
- Mfr. Part No.:
- SBR8U60P5-13
- Brand:
- DiodesZetex
Bulk discount available
Subtotal (1 pack of 10 units)*
£5.46
(exc. VAT)
£6.55
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 120 unit(s) ready to ship
- Plus 3,810 unit(s) shipping from 03 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.546 | £5.46 |
| 50 - 240 | £0.358 | £3.58 |
| 250 - 1240 | £0.35 | £3.50 |
| 1250 - 2490 | £0.32 | £3.20 |
| 2500 + | £0.313 | £3.13 |
*price indicative
- RS Stock No.:
- 751-4913
- Mfr. Part No.:
- SBR8U60P5-13
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | PowerDI5 | |
| Maximum Continuous Forward Current If | 8A | |
| Peak Reverse Repetitive Voltage Vrrm | 60V | |
| Series | 8A SBR | |
| Diode Configuration | Single | |
| Rectifier Type | Barrier | |
| Pin Count | 3 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 280A | |
| Minimum Operating Temperature | -65°C | |
| Peak Reverse Current Ir | 100mA | |
| Maximum Forward Voltage Vf | 530mV | |
| Maximum Operating Temperature | 150°C | |
| Height | 1.15mm | |
| Width | 5.45 mm | |
| Length | 4.05mm | |
| Standards/Approvals | FBI | |
| Automotive Standard | AEC | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Diode | ||
Mount Type Surface | ||
Package Type PowerDI5 | ||
Maximum Continuous Forward Current If 8A | ||
Peak Reverse Repetitive Voltage Vrrm 60V | ||
Series 8A SBR | ||
Diode Configuration Single | ||
Rectifier Type Barrier | ||
Pin Count 3 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 280A | ||
Minimum Operating Temperature -65°C | ||
Peak Reverse Current Ir 100mA | ||
Maximum Forward Voltage Vf 530mV | ||
Maximum Operating Temperature 150°C | ||
Height 1.15mm | ||
Width 5.45 mm | ||
Length 4.05mm | ||
Standards/Approvals FBI | ||
Automotive Standard AEC | ||
- COO (Country of Origin):
- CN
Schottky Barrier Diodes, 2A to 9A, Diodes Inc
Super Barrier Rectifiers (SBR) diodes are the next generation of rectifiers. The two terminal device has a lower forward voltage (VF) than comparable Schottky diodes while possessing the thermal stability and high reliability characteristics of PN epitaxial diodes.
Diodes and Rectifiers, Diodes Inc
