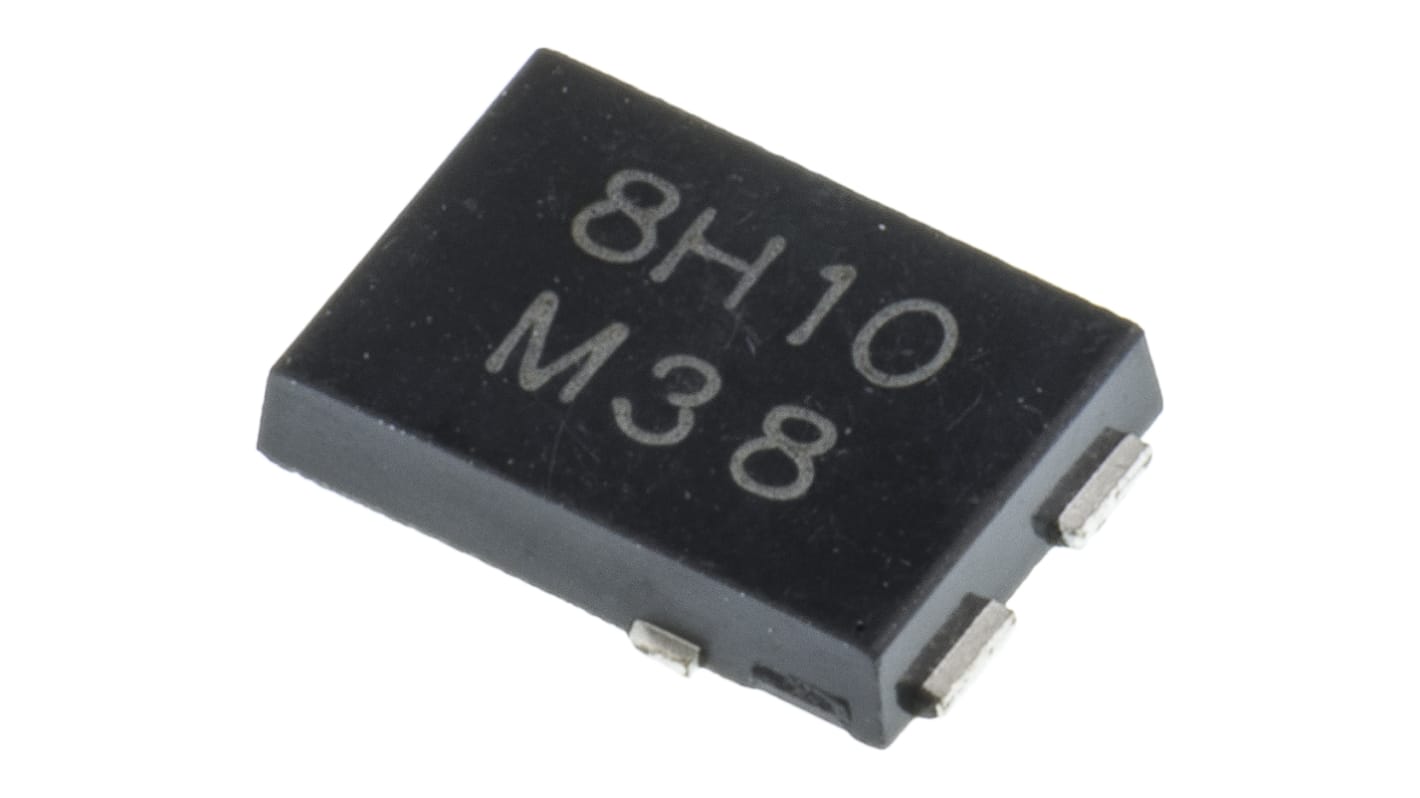

Vishay 100 V 8 A Schottky Rectifier Schottky 3-Pin TO-277A SS8PH10-M3/86A
- RS Stock No.:
- 710-3806
- Mfr. Part No.:
- SS8PH10-M3/86A
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 5 units)*
£1.49
(exc. VAT)
£1.79
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 2,855 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.298 | £1.49 |
| 50 - 245 | £0.262 | £1.31 |
| 250 - 495 | £0.208 | £1.04 |
| 500 - 1245 | £0.20 | £1.00 |
| 1250 + | £0.154 | £0.77 |
*price indicative
- RS Stock No.:
- 710-3806
- Mfr. Part No.:
- SS8PH10-M3/86A
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Schottky Rectifier | |
| Mount Type | Surface | |
| Package Type | TO-277A | |
| Maximum Continuous Forward Current If | 8A | |
| Peak Reverse Repetitive Voltage Vrrm | 100V | |
| Diode Configuration | Single | |
| Series | eSMP | |
| Rectifier Type | Schottky | |
| Pin Count | 3 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A | |
| Minimum Operating Temperature | -55°C | |
| Peak Reverse Current Ir | 2μA | |
| Maximum Forward Voltage Vf | 900mV | |
| Maximum Operating Temperature | 175°C | |
| Height | 1.2mm | |
| Width | 6.15 mm | |
| Length | 4.35mm | |
| Standards/Approvals | JEDEC TO-277A, JESD 201, J-STD-002, J-STD-020, RoHS, UL 94 V-0, JESD 22-B102 | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Schottky Rectifier | ||
Mount Type Surface | ||
Package Type TO-277A | ||
Maximum Continuous Forward Current If 8A | ||
Peak Reverse Repetitive Voltage Vrrm 100V | ||
Diode Configuration Single | ||
Series eSMP | ||
Rectifier Type Schottky | ||
Pin Count 3 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 150A | ||
Minimum Operating Temperature -55°C | ||
Peak Reverse Current Ir 2μA | ||
Maximum Forward Voltage Vf 900mV | ||
Maximum Operating Temperature 175°C | ||
Height 1.2mm | ||
Width 6.15 mm | ||
Length 4.35mm | ||
Standards/Approvals JEDEC TO-277A, JESD 201, J-STD-002, J-STD-020, RoHS, UL 94 V-0, JESD 22-B102 | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- CN
High Performance Schottky Rectifiers 4A to 9A, Vishay Semiconductor
Schottky Rectifiers are semiconductor diodes that exhibit very low forward voltage drop with a very fast switching action. The reverse recovery times of Schottky diodes are extremely quick. Schottky diodes are suitable for applications requiring fast switching and low power loss.
Schottky Rectifiers, Vishay Semiconductor
