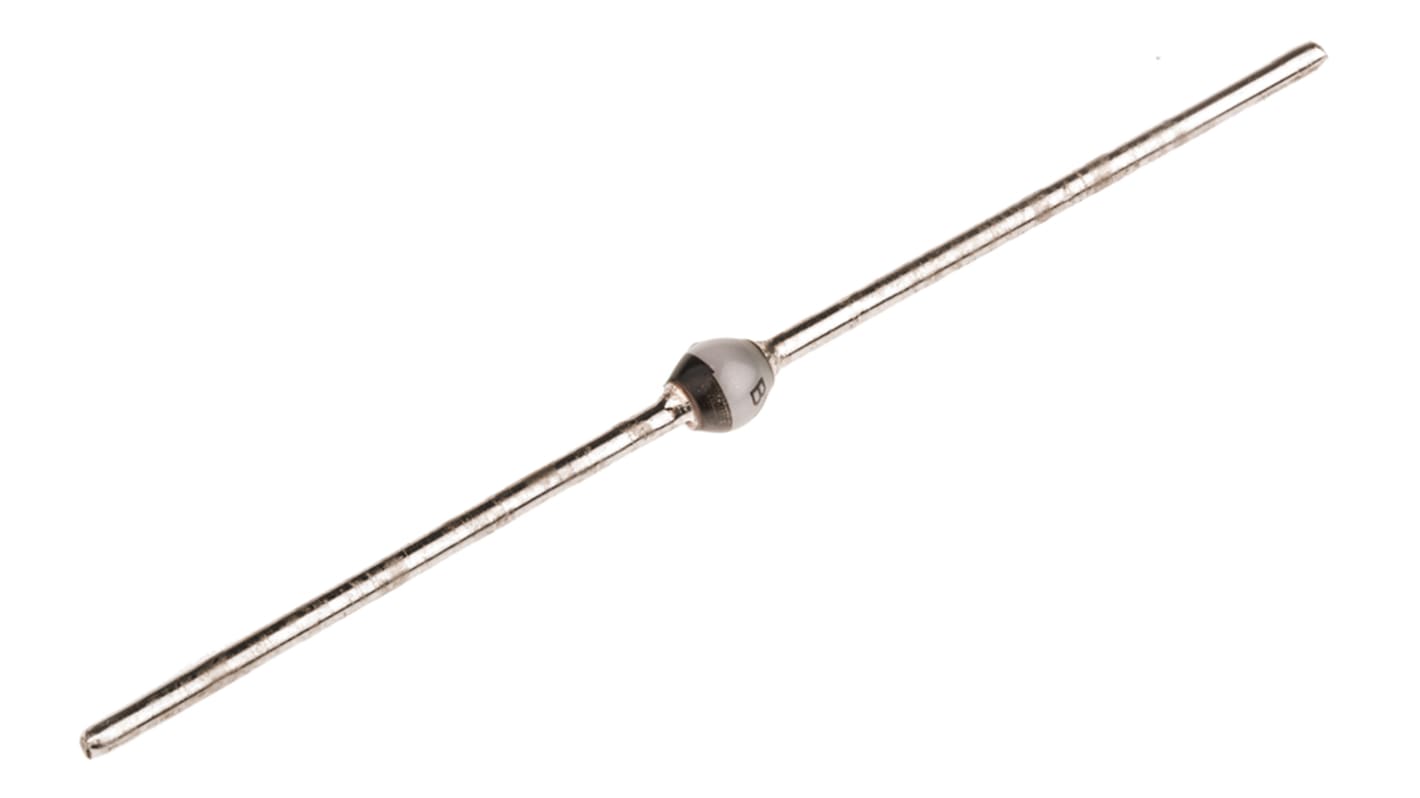

Vishay 1000 V 3 A Fast Avalanche Sinterglass Diode Avalanche 2-Pin SOD-64 BYT56M-TAP
- RS Stock No.:
- 708-7969
- Mfr. Part No.:
- BYT56M-TAP
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 5 units)*
£4.83
(exc. VAT)
£5.795
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 30 left, ready to ship
- Final 4,245 unit(s) shipping from 02 February 2026
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.966 | £4.83 |
| 50 - 245 | £0.87 | £4.35 |
| 250 - 495 | £0.724 | £3.62 |
| 500 - 1245 | £0.676 | £3.38 |
| 1250 + | £0.56 | £2.80 |
*price indicative
- RS Stock No.:
- 708-7969
- Mfr. Part No.:
- BYT56M-TAP
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Through Hole | |
| Product Type | Fast Avalanche Sinterglass Diode | |
| Package Type | SOD-64 | |
| Maximum Continuous Forward Current If | 3A | |
| Peak Reverse Repetitive Voltage Vrrm | 1000V | |
| Diode Configuration | Single | |
| Series | BYT56 | |
| Rectifier Type | Avalanche | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A | |
| Peak Reverse Current Ir | 5μA | |
| Maximum Forward Voltage Vf | 1.4V | |
| Maximum Operating Temperature | 175°C | |
| Peak Reverse Recovery Time trr | 100ns | |
| Height | 4.3mm | |
| Width | 4.3 mm | |
| Length | 4mm | |
| Standards/Approvals | MIL-STD-750 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mount Type Through Hole | ||
Product Type Fast Avalanche Sinterglass Diode | ||
Package Type SOD-64 | ||
Maximum Continuous Forward Current If 3A | ||
Peak Reverse Repetitive Voltage Vrrm 1000V | ||
Diode Configuration Single | ||
Series BYT56 | ||
Rectifier Type Avalanche | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 80A | ||
Peak Reverse Current Ir 5μA | ||
Maximum Forward Voltage Vf 1.4V | ||
Maximum Operating Temperature 175°C | ||
Peak Reverse Recovery Time trr 100ns | ||
Height 4.3mm | ||
Width 4.3 mm | ||
Length 4mm | ||
Standards/Approvals MIL-STD-750 | ||
Automotive Standard No | ||
Fast Recovery Rectifiers 1.4A to 20A, Vishay Semiconductor
Versatile and high-efficiency Fast recovery power diodes in industry-standard package styles.
Diodes and Rectifiers, Vishay Semiconductor
