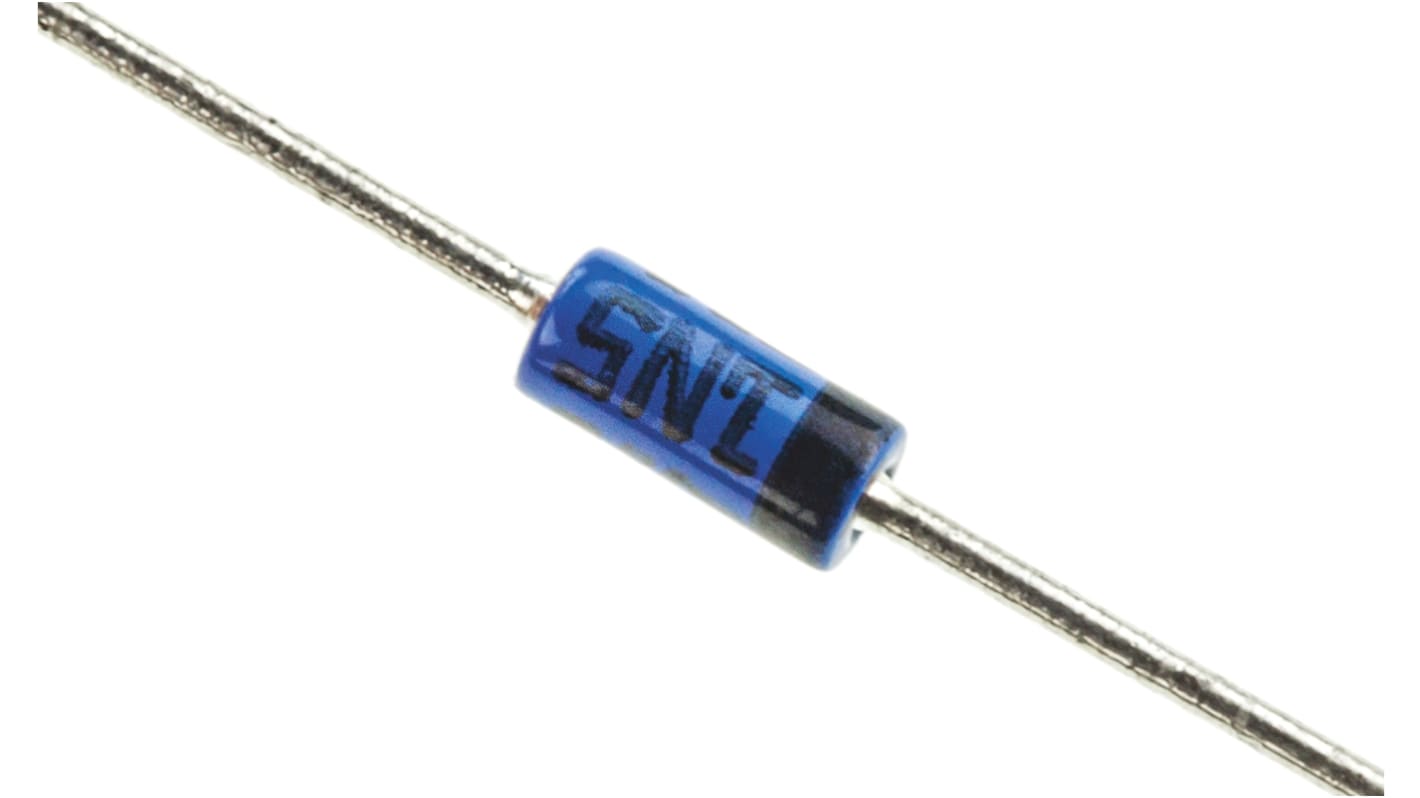

STMicroelectronics 70 V 15 mA Diode Schottky 2-Pin DO-35 1N5711
- RS Stock No.:
- 687-0763
- Mfr. Part No.:
- 1N5711
- Brand:
- STMicroelectronics
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 50 units)*
£1.75
(exc. VAT)
£2.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2,500 unit(s) ready to ship
- Plus 950 unit(s) ready to ship from another location
- Plus 1,800 unit(s) shipping from 19 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 50 | £0.035 | £1.75 |
| 100 - 450 | £0.022 | £1.10 |
| 500 - 950 | £0.022 | £1.10 |
| 1000 - 3950 | £0.021 | £1.05 |
| 4000 + | £0.021 | £1.05 |
*price indicative
- RS Stock No.:
- 687-0763
- Mfr. Part No.:
- 1N5711
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Mount Type | Through Hole | |
| Product Type | Diode | |
| Package Type | DO-35 | |
| Maximum Continuous Forward Current If | 15mA | |
| Peak Reverse Repetitive Voltage Vrrm | 70V | |
| Diode Configuration | Single | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -65°C | |
| Peak Reverse Current Ir | 200nA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 15mA | |
| Maximum Forward Voltage Vf | 410mV | |
| Maximum Operating Temperature | 200°C | |
| Height | 2mm | |
| Length | 4.5mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Mount Type Through Hole | ||
Product Type Diode | ||
Package Type DO-35 | ||
Maximum Continuous Forward Current If 15mA | ||
Peak Reverse Repetitive Voltage Vrrm 70V | ||
Diode Configuration Single | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Minimum Operating Temperature -65°C | ||
Peak Reverse Current Ir 200nA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 15mA | ||
Maximum Forward Voltage Vf 410mV | ||
Maximum Operating Temperature 200°C | ||
Height 2mm | ||
Length 4.5mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Schottky Barrier Diodes, up to 1A, STMicroelectronics
High power, efficiency and density.
Diodes and Rectifiers, STMicroelectronics
