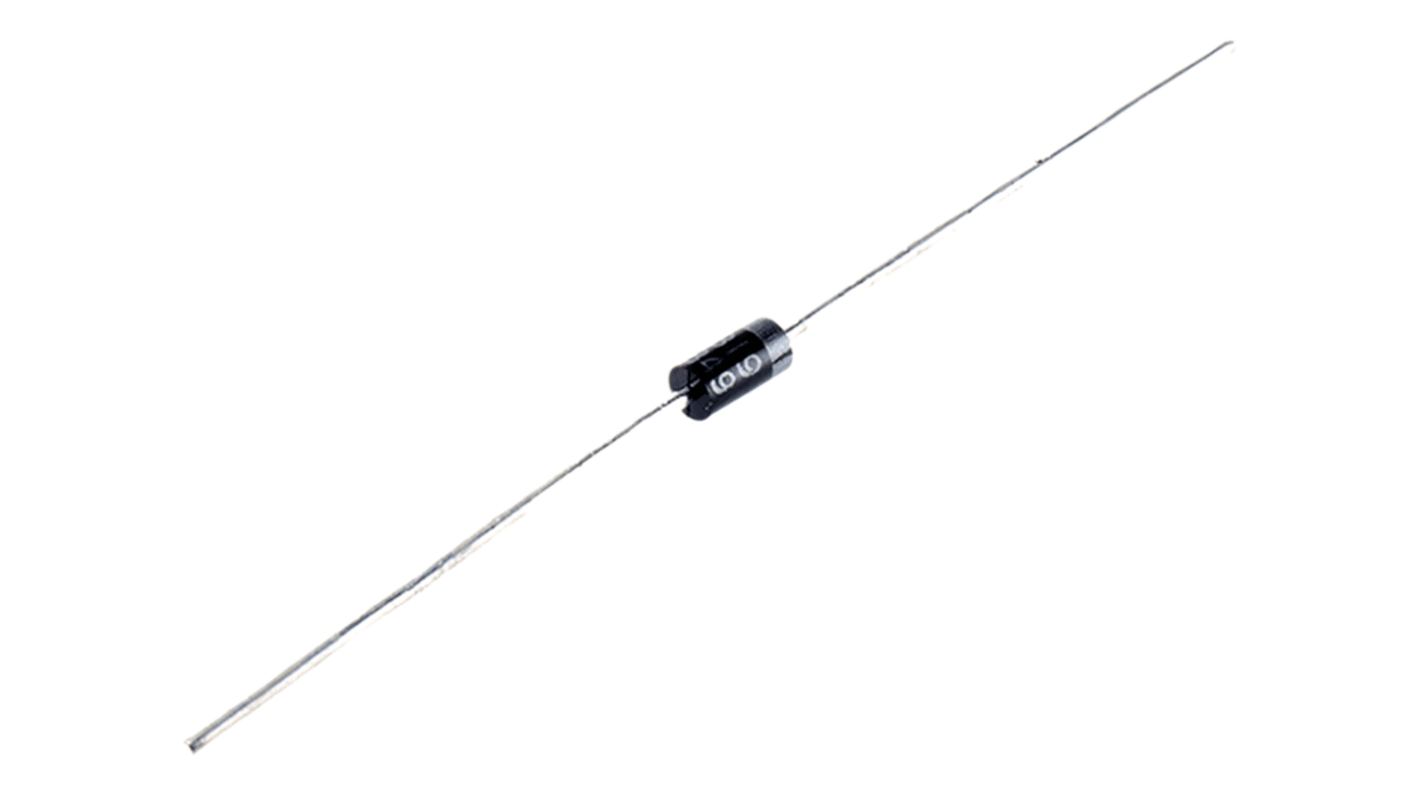

Taiwan Semi 40V 1A, Schottky Diode, 2-Pin DO-41 1N5819
- RS Stock No.:
- 652-7337
- Mfr. Part No.:
- 1N5819
- Brand:
- Taiwan Semiconductor
Bulk discount available
Subtotal (1 pack of 100 units)*
£5.90
(exc. VAT)
£7.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 700 unit(s) ready to ship
- Plus 2,400 unit(s) ready to ship from another location
- Plus 2,200 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
100 - 400 | £0.059 | £5.90 |
500 - 900 | £0.045 | £4.50 |
1000 - 1900 | £0.039 | £3.90 |
2000 - 4900 | £0.035 | £3.50 |
5000 + | £0.032 | £3.20 |
*price indicative
- RS Stock No.:
- 652-7337
- Mfr. Part No.:
- 1N5819
- Brand:
- Taiwan Semiconductor
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Taiwan Semiconductor | |
Mounting Type | Through Hole | |
Package Type | DO-41 | |
Maximum Continuous Forward Current | 1A | |
Peak Reverse Repetitive Voltage | 40V | |
Diode Configuration | Single | |
Rectifier Type | Schottky Rectifier | |
Diode Type | Schottky | |
Pin Count | 2 | |
Maximum Forward Voltage Drop | 900mV | |
Number of Elements per Chip | 1 | |
Diode Technology | Schottky Barrier | |
Diameter | 2.7mm | |
Peak Non-Repetitive Forward Surge Current | 30A | |
Select all | ||
---|---|---|
Brand Taiwan Semiconductor | ||
Mounting Type Through Hole | ||
Package Type DO-41 | ||
Maximum Continuous Forward Current 1A | ||
Peak Reverse Repetitive Voltage 40V | ||
Diode Configuration Single | ||
Rectifier Type Schottky Rectifier | ||
Diode Type Schottky | ||
Pin Count 2 | ||
Maximum Forward Voltage Drop 900mV | ||
Number of Elements per Chip 1 | ||
Diode Technology Schottky Barrier | ||
Diameter 2.7mm | ||
Peak Non-Repetitive Forward Surge Current 30A | ||
Schottky Barrier Diodes, up to 1A, Taiwan Semiconductor
Low power loss
Low foward voltage drop
High current capability
Low foward voltage drop
High current capability
