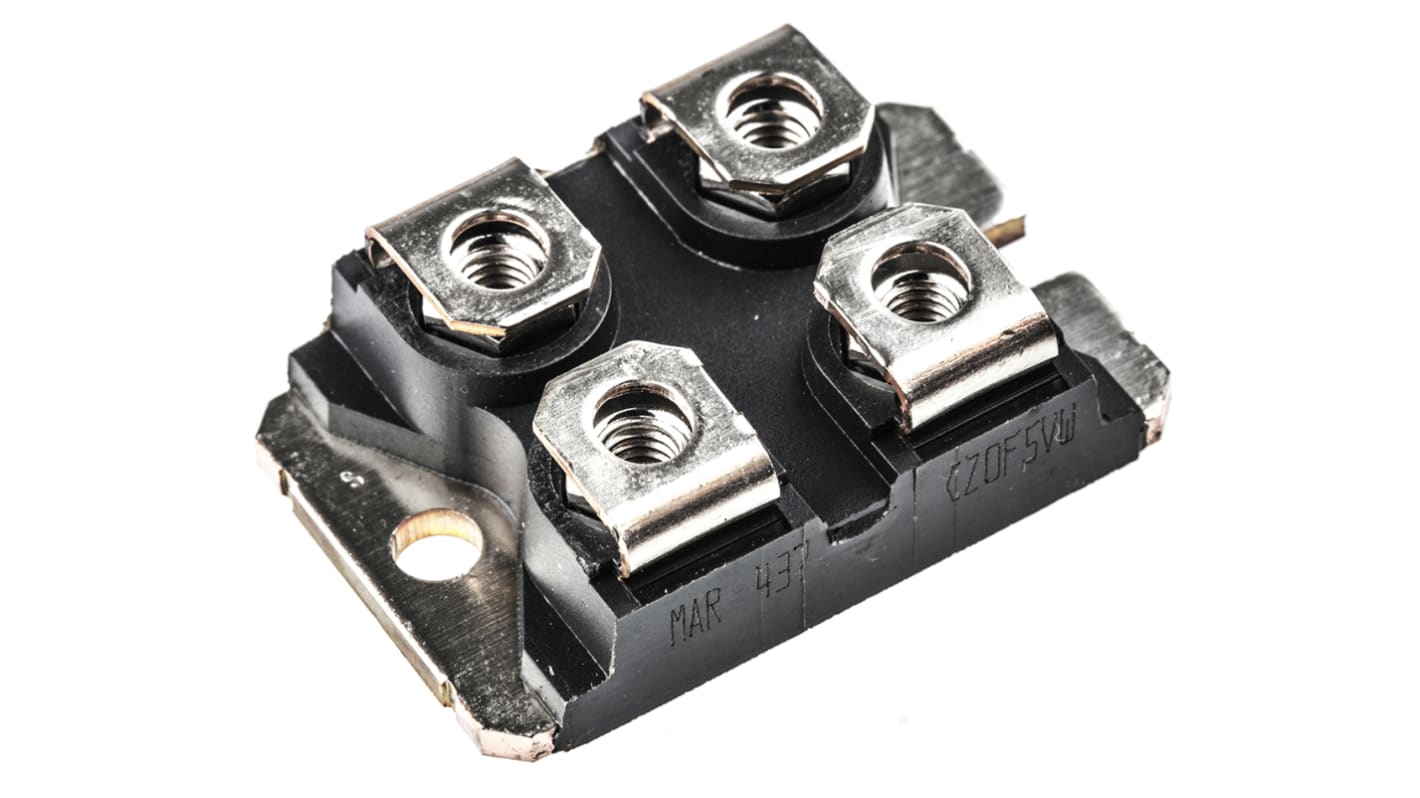

STMicroelectronics 45 V 120 A Diode Schottky 4-Pin ISOTOP STPS12045TV

View this category
Bulk discount available

Subtotal (1 unit)*

£15.74

(exc. VAT)

£18.89

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 42 unit(s) shipping from 26 January 2026
  • Plus 16 unit(s) shipping from 02 February 2026
  • Plus 30 unit(s) shipping from 18 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£15.74
10 - 19£14.46
20 +£13.86

*price indicative

Packaging Options:
RS Stock No.:
485-9604
Distrelec Article No.:
170-30-020
Mfr. Part No.:
STPS12045TV
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Mount Type

Panel

Product Type

Diode

Package Type

ISOTOP

Maximum Continuous Forward Current If

120A

Peak Reverse Repetitive Voltage Vrrm

45V

Series

STPS12045TV

Diode Configuration

Isolated

Rectifier Type

Schottky

Pin Count

4

Maximum Forward Voltage Vf

670mV

Peak Reverse Current Ir

1mA

Peak Non-Repetitive Forward Surge Current Ifsm

900A

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

150°C

Standards/Approvals

No

Height

9.1mm

Width

25.5 mm

Length

38.2mm

Automotive Standard

No

COO (Country of Origin):
CN

Schottky Barrier Diodes, 40A to 240A, STMicroelectronics


This high voltage Schottky rectifier is suited for high frequency switch mode power supplies.

Packaged in ISOTOP, this device is intended for use in the secondary rectification of applications.

Key Features


  • Negligible switching losses

  • Avalanche rated

  • Low leakage current

  • Good trade-off between leakage current and forward voltage drop

  • Insulated package ISOTOP:

    • - Insulated voltage: 2500 VRMS

    - Capacitance: 45 pF

    Diodes and Rectifiers, STMicroelectronics
