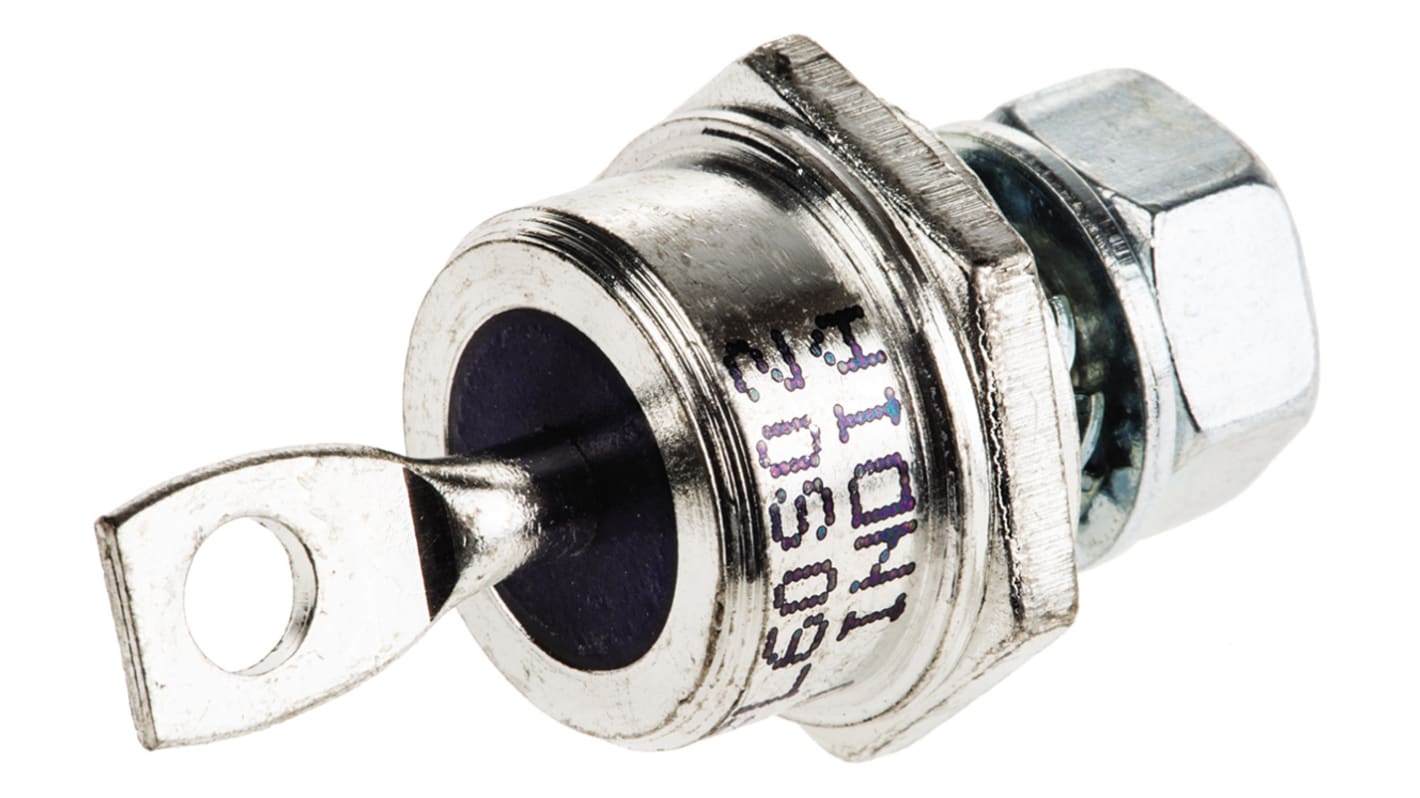

Vishay 600 V 70 A Diode Switching 2-Pin DO-203AB

View this category
Bulk discount available

Subtotal (1 unit)*

£13.02

(exc. VAT)

£15.62

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 07 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£13.02
10 - 24£11.07
25 - 49£10.55
50 - 99£10.03
100 +£9.37

*price indicative

RS Stock No.:
395-3799
Mfr. Part No.:
VS-70HFL60S02
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Mount Type

Screw

Product Type

Diode

Package Type

DO-203AB

Maximum Continuous Forward Current If

70A

Peak Reverse Repetitive Voltage Vrrm

600V

Diode Configuration

Stud Cathode

Series

VS-70HFL

Rectifier Type

Switching

Pin Count

2

Maximum Forward Voltage Vf

1.85V

Minimum Operating Temperature

-40°C

Peak Non-Repetitive Forward Surge Current Ifsm

730A

Peak Reverse Current Ir

100μA

Maximum Operating Temperature

125°C

Peak Reverse Recovery Time trr

200ns

Width

17.35 mm

Height

22.9mm

Standards/Approvals

RoHS

Length

20.02mm

Diameter

17.4 mm

Automotive Standard

No

Fast Recovery Rectifiers over 20A, Vishay Semiconductor


Versatile and high-efficiency Fast recovery power diodes in industry-standard package styles.

Diodes and Rectifiers, Vishay Semiconductor
