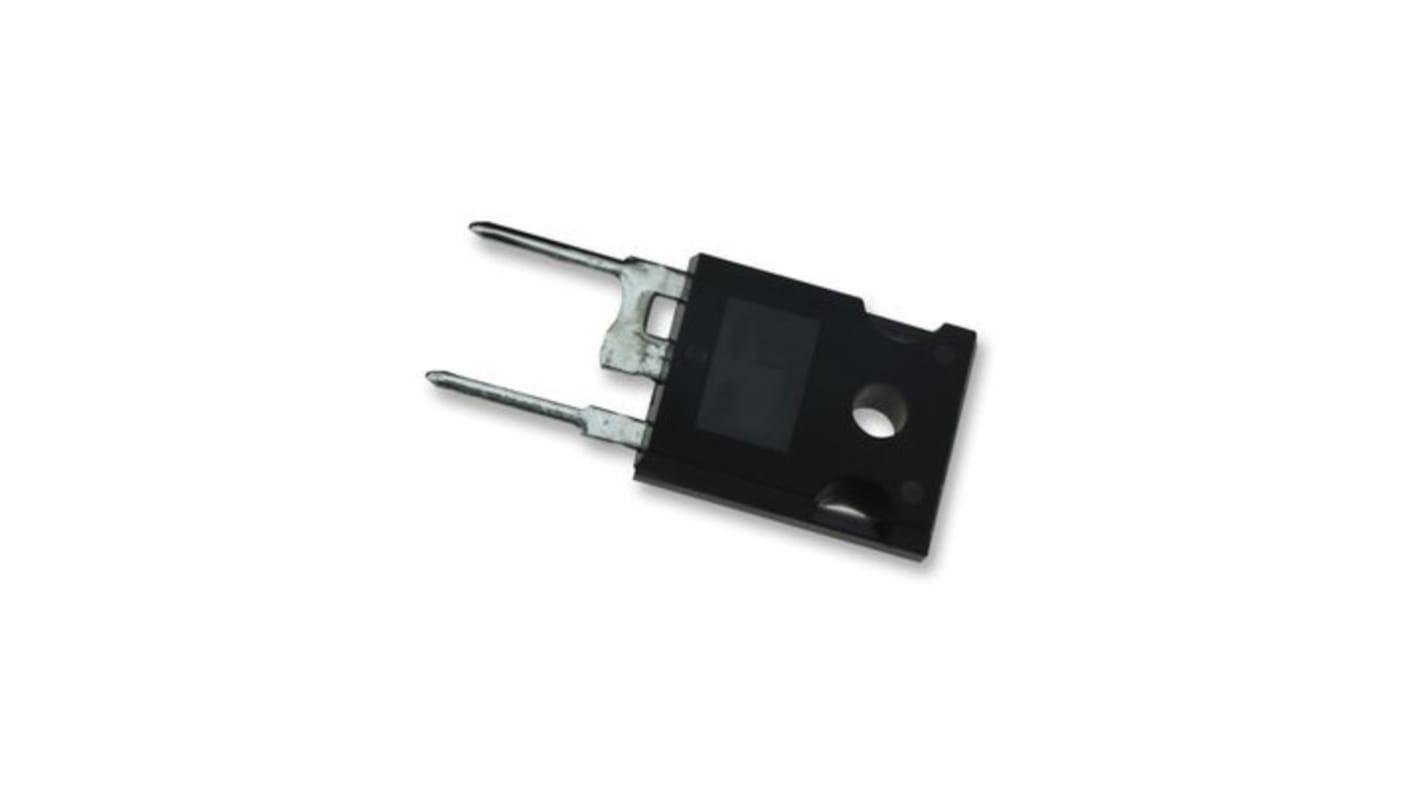

Microchip 3300 V 90 A Rectifier & Schottky Diode Schottky 2-Pin TO-247 MAX MSC090SDA330B2
- RS Stock No.:
- 249-4132
- Mfr. Part No.:
- MSC090SDA330B2
- Brand:
- Microchip
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 249-4132
- Mfr. Part No.:
- MSC090SDA330B2
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Rectifier & Schottky Diode | |
| Mount Type | Through Hole | |
| Package Type | TO-247 MAX | |
| Maximum Continuous Forward Current If | 90A | |
| Peak Reverse Repetitive Voltage Vrrm | 3300V | |
| Diode Configuration | Anti-Parallel Pair | |
| Series | MSC090SDA330B2 | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 615A | |
| Minimum Operating Temperature | -50°C | |
| Maximum Forward Voltage Vf | 2.4V | |
| Maximum Operating Temperature | 175°C | |
| Length | 16.26mm | |
| Standards/Approvals | RoHS | |
| Height | 41.78mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Rectifier & Schottky Diode | ||
Mount Type Through Hole | ||
Package Type TO-247 MAX | ||
Maximum Continuous Forward Current If 90A | ||
Peak Reverse Repetitive Voltage Vrrm 3300V | ||
Diode Configuration Anti-Parallel Pair | ||
Series MSC090SDA330B2 | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 615A | ||
Minimum Operating Temperature -50°C | ||
Maximum Forward Voltage Vf 2.4V | ||
Maximum Operating Temperature 175°C | ||
Length 16.26mm | ||
Standards/Approvals RoHS | ||
Height 41.78mm | ||
Automotive Standard No | ||
The Microchip's silicon carbide (SiC), power Schottky barrier diode (SBD) product line increases the performance over silicon diode solutions while lowering the total cost of ownership for high-voltage applications. The device is a 3300 V, 90 A SiC SBD in a two-lead T-MAX package. It has features like no reverse recovery, low forward voltage and low leakage current.
High switching frequency and low switching losses
Low noise (EMI) switching and higher reliability systems
