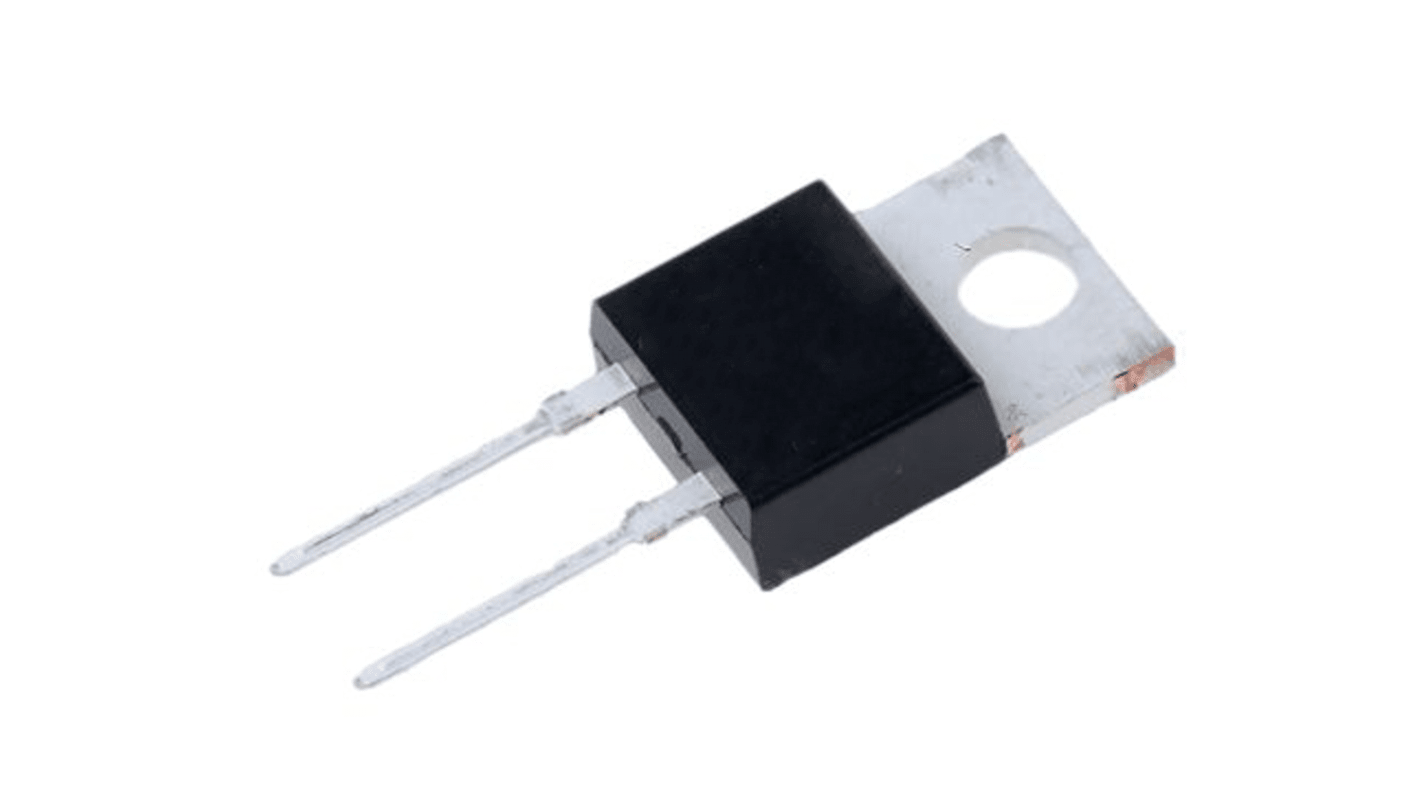

ROHM 1200 V 20 A Rectifier & Schottky Diode Schottky 3-Pin TO-220ACG SCS220KGC17

View this category
Bulk discount available

Subtotal (1 unit)*

£11.19

(exc. VAT)

£13.43

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 40 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 49£11.19
50 - 99£6.72
100 - 249£6.27
250 - 499£5.93
500 +£5.71

*price indicative

Packaging Options:
RS Stock No.:
246-3984
Mfr. Part No.:
SCS220KGC17
Brand:
ROHM
Find similar products by selecting one or more attributes.
Select all

Brand

ROHM

Product Type

Rectifier & Schottky Diode

Mount Type

Through Hole

Package Type

TO-220ACG

Maximum Continuous Forward Current If

20A

Peak Reverse Repetitive Voltage Vrrm

1200V

Series

SCS

Diode Configuration

Single

Rectifier Type

Schottky

Pin Count

3

Maximum Forward Voltage Vf

1.55V

Peak Non-Repetitive Forward Surge Current Ifsm

260A

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

175°C

Standards/Approvals

RoHS

Automotive Standard

AEC-Q101

The ROHM SCS series is SiC schottky barrier diode available in TO-220ACG package and can be used in PFC boost topology, secondary side rectification, data center and PV power conditioners applications.

Shorter recovery time

Reduced temperature dependence

High-speed switching possible
