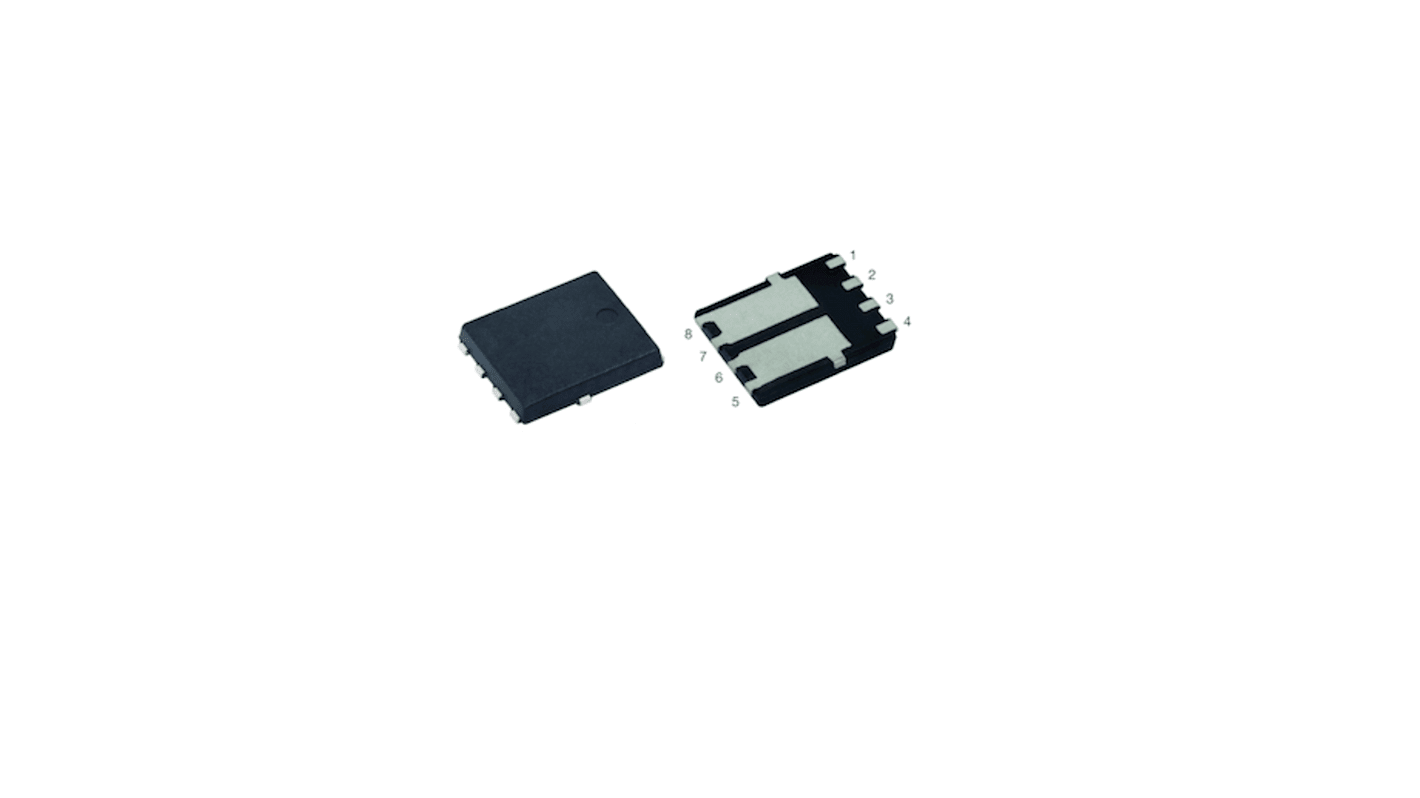

Vishay 200 V 10 A Rectifier & Schottky Diode Schottky 8-Pin FlatPAK 5 x 6 V10K202DUHM3/H
- RS Stock No.:
- 244-8972
- Mfr. Part No.:
- V10K202DUHM3/H
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 10 units)*
£7.12
(exc. VAT)
£8.54
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 3,030 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.712 | £7.12 |
| 100 - 240 | £0.641 | £6.41 |
| 250 - 490 | £0.604 | £6.04 |
| 500 - 990 | £0.584 | £5.84 |
| 1000 + | £0.57 | £5.70 |
*price indicative
- RS Stock No.:
- 244-8972
- Mfr. Part No.:
- V10K202DUHM3/H
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Surface | |
| Product Type | Rectifier & Schottky Diode | |
| Package Type | FlatPAK 5 x 6 | |
| Maximum Continuous Forward Current If | 10A | |
| Peak Reverse Repetitive Voltage Vrrm | 200V | |
| Series | V10K | |
| Rectifier Type | Schottky | |
| Pin Count | 8 | |
| Minimum Operating Temperature | -50°C | |
| Maximum Forward Voltage Vf | 0.68V | |
| Peak Reverse Current Ir | 4mA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A | |
| Maximum Operating Temperature | 150°C | |
| Length | 6.2mm | |
| Width | 5.15 mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mount Type Surface | ||
Product Type Rectifier & Schottky Diode | ||
Package Type FlatPAK 5 x 6 | ||
Maximum Continuous Forward Current If 10A | ||
Peak Reverse Repetitive Voltage Vrrm 200V | ||
Series V10K | ||
Rectifier Type Schottky | ||
Pin Count 8 | ||
Minimum Operating Temperature -50°C | ||
Maximum Forward Voltage Vf 0.68V | ||
Peak Reverse Current Ir 4mA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 80A | ||
Maximum Operating Temperature 150°C | ||
Length 6.2mm | ||
Width 5.15 mm | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q101 | ||
The Vishay's high current density surface mount TMBS trench MOS barrier schottky rectifier have trench MOS schottky technology and used in low voltage high frequency inverters, DC/DC converters and polarity protection applications.
Low forward voltage drop, low power losses
High efficiency operation
RoHS compliant
AEC-Q101 qualified available
