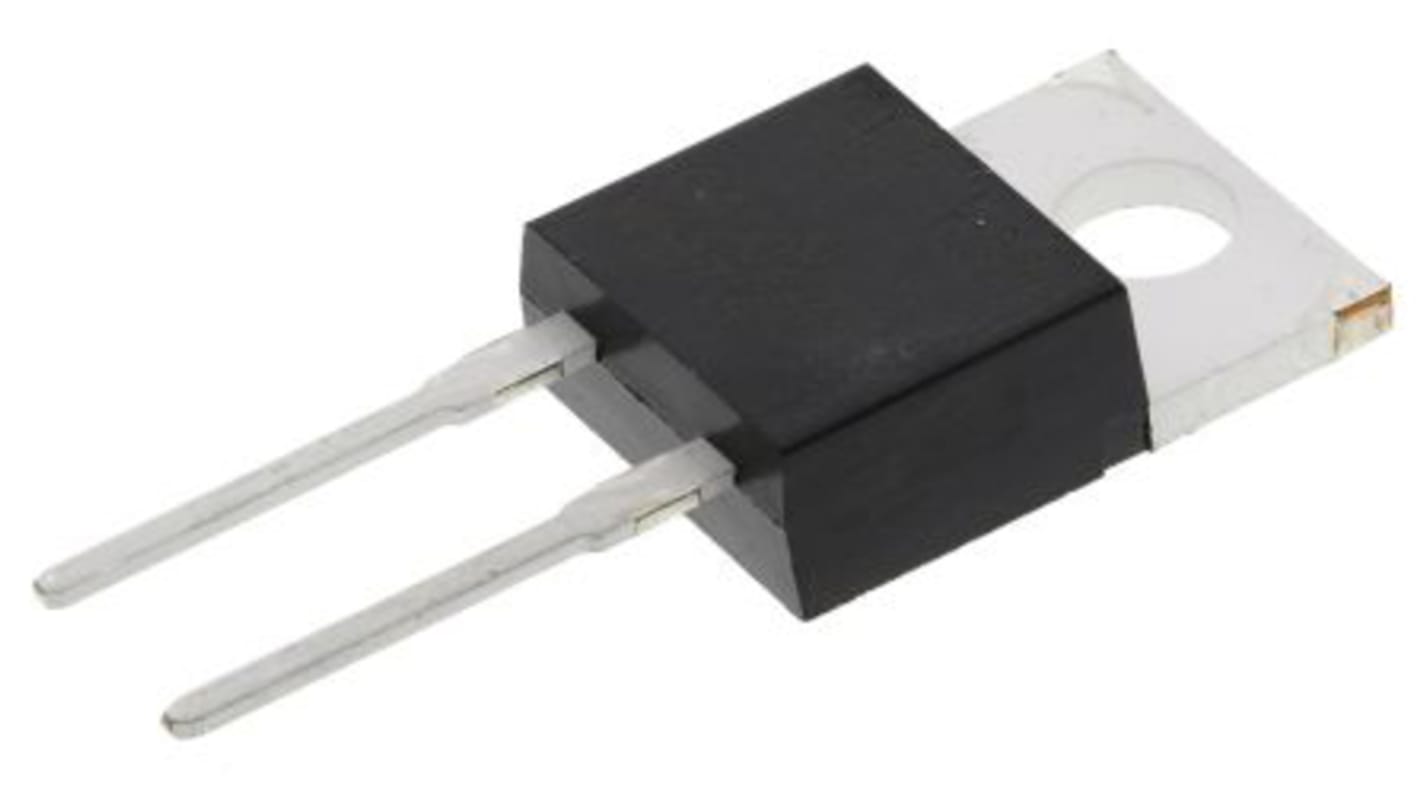

Microchip 1200V 10A, SiC Schottky Rectifier & Schottky Diode, TO-220 MSC010SDA120K
- RS Stock No.:
- 241-2081
- Mfr. Part No.:
- MSC010SDA120K
- Brand:
- Microchip
Bulk discount available
Subtotal (1 tube of 25 units)*
£83.75
(exc. VAT)
£100.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 125 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
25 - 75 | £3.35 | £83.75 |
100 + | £3.072 | £76.80 |
*price indicative
- RS Stock No.:
- 241-2081
- Mfr. Part No.:
- MSC010SDA120K
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Mounting Type | Through Hole | |
Package Type | TO-220 | |
Maximum Continuous Forward Current | 10A | |
Peak Reverse Repetitive Voltage | 1200V | |
Series | MSC0 | |
Rectifier Type | Schottky Diode | |
Diode Type | SiC Schottky | |
Diode Technology | Schottky Barrier | |
Select all | ||
---|---|---|
Brand Microchip | ||
Mounting Type Through Hole | ||
Package Type TO-220 | ||
Maximum Continuous Forward Current 10A | ||
Peak Reverse Repetitive Voltage 1200V | ||
Series MSC0 | ||
Rectifier Type Schottky Diode | ||
Diode Type SiC Schottky | ||
Diode Technology Schottky Barrier | ||
The Microchip silicon carbide (SiC) power Schottky barrier diodes (SBD) increases performance over silicon diode solutions while lowering your total cost of ownership for high voltage applications.
Low forward voltage
Low leakage current
No reverse recovery current/no forward recovery
Avalanche energy rated
RoHS compliant
Low leakage current
No reverse recovery current/no forward recovery
Avalanche energy rated
RoHS compliant
