Nexperia 60V 2A, Rectifier & Schottky Diode, CFP15B PMEG060T040CLPEZ
- RS Stock No.:
- 240-1968
- Mfr. Part No.:
- PMEG060T040CLPEZ
- Brand:
- Nexperia
Bulk discount available
Subtotal (1 pack of 25 units)*
£11.05
(exc. VAT)
£13.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.442 | £11.05 |
| 50 - 475 | £0.433 | £10.83 |
| 500 - 975 | £0.248 | £6.20 |
| 1000 - 2475 | £0.216 | £5.40 |
| 2500 + | £0.212 | £5.30 |
*price indicative
- RS Stock No.:
- 240-1968
- Mfr. Part No.:
- PMEG060T040CLPEZ
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Mounting Type | Surface Mount | |
| Package Type | CFP15B | |
| Maximum Continuous Forward Current | 2A | |
| Peak Reverse Repetitive Voltage | 60V | |
Select all | ||
|---|---|---|
Brand Nexperia | ||
Mounting Type Surface Mount | ||
Package Type CFP15B | ||
Maximum Continuous Forward Current 2A | ||
Peak Reverse Repetitive Voltage 60V | ||

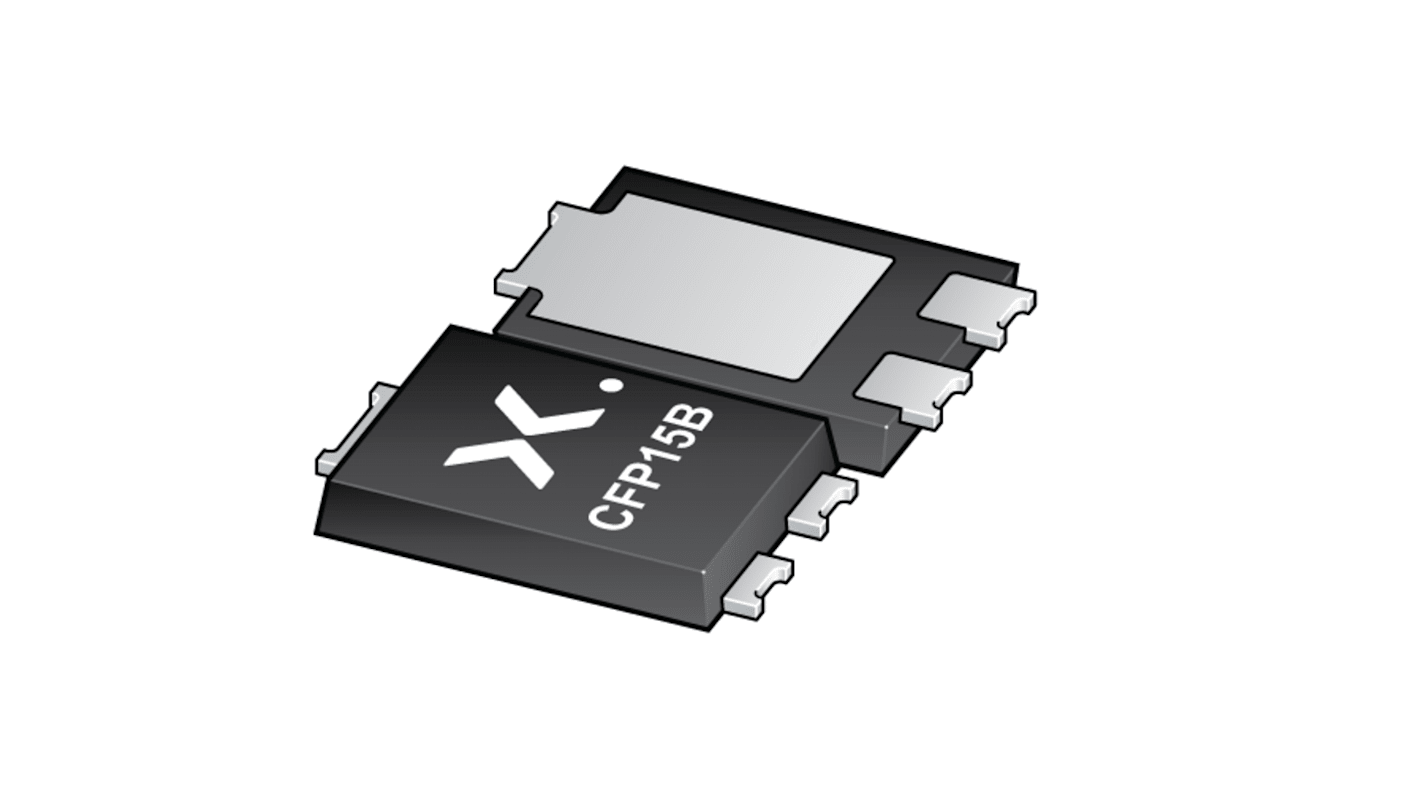

The Nexperia Trench Maximum Efficiency General Application (MEGA) dual Schottky barrier rectifier is in common cathode configuration encapsulated in a CFP15B (SOT1289B) power and flat lead Surface-Mounted Device (SMD) plastic package.
Reverse voltage VR ≤ 60 V
Forward current IF ≤ 2 A (per diode)
Low forward voltage
Low leakage current due to Trench MEGA Schottky technology
Power and flat lead SMD plastic package
Package height typical 0.95 mm
High power capability due to clip-bond technology
Forward current IF ≤ 2 A (per diode)
Low forward voltage
Low leakage current due to Trench MEGA Schottky technology
Power and flat lead SMD plastic package
Package height typical 0.95 mm
High power capability due to clip-bond technology
