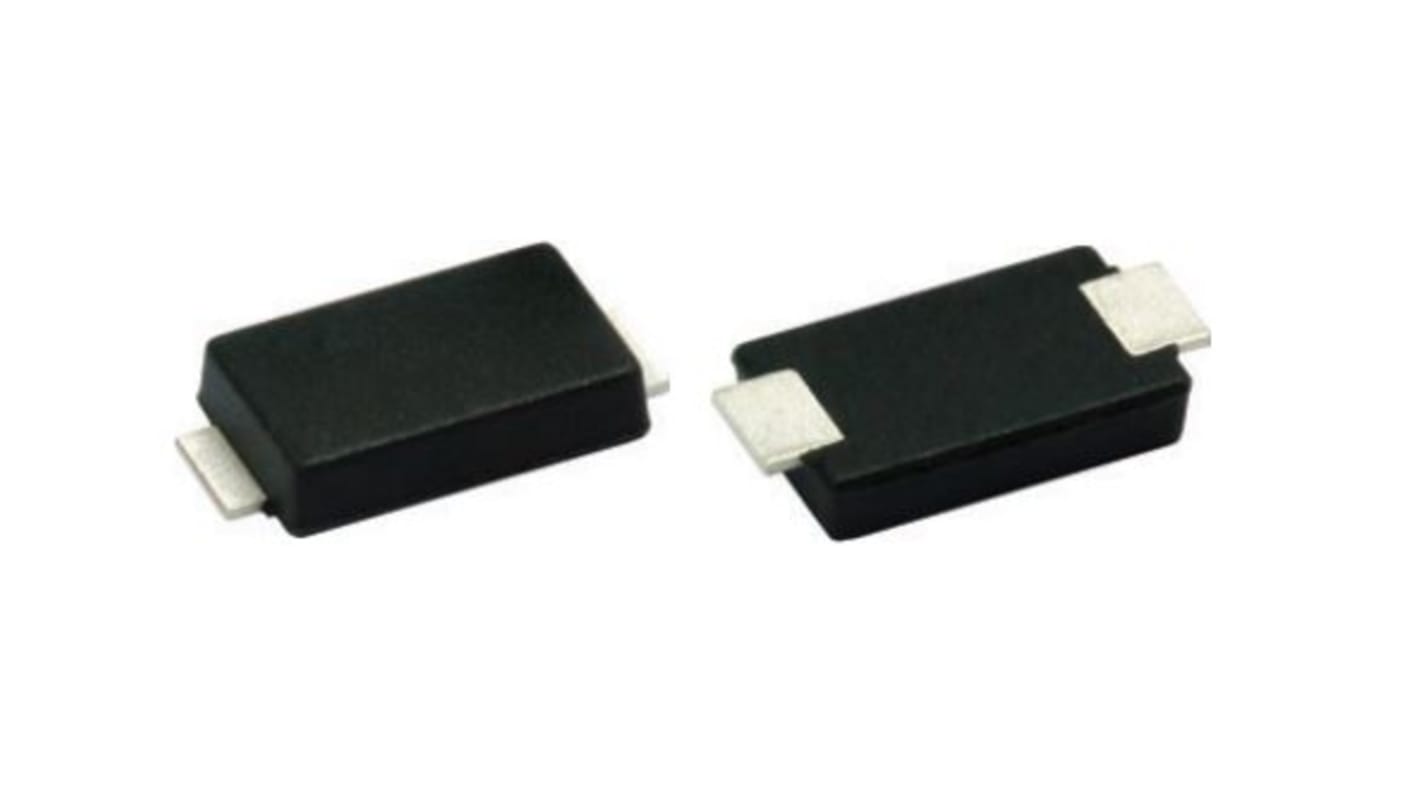

Vishay 100 V 3 A Rectifier & Schottky Diode Schottky DO-221AC VSSAF3M10HM3/H
- RS Stock No.:
- 238-7510
- Mfr. Part No.:
- VSSAF3M10HM3/H
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 25 units)*
£7.575
(exc. VAT)
£9.10
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 10,350 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 225 | £0.303 | £7.58 |
| 250 - 1225 | £0.273 | £6.83 |
| 1250 - 2475 | £0.258 | £6.45 |
| 2500 - 6225 | £0.248 | £6.20 |
| 6250 + | £0.242 | £6.05 |
*price indicative
- RS Stock No.:
- 238-7510
- Mfr. Part No.:
- VSSAF3M10HM3/H
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Rectifier & Schottky Diode | |
| Mount Type | Surface | |
| Package Type | DO-221AC | |
| Maximum Continuous Forward Current If | 3A | |
| Peak Reverse Repetitive Voltage Vrrm | 100V | |
| Diode Configuration | Single | |
| Rectifier Type | Schottky | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Forward Voltage Vf | 0.72V | |
| Peak Reverse Current Ir | 0.2mA | |
| Maximum Operating Temperature | 175°C | |
| Width | 2.7 mm | |
| Height | 1mm | |
| Length | 5.35mm | |
| Standards/Approvals | AEC-Q101, JESD 201 Class 2 whisker test, UL 94 V-0, RoHS | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Rectifier & Schottky Diode | ||
Mount Type Surface | ||
Package Type DO-221AC | ||
Maximum Continuous Forward Current If 3A | ||
Peak Reverse Repetitive Voltage Vrrm 100V | ||
Diode Configuration Single | ||
Rectifier Type Schottky | ||
Peak Non-Repetitive Forward Surge Current Ifsm 80A | ||
Minimum Operating Temperature -40°C | ||
Maximum Forward Voltage Vf 0.72V | ||
Peak Reverse Current Ir 0.2mA | ||
Maximum Operating Temperature 175°C | ||
Width 2.7 mm | ||
Height 1mm | ||
Length 5.35mm | ||
Standards/Approvals AEC-Q101, JESD 201 Class 2 whisker test, UL 94 V-0, RoHS | ||
Automotive Standard AEC-Q101 | ||
The Vishay surface-mount TMBS rectifier has very low profile that is typical height of 0.95 mm. It also meets MSL level 1, per J-STD-020, LF maximum Peak of 260 °C and it is Ideal for automated placement. It can be use in low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection in commercial, industrial, and automotive applications.
Trench MOS Schottky technology
Low forward voltage drop
High efficiency operation
Low power losses
AEC-Q101 qualified available
