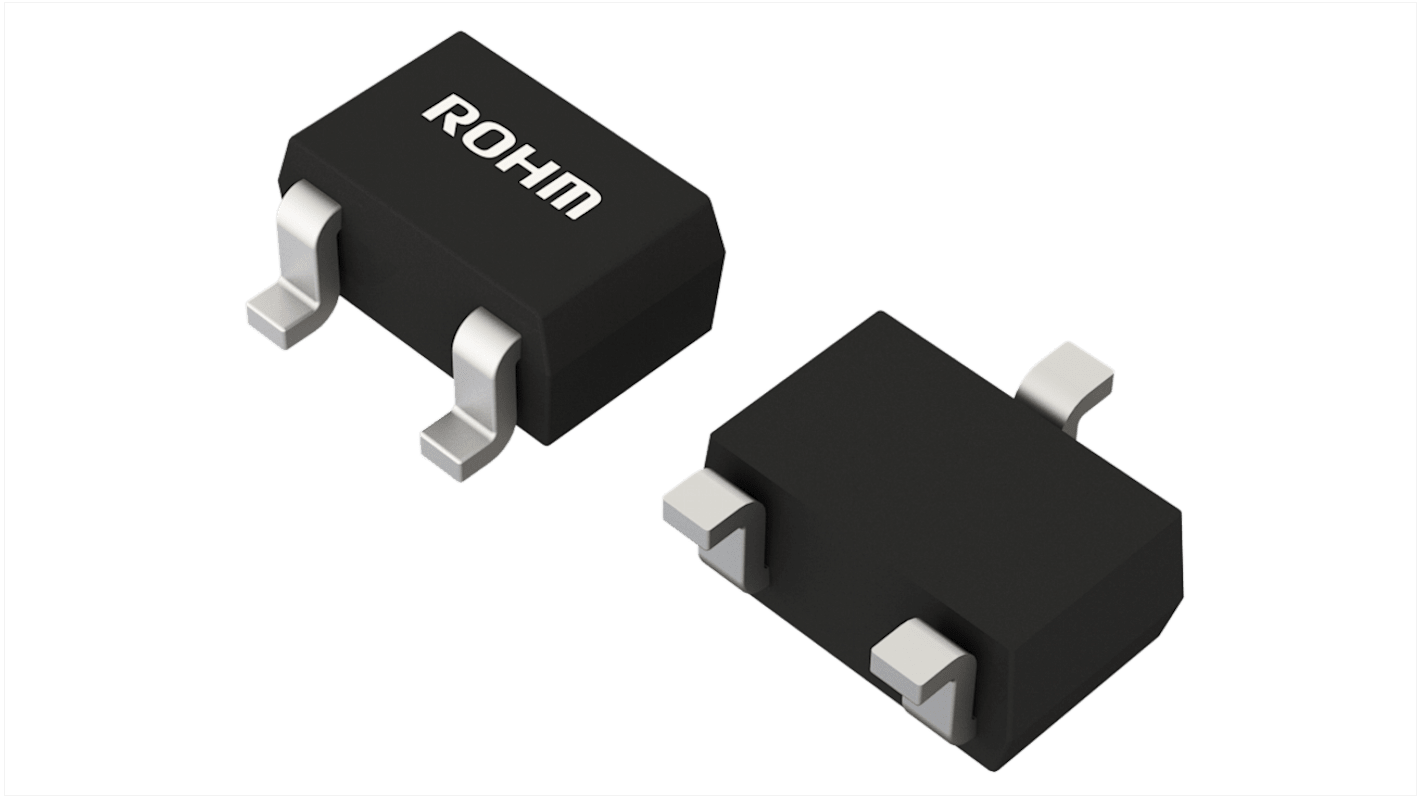

ROHM 40 V 30 mA Schottky Barrier Schottky 3-Pin SOT-323 RB715FM-40FHT106
- RS Stock No.:
- 237-4370
- Mfr. Part No.:
- RB715FM-40FHT106
- Brand:
- ROHM
Bulk discount available
Subtotal (1 pack of 25 units)*
£3.10
(exc. VAT)
£3.725
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,550 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.124 | £3.10 |
| 50 - 75 | £0.122 | £3.05 |
| 100 - 225 | £0.078 | £1.95 |
| 250 - 975 | £0.076 | £1.90 |
| 1000 + | £0.054 | £1.35 |
*price indicative
- RS Stock No.:
- 237-4370
- Mfr. Part No.:
- RB715FM-40FHT106
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Schottky Barrier | |
| Mount Type | Surface | |
| Package Type | SOT-323 | |
| Maximum Continuous Forward Current If | 30mA | |
| Peak Reverse Repetitive Voltage Vrrm | 40V | |
| Diode Configuration | 2x Common Cathode Pair | |
| Rectifier Type | Schottky | |
| Pin Count | 3 | |
| Maximum Forward Voltage Vf | 0.37V | |
| Peak Reverse Current Ir | 1μA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 0.2A | |
| Height | 0.9mm | |
| Length | 2mm | |
| Width | 2.1 mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Schottky Barrier | ||
Mount Type Surface | ||
Package Type SOT-323 | ||
Maximum Continuous Forward Current If 30mA | ||
Peak Reverse Repetitive Voltage Vrrm 40V | ||
Diode Configuration 2x Common Cathode Pair | ||
Rectifier Type Schottky | ||
Pin Count 3 | ||
Maximum Forward Voltage Vf 0.37V | ||
Peak Reverse Current Ir 1μA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 0.2A | ||
Height 0.9mm | ||
Length 2mm | ||
Width 2.1 mm | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q101 | ||
The ROHM RB715FM-40FH series Schottky barrier diode has SOT-323 package and suitable for general rectification. It has reverse voltage of 40V, forward voltage of 0.37V, rectified forward current of 30mA and reverse current of 0.001mA. This diode has three terminals and C-Common configuration.
Surface mount
High reliability
Small mold type
Ultra Low VF
Storage temperature range between -55°C and 150°C
AEC-Q101 qualified
