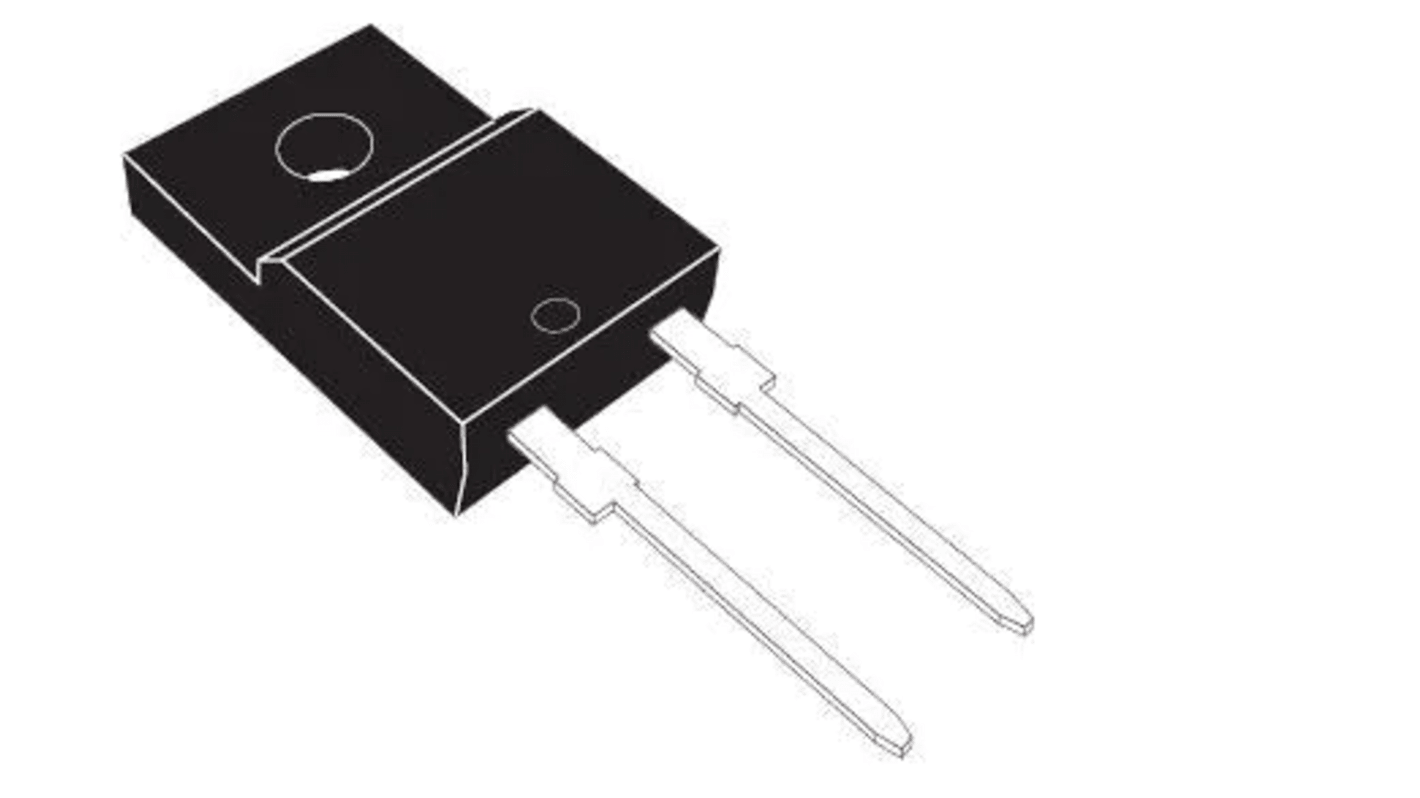

STMicroelectronics 1000V 8A, Rectifier & Schottky Diode, TO-220FPAC STTH810FP
- RS Stock No.:
- 233-3096
- Mfr. Part No.:
- STTH810FP
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 tube of 50 units)*
£19.90
(exc. VAT)
£23.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 50 | £0.398 | £19.90 |
| 100 - 200 | £0.388 | £19.40 |
| 250 + | £0.379 | £18.95 |
*price indicative
- RS Stock No.:
- 233-3096
- Mfr. Part No.:
- STTH810FP
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Mounting Type | Surface Mount | |
| Package Type | TO-220FPAC | |
| Maximum Continuous Forward Current | 8A | |
| Peak Reverse Repetitive Voltage | 1000V | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Mounting Type Surface Mount | ||
Package Type TO-220FPAC | ||
Maximum Continuous Forward Current 8A | ||
Peak Reverse Repetitive Voltage 1000V | ||
Number of Elements per Chip 1 | ||
The STMicroelectronics high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy duty applications that demand long term reliability. Such demanding applications include industrial power supplies, motor control, and similar mission-critical systems that require rectification and freewheeling. These diodes also fit into auxiliary functions such as snubber, bootstrap, and demagnetization applications. The improved performance in low leakage current, and therefore thermal runaway guard band, is an immediate competitive advantage for this device.
Insulated packages:\t\tTO-220Ins\t\electrical insulation = 2500 VRMSCapacitance = 7 pF\t\tTO-220FPAC Electrical insulation = 2500 VRMSCapacitance = 12 pF\t\t
Ultrafast, soft recovery
High frequency and/or high pulsed current operation
Very low conduction and switching losses
High junction temperature
High reverse voltage capability
Ultrafast, soft recovery
High frequency and/or high pulsed current operation
Very low conduction and switching losses
High junction temperature
High reverse voltage capability
