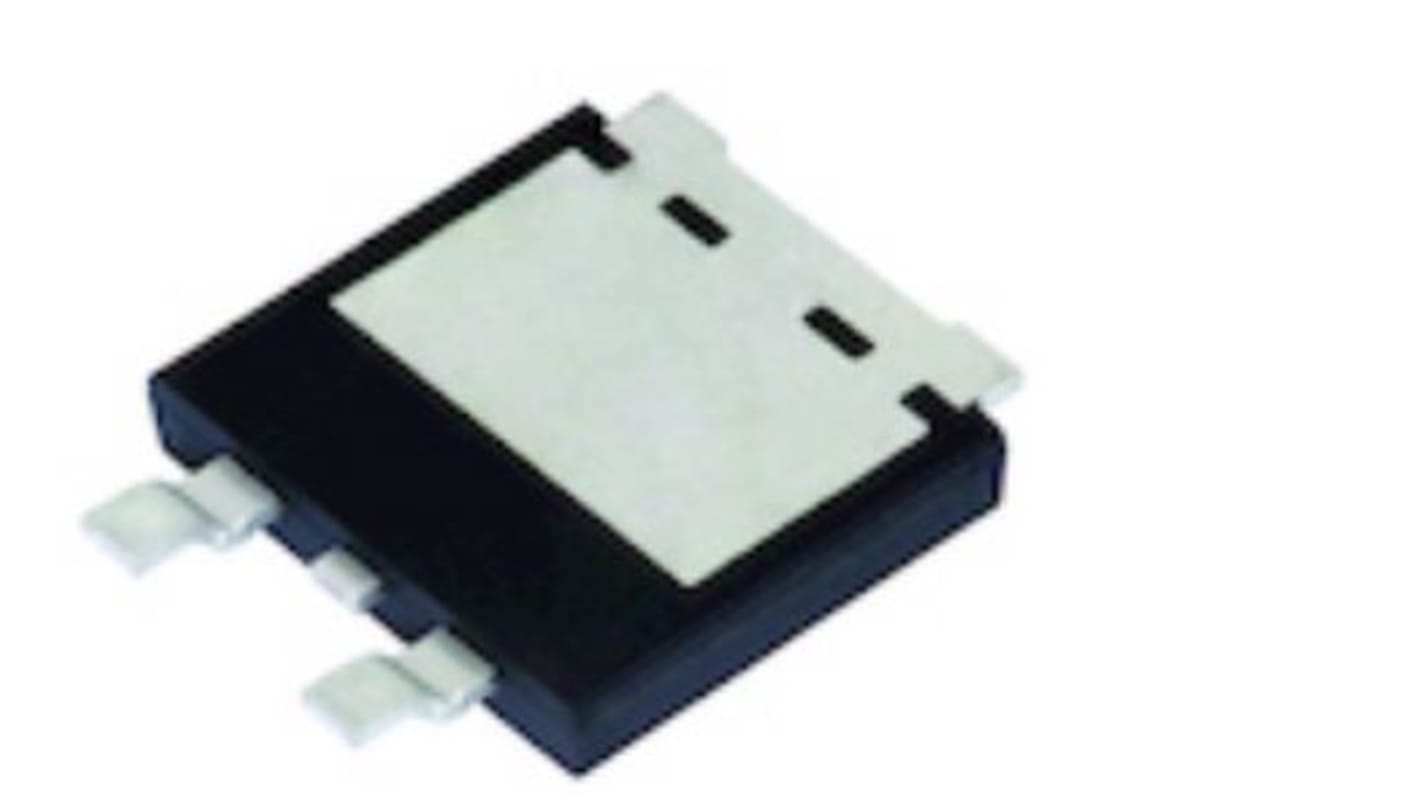

Vishay 150 V 5 A Rectifier & Schottky Diode Schottky 2-Pin O-263AC V10DM153CHM3/I
- RS Stock No.:
- 231-7296
- Mfr. Part No.:
- V10DM153CHM3/I
- Brand:
- Vishay
Get a bulk buy discount
Add 20 more to save 10%
View bulk pricing optionsSubtotal (1 pack of 2 units)*
£1.63
(exc. VAT)
£1.96
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 48 unit(s) shipping from 23 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* | Saving |
|---|---|---|---|
| 2 - 18 | £0.815 | £1.63 | - |
| 20 - 98 | £0.73 | £1.46 | 10% |
| 100 - 198 | £0.69 | £1.38 | 15% |
| 200 - 498 | £0.67 | £1.34 | 17% |
| 500 + | £0.65 | £1.30 | 20% |
*price indicative
- RS Stock No.:
- 231-7296
- Mfr. Part No.:
- V10DM153CHM3/I
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Surface | |
| Product Type | Rectifier & Schottky Diode | |
| Package Type | O-263AC | |
| Maximum Continuous Forward Current If | 5A | |
| Peak Reverse Repetitive Voltage Vrrm | 150V | |
| Diode Configuration | 2x Common Cathode Pair | |
| Series | V10 | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A | |
| Peak Reverse Current Ir | 3mA | |
| Maximum Forward Voltage Vf | 740mV | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 175°C | |
| Length | 8.9mm | |
| Height | 1.8mm | |
| Standards/Approvals | No | |
| Width | 10.2mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mount Type Surface | ||
Product Type Rectifier & Schottky Diode | ||
Package Type O-263AC | ||
Maximum Continuous Forward Current If 5A | ||
Peak Reverse Repetitive Voltage Vrrm 150V | ||
Diode Configuration 2x Common Cathode Pair | ||
Series V10 | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 100A | ||
Peak Reverse Current Ir 3mA | ||
Maximum Forward Voltage Vf 740mV | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 175°C | ||
Length 8.9mm | ||
Height 1.8mm | ||
Standards/Approvals No | ||
Width 10.2mm | ||
Automotive Standard AEC-Q101 | ||
The Vishay dual high-voltage TMBS(Trench MOS Barrier Schottky) rectifier used in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection which is usually used in commercial, industrial, and automotive applications.
Ideal for automated placement
Low forward voltage drop, low power losses
High efficiency operation
