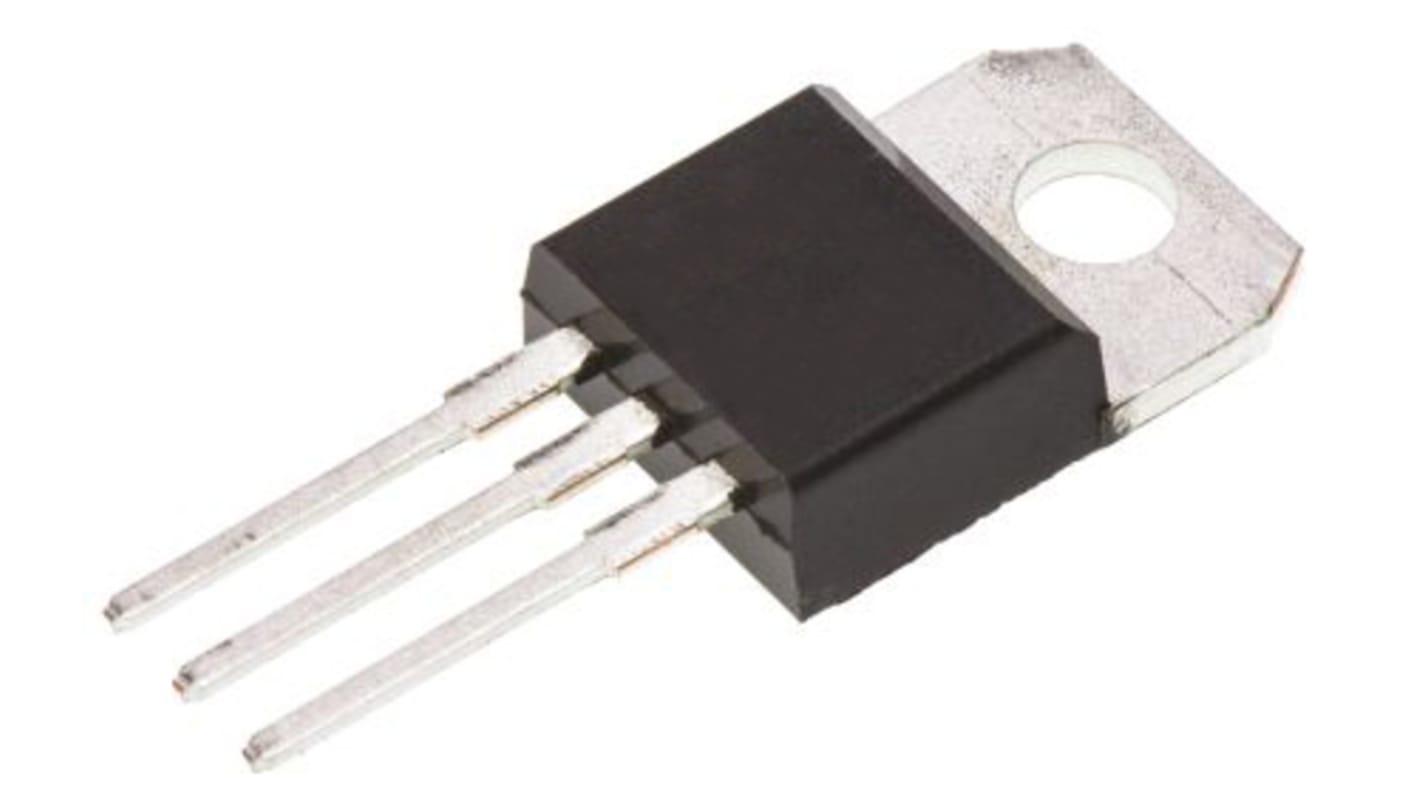

STMicroelectronics 40 V 20 A Diode Schottky 3-Pin TO-220
- RS Stock No.:
- 230-0099P
- Mfr. Part No.:
- STPS10L40CSF
- Brand:
- STMicroelectronics
Subtotal 20 units (supplied on a continuous strip)*
£8.06
(exc. VAT)
£9.68
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1,680 unit(s) shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 20 + | £0.403 |
*price indicative
- RS Stock No.:
- 230-0099P
- Mfr. Part No.:
- STPS10L40CSF
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Mount Type | Through Hole | |
| Product Type | Diode | |
| Package Type | TO-220 | |
| Maximum Continuous Forward Current If | 20A | |
| Peak Reverse Repetitive Voltage Vrrm | 40V | |
| Rectifier Type | Schottky | |
| Pin Count | 3 | |
| Maximum Forward Voltage Vf | 0.37V | |
| Minimum Operating Temperature | -65°C | |
| Peak Reverse Current Ir | 50mA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 120A | |
| Maximum Operating Temperature | 175°C | |
| Height | 1.2mm | |
| Standards/Approvals | No | |
| Width | 4.75 mm | |
| Length | 6.65mm | |
| Diameter | 0.93 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Mount Type Through Hole | ||
Product Type Diode | ||
Package Type TO-220 | ||
Maximum Continuous Forward Current If 20A | ||
Peak Reverse Repetitive Voltage Vrrm 40V | ||
Rectifier Type Schottky | ||
Pin Count 3 | ||
Maximum Forward Voltage Vf 0.37V | ||
Minimum Operating Temperature -65°C | ||
Peak Reverse Current Ir 50mA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 120A | ||
Maximum Operating Temperature 175°C | ||
Height 1.2mm | ||
Standards/Approvals No | ||
Width 4.75 mm | ||
Length 6.65mm | ||
Diameter 0.93 mm | ||
Automotive Standard No | ||
The STMicroelectronics STPS10L40C is dual centre tap schottky rectifier suited for switch mode power supply and high frequency DC to DC converters. The packaged either in TO-220AB and D2PAK, this device is especially intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.
Low forward voltage drop meaning very small conduction losses
Low dynamic losses as a result of the schottky barrier
Avalanche capability specified
