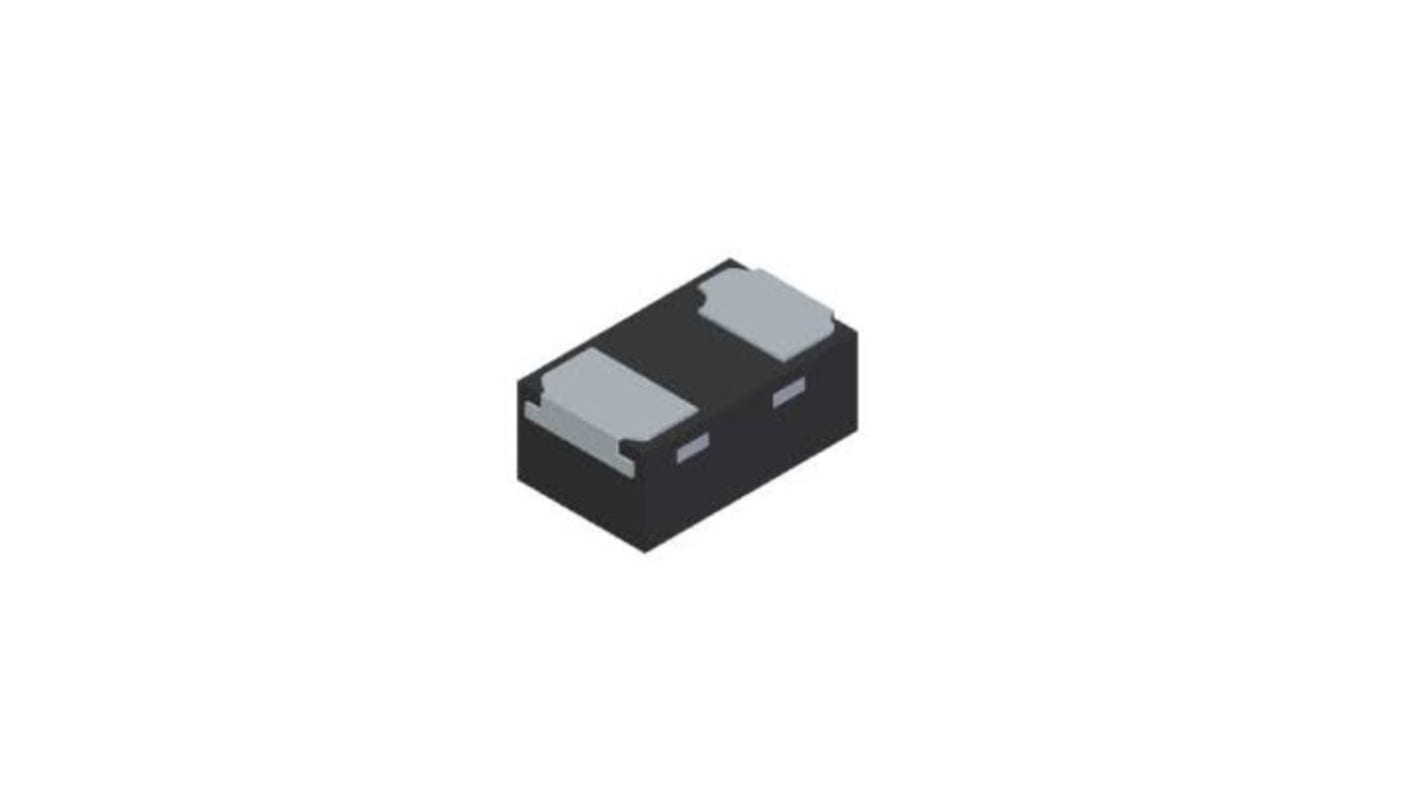

DiodesZetex 40 V 200 mA Diode Avalanche 2-Pin X1-DFN

View this category

Subtotal (1 reel of 10000 units)*

£370.00

(exc. VAT)

£440.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
10000 +£0.037£370.00

*price indicative

RS Stock No.:
222-2907
Mfr. Part No.:
SBR0240LPWQ-7B
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Product Type

Diode

Mount Type

Surface

Package Type

X1-DFN

Maximum Continuous Forward Current If

200mA

Peak Reverse Repetitive Voltage Vrrm

40V

Series

0.2A SBR

Diode Configuration

Single

Rectifier Type

Avalanche

Pin Count

2

Peak Non-Repetitive Forward Surge Current Ifsm

5A

Minimum Operating Temperature

-55°C

Maximum Forward Voltage Vf

0.59V

Peak Reverse Current Ir

10μA

Maximum Operating Temperature

150°C

Peak Reverse Recovery Time trr

3.3ns

Standards/Approvals

No

Height

0.42mm

Width

0.6 mm

Length

1mm

Automotive Standard

AEC-Q101

The DiodesZetex 0.2 A SBR surface mount super barrier rectifier provides very low VF and excellent reverse-leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode or blocking diode.

Patented trench super barrier rectifier SBR technology

With visible and solderable side pads

Ultra-low forward voltage drop

Superior reverse avalanche capability
