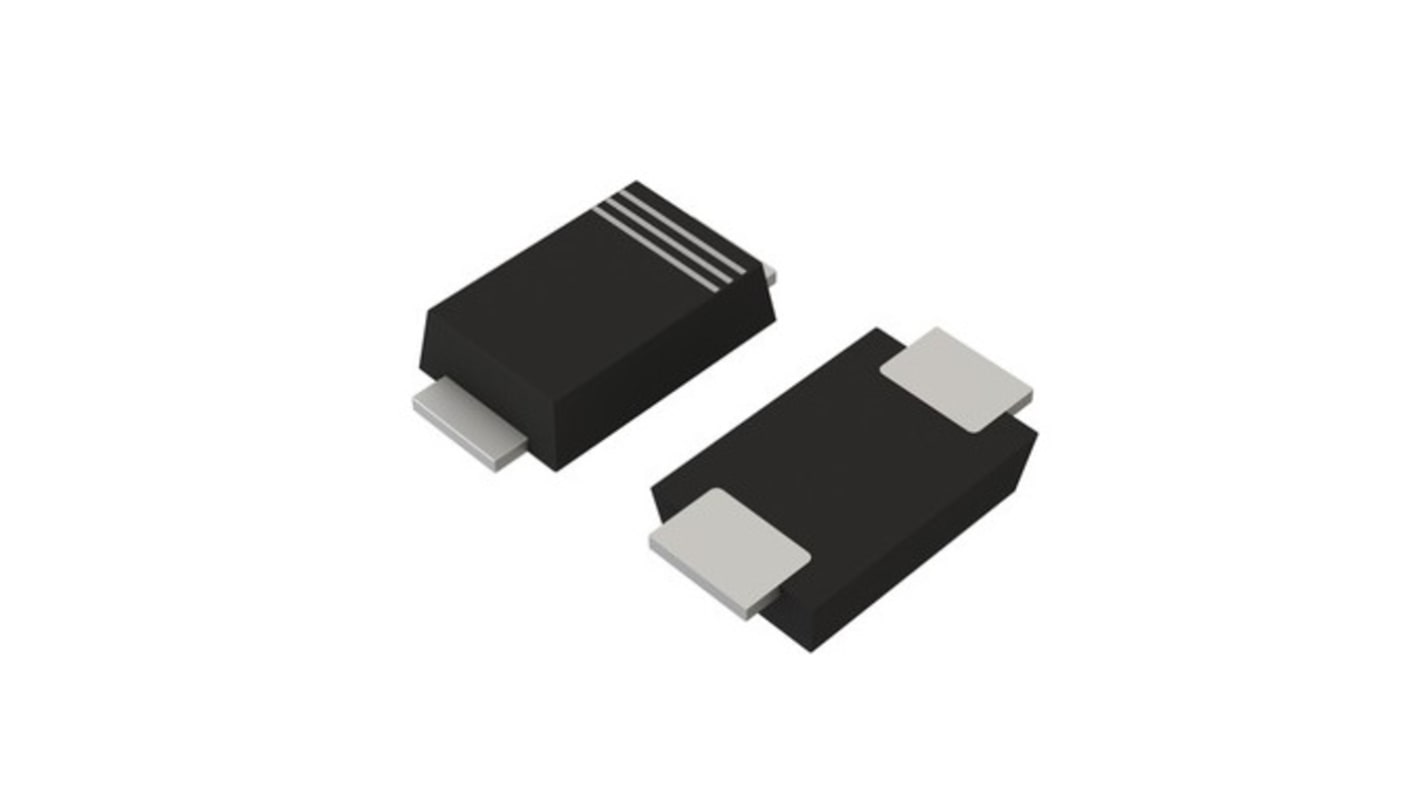

ROHM 40 V 2 A Diode Schottky 2-Pin SOD-128
- RS Stock No.:
- 215-9785
- Mfr. Part No.:
- RB068LAM-40TFTR
- Brand:
- ROHM
Subtotal (1 reel of 3000 units)*
£333.00
(exc. VAT)
£399.00
(inc. VAT)
FREE delivery for orders over £50.00
Stock information currently inaccessible
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.111 | £333.00 |
*price indicative
- RS Stock No.:
- 215-9785
- Mfr. Part No.:
- RB068LAM-40TFTR
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Mount Type | Surface | |
| Product Type | Diode | |
| Package Type | SOD-128 | |
| Maximum Continuous Forward Current If | 2A | |
| Peak Reverse Repetitive Voltage Vrrm | 40V | |
| Diode Configuration | Single | |
| Series | RB068LAM-40TF | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A | |
| Maximum Forward Voltage Vf | 0.69V | |
| Peak Reverse Current Ir | 1μA | |
| Maximum Operating Temperature | 175°C | |
| Length | 4.7mm | |
| Width | 2.5 mm | |
| Height | 0.95mm | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Mount Type Surface | ||
Product Type Diode | ||
Package Type SOD-128 | ||
Maximum Continuous Forward Current If 2A | ||
Peak Reverse Repetitive Voltage Vrrm 40V | ||
Diode Configuration Single | ||
Series RB068LAM-40TF | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 50A | ||
Maximum Forward Voltage Vf 0.69V | ||
Peak Reverse Current Ir 1μA | ||
Maximum Operating Temperature 175°C | ||
Length 4.7mm | ||
Width 2.5 mm | ||
Height 0.95mm | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q101 | ||
The Rohm 40V Schottky barrier diode having silicon epitaxial planar type structure. It has small mold type and mainly used in general rectification application.
High reliability
Super low IR
V schottky barrier diode having silicon epitaxial planar type structure. It has small mold type and mainly used in general rectification application.
