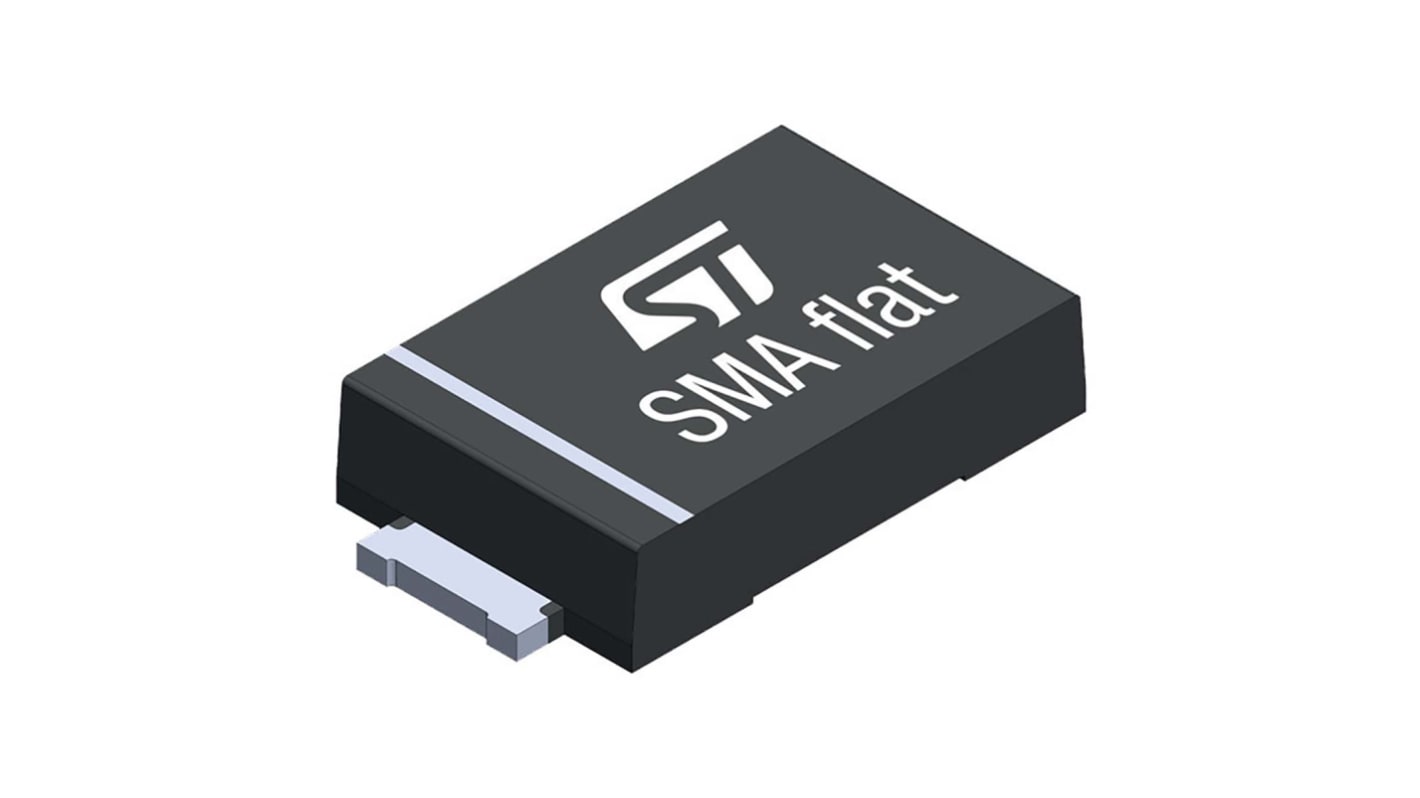

STMicroelectronics 25 V 2 A Diode Schottky 2-Pin SMA

View this category

Subtotal (1 reel of 10000 units)*

£720.00

(exc. VAT)

£860.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 29 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
10000 +£0.072£720.00

*price indicative

RS Stock No.:
203-3468
Mfr. Part No.:
STPS2L25AFN
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

Diode

Mount Type

Surface

Package Type

SMA

Maximum Continuous Forward Current If

2A

Peak Reverse Repetitive Voltage Vrrm

25V

Series

STPS2L25

Diode Configuration

Single

Rectifier Type

Schottky

Pin Count

2

Peak Non-Repetitive Forward Surge Current Ifsm

90A

Minimum Operating Temperature

-65°C

Peak Reverse Current Ir

30mA

Maximum Forward Voltage Vf

0.33V

Maximum Operating Temperature

175°C

Standards/Approvals

No

Length

4.6mm

Width

2.9 mm

Height

1.1mm

Automotive Standard

No

The STMicroelectronics single Schottky rectifier suited to switched mode power supplies and high frequency DC to DC converters. It is packaged in SMB, SMB flat for thermal resistance characteristic improvement, this device is especially intended for use in parallel with MOSFETs in synchronous rectification.

Very low forward voltage drop for less power dissipation

Avalanche capability specified

Optimized conduction and reverse losses trade-off which means the highest efficiency in the applications
